Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-17
TM-U200 Series (Type A/AM) Technical Manual
Confidential
Main Assembly 2
Tension plate assembly

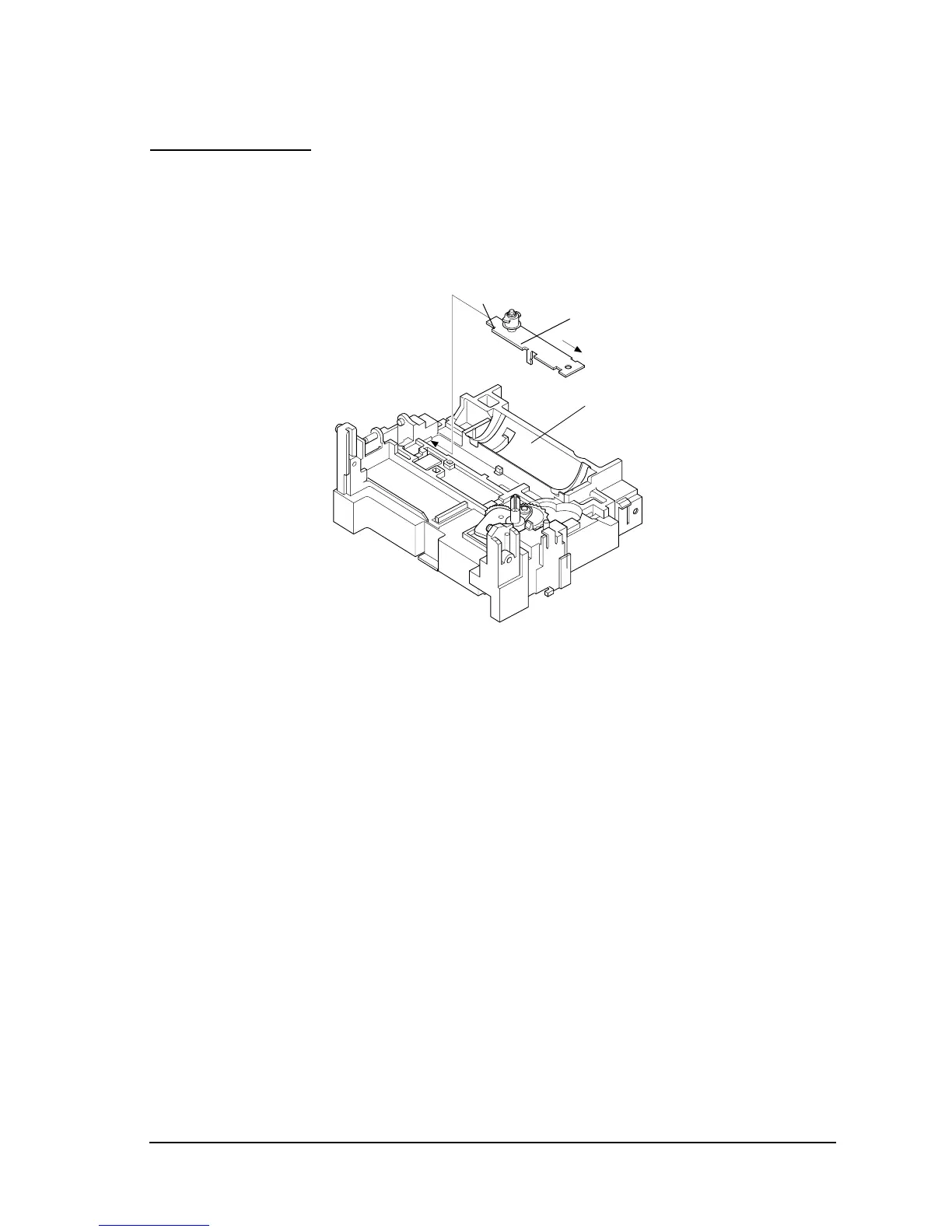

1. Insert the tab of the tension plate assembly into the base frame assembly; then slide the
tension plate in the direction of arrow 2 to lock it.
1
Tab
Tension plate assembly
Base frame assembly
2
