Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-9
TM-U200 Series (Type A/AM) Technical Manual
Confidential
Sub-assembly A

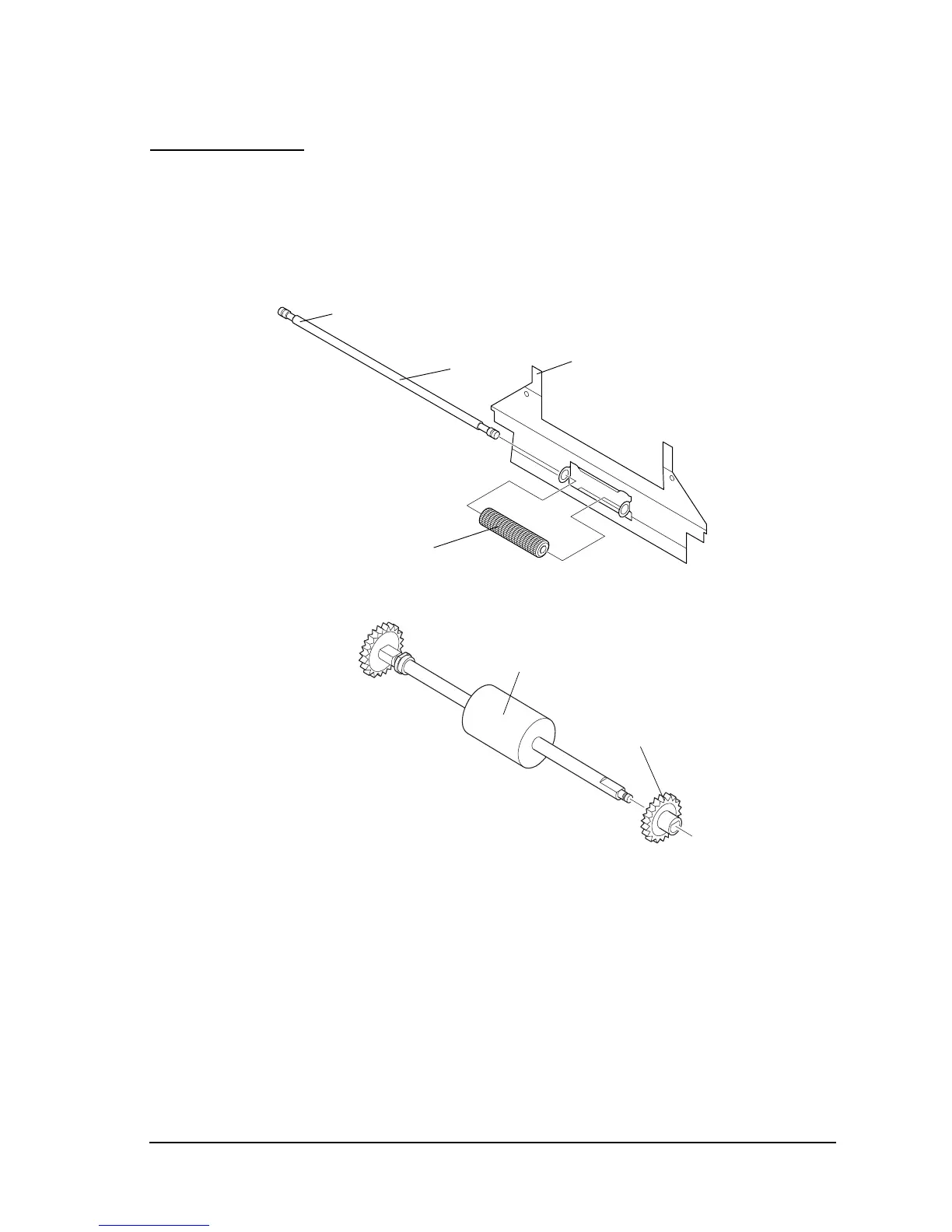

Paper feed frame unit assembly
1. Apply G-31 to the middle of the paper hold roller shaft.
2. Pass the paper hold roller shaft through the paper hold plate spring and paper hold roller.
3. Attach the take-up drive gear to the paper feed roller assembly.
Paper hold roller shaft
Apply G-31
Paper hold roller
Paper hold
plate spring
Take-up Drive gear
Paper feed roller assembly
