5-26 Disassembly, Assembly, and Adjustment Rev. A
Confidential
Main Assembly 11

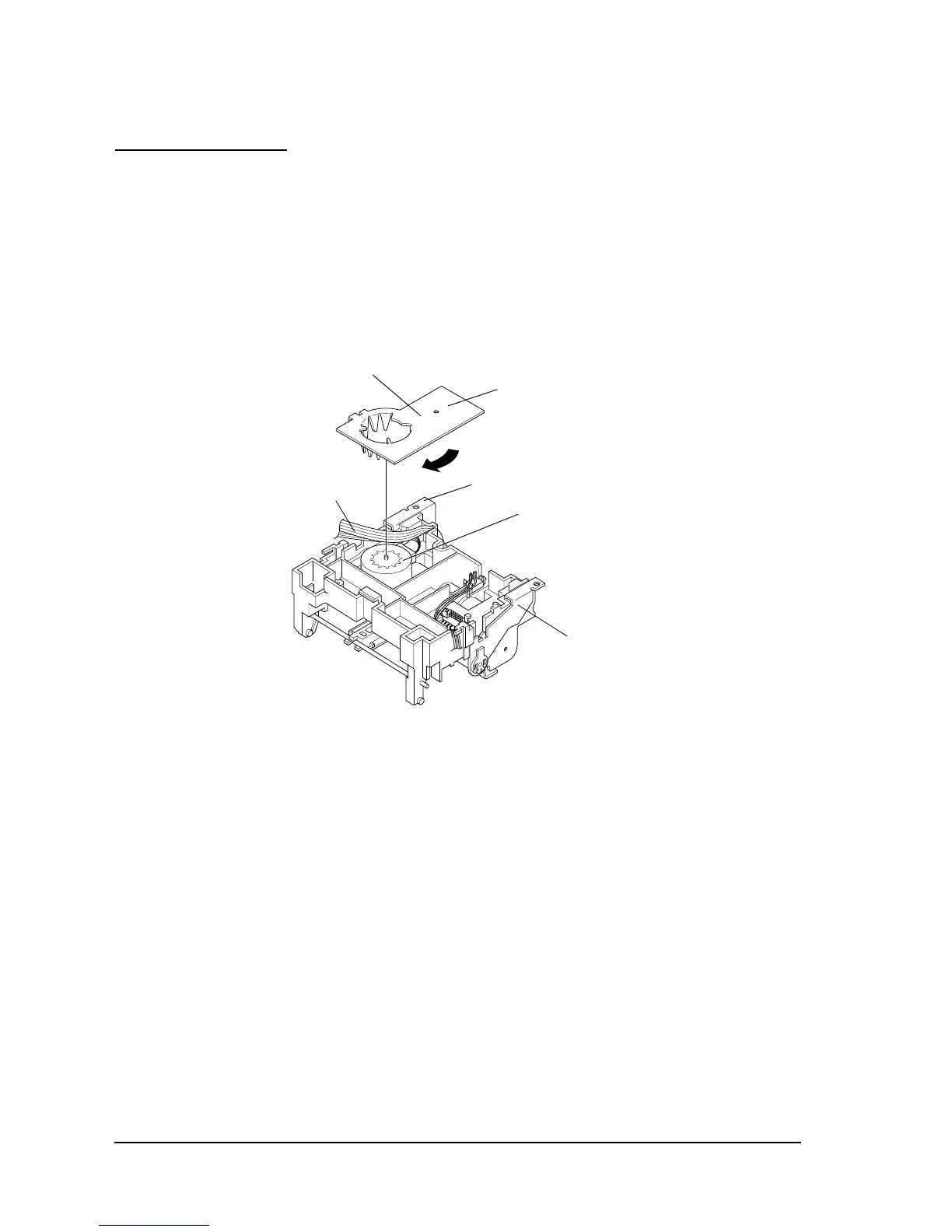

Carriage motor heat sink assembly
1. Attach the carriage motor heat sink to the carriage motor assembly, and turn the heat sink in
the direction of the arrow until it stops.
✓ Check that surface B of the carriage motor heat sink and surface A of the paper feed frame
are the same height. If not, adjust the heat sink to make the surfaces the same height. Check
that the motor cables are not caught on the heat sink
.
Carriage motor
Carriage motor
Motor cables
heat sink
assembly
To Next Page
