Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-27
TM-U200 Series (Type A/AM) Technical Manual
Confidential
Main Assembly 12
Print head FPC assembly
1. After folding the projections of print head FPC, insert the FPC under the arm of the base
frame assembly while fitting the projections with the arm.

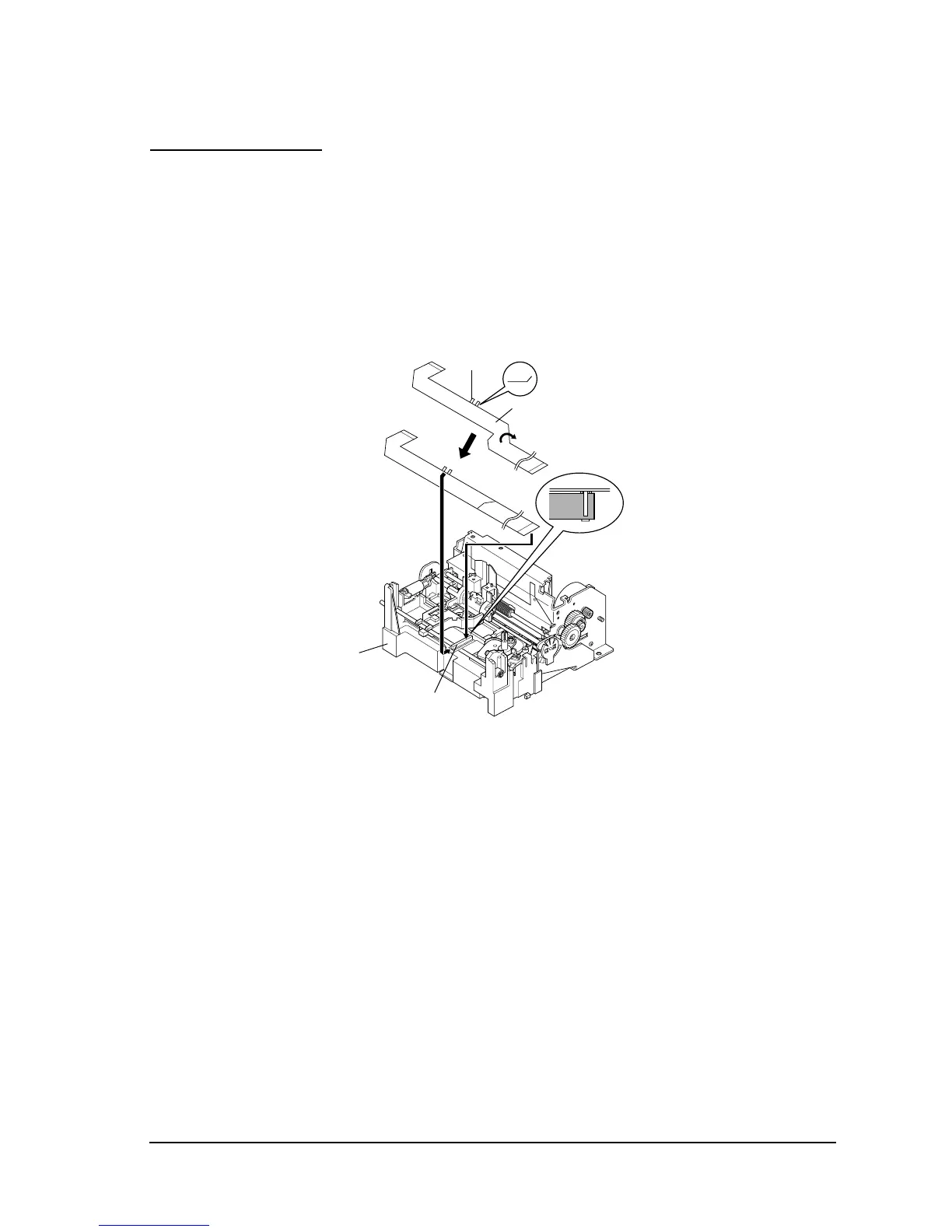

2. Fold the straight side of print head FPC. (See the figure.)
3. Pass the straight side of print head FPC through the slit in the base frame assembly
.
4. Pull out the print head FPC from the back of base frame assembly.
5. Adjust the print head FPC from the back of base frame assembly.
6. Pass the end of print head FPC through the guide of base frame assembly.
Arm section
Projection
Print head FPC
Straight side
Base frame assembly
Arm
