5-40 Disassembly, Assembly, and Adjustment Rev. A
Confidential

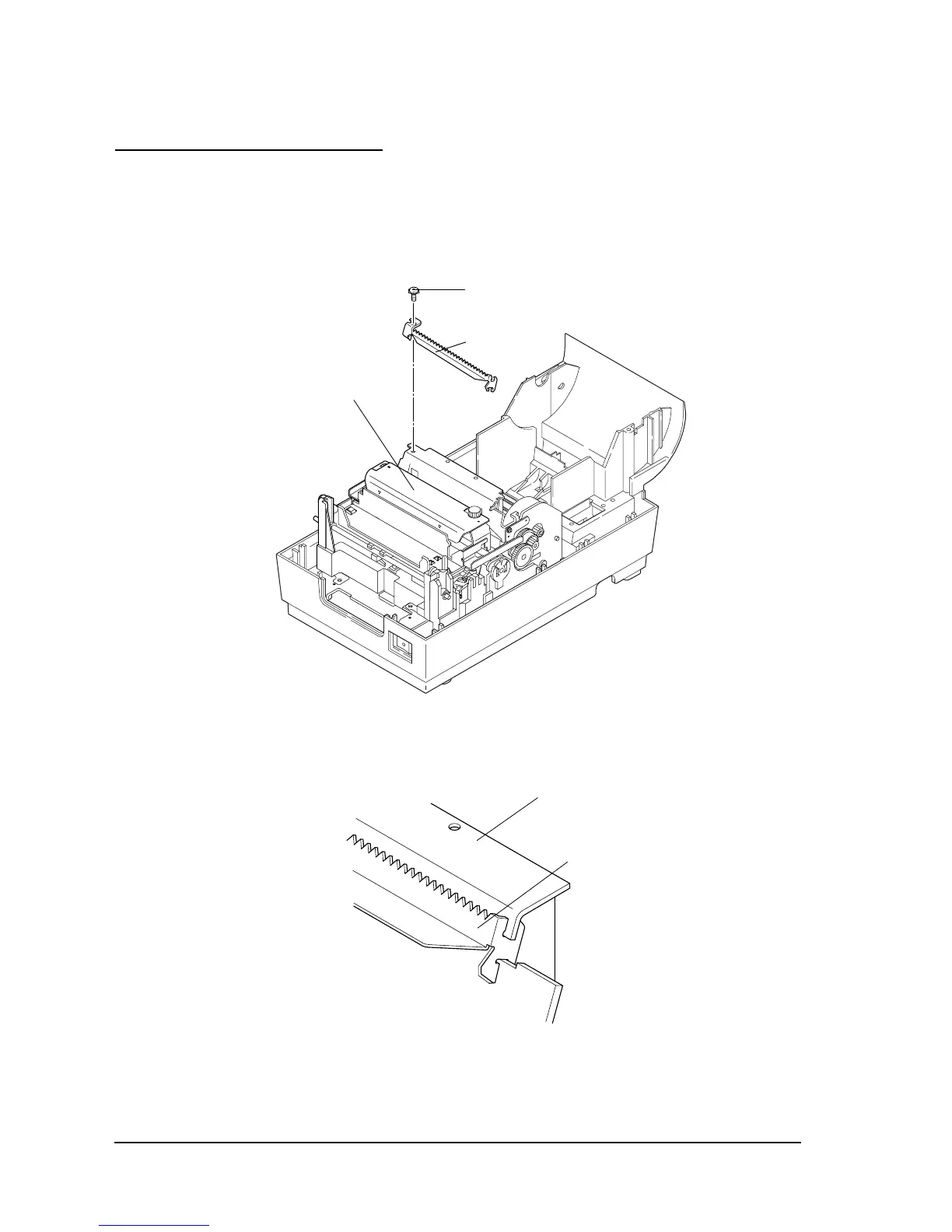

Main Assembly 6 (Case Unit)
Manual cutter assembly, take-up belt and auto-cutter fixing plate
1. Attach the manual cutter to the paper feed frame assembly and secure it with the screw.
✓ Check that the manual cutter is aligned with the paper feed frame as shown in the
illustration below.
Paper feed frame
Manual cutter
CBS-tite (M3x5)
[0.69 to 0.8 N • m
[7 to 9 kgf • cm)]
To Next Page
