Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-51
TM-U200 Series (Type A/AM) Technical Manual
Confidential
Main Assembly 10 (Case Unit)

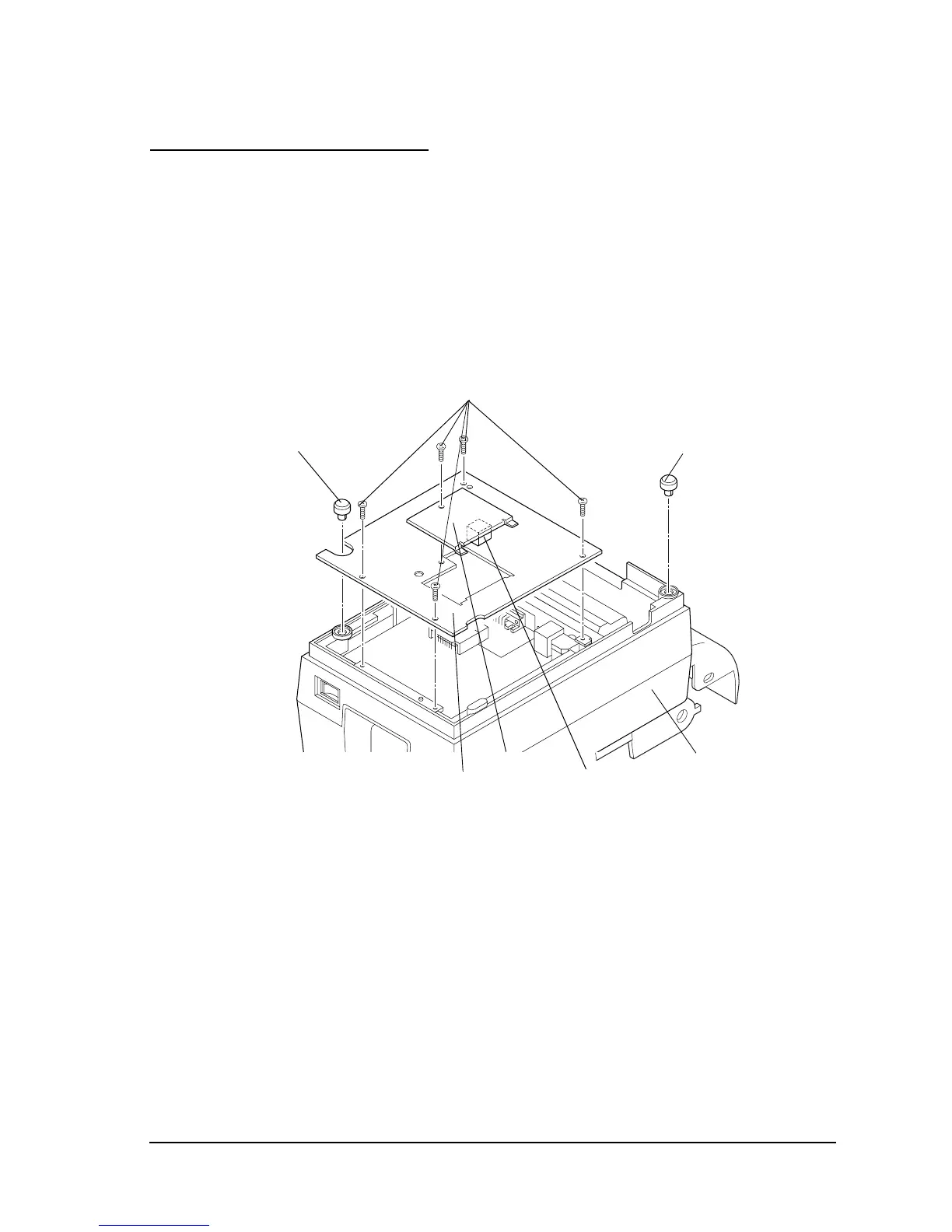

Lower plate, ROM cover, and rubber foot assembly
1. Attach the lower plate to the lower case and secure it with the screws.
2. Attach the ROM cover to the lower plate and secure it with the screws.
3. Attach the rubber feet to the lower case. For the rubber foot attached to the front of the
printer, turn the foot lightly until it stops.
CPS-tite (M3x6)
[0.59 to 0.78 N • m
(6 to 8 kgf • cm)]
Rubber foot
Lower case
ROM cover
ROM spacer
Lower plate
Rubber foot
(at the front
of the printer)
