Loosen the chuck by hand while turning it towards you.
Remove the drill bit and replace it with the necessary one, by putting it to the stop at the back of the chuck.
Tighten the chuck by hand.
Remove the keys and press .
Turn the edger off then on again.

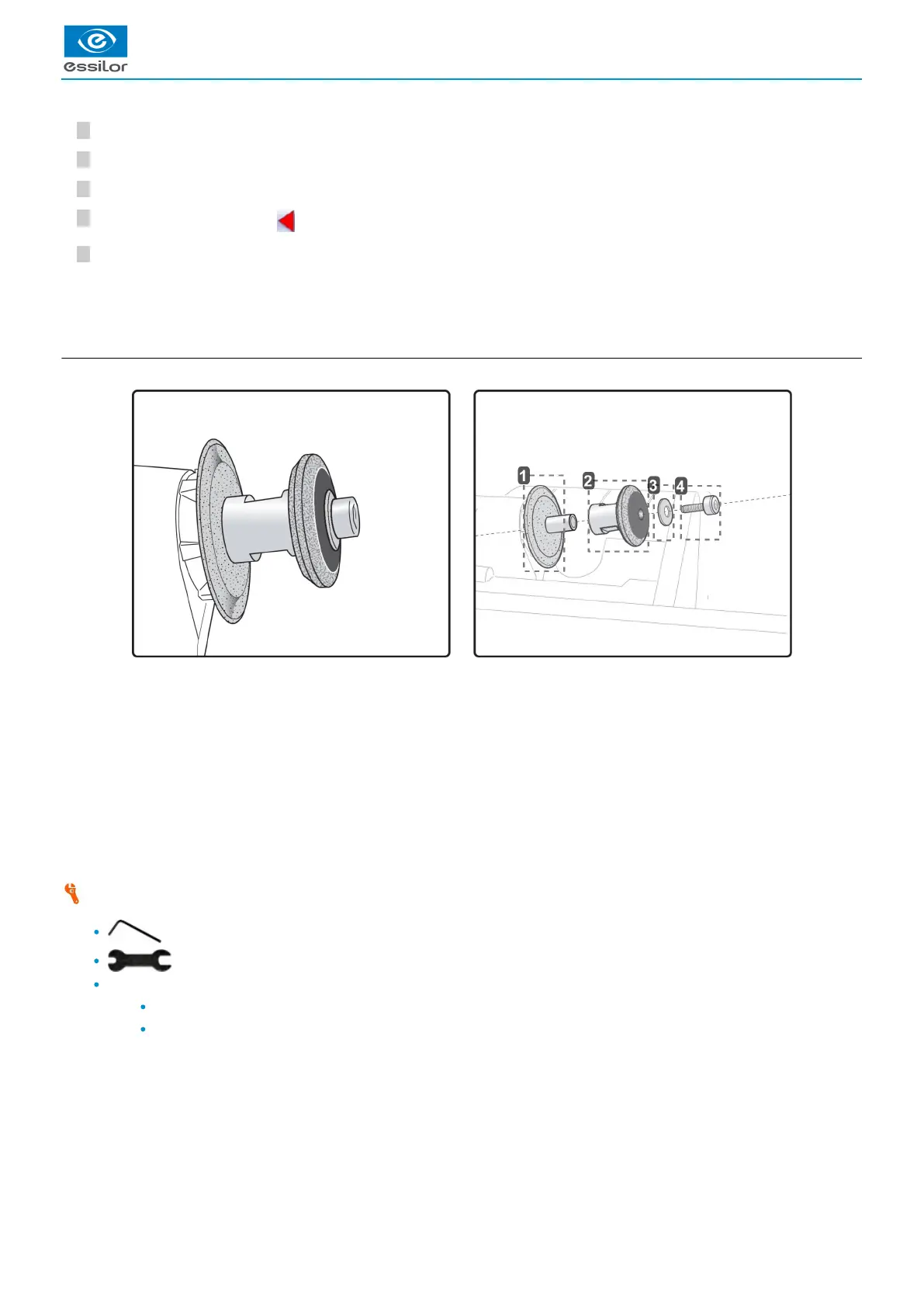

b. Changing the grooving or chamfering wheel
Wheel shaft
Grooving wheel
The boss is turned towards the right.
Chamfering wheel
It is equipped with a positioner to prevent incorrect insertion.
Trimaterial chamfering wheel (option)
May be ordered, for chamfering glass lenses.
Washer
Nut
We recommend that you change the grooving and chamfering wheels every 5,000 grooves or chamfers.
Have the following to hand:
Allen key
Open-ended spanner
Wheel(s) to be replaced:
Grooving wheel
Chamfering wheel
The edger resets itself and the module repositions itself.>
The wear statistics of the replaced tool are reset to zero.>
