1.
2.
3.
4.
5.
6.
7.
8.
9.

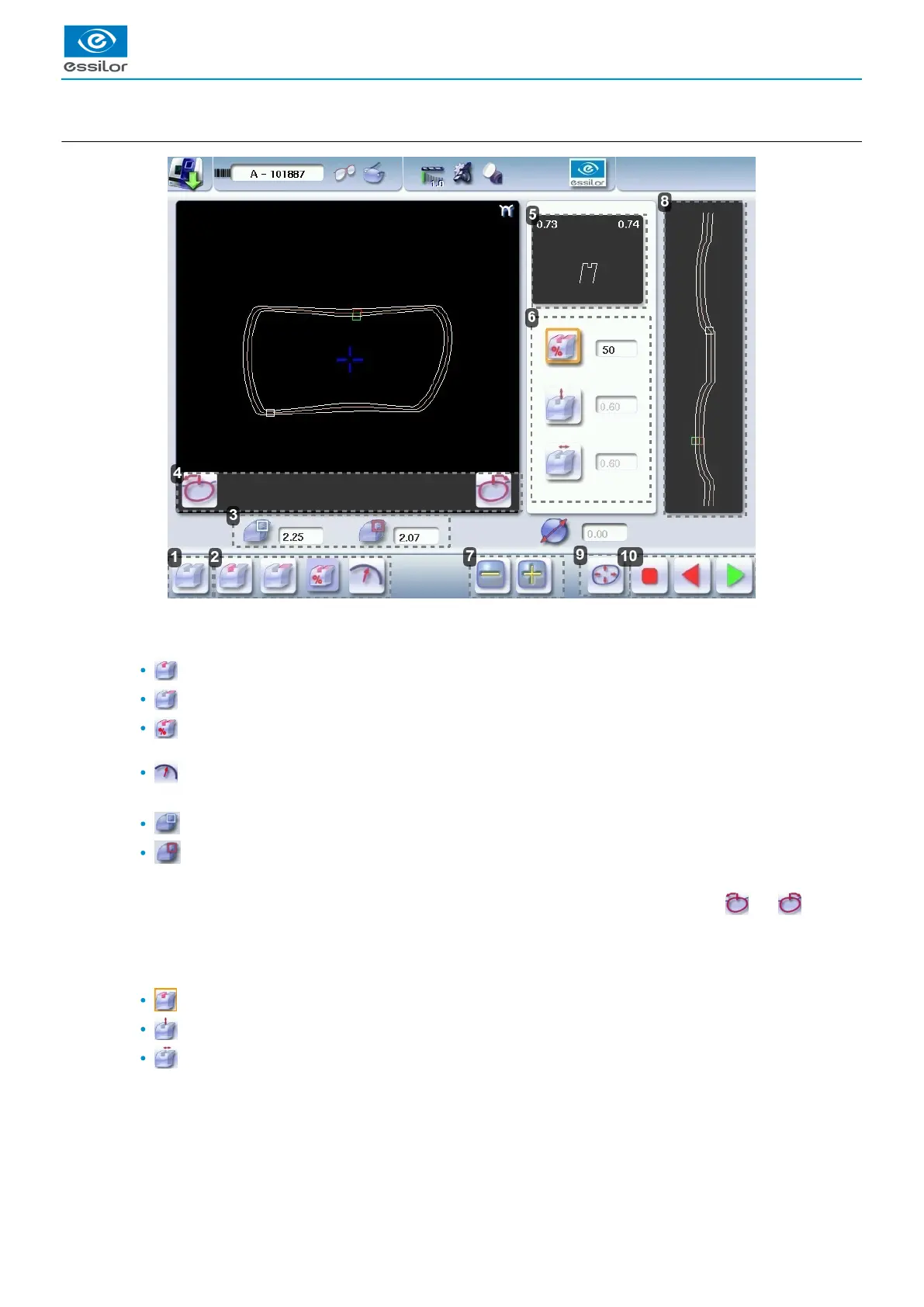

b. Customized groove legend screen
Automatic groove
Customized grooves
Front surface tracking: the middle of the groove is positioned at a constant distance from the front surface.
Rear surface tracking: the middle of the groove is positioned at a constant distance from the rear surface.
Distributed groove: the middle of the groove is positioned in proportion to the thickness of the lens, with respect
to the front surface.
Lens curve tracking: the camber of the groove is adjustable.
Lens thickness
Maximum lens thickness - represented by the white square along the shape
Minimum lens thickness - represented by the red square along the shape
Cursor movement
The cursor is represented by the green square along the shape. To move it, select it directly or use the and buttons.
Zoom window
Distance between the edges of the groove and the front & rear surfaces of the lens at the position of the cursor.
Groove settings
Distribution value - according to the type of customized groove selected
Groove depth (in mm)
Groove width (in mm)
Modify the selected setting
Groove trajectory
Flat representation of the lens making it possible to measure the distances between the groove and the front & rear surfaces
of the lens.
