FEASA LED ANALYSER
FUNCTIONAL VERSION
Get Data Mode
get7SEG# - Get the value of a 7 Segment Display
Transmit Receive
get7seg# x
Where:
# represents the Number 1 or 2
x represents the value of the display 0 - 9
Description
The LED Analyser can be used to test LED-based 7-Segment displays. To set up the LED
Analyser to interrogate a single 7-Segment display, fit fibers labelled 1 to 7 over segments a-g
on the 7-Segment display. See Figure 28 .
To set up the LED Analyser to interrogate an additional 7-Segment display, fit fibers labelled
11 to 17 over segments a-g on the additional display.
To interrogate the digit displayed on the first 7-Segment Display send the command get7seg1
to the LED Analyser. The LED Analyser will return the digit displayed. The LED Analyser will
return the character X when the displayed value is not recognized (0 to 9).
To interrogate the digit displayed on the second 7-Segment display send the command
get7seg2 to the LED Analyser. The LED Analyser will return the digit displayed. Again, the
LED Analyser will return the character X when the displayed value is not recognized (0 to 9).
Note:- it is not necessary to send any capture commands prior to using the get7seg1 or
get7seg2 commands.

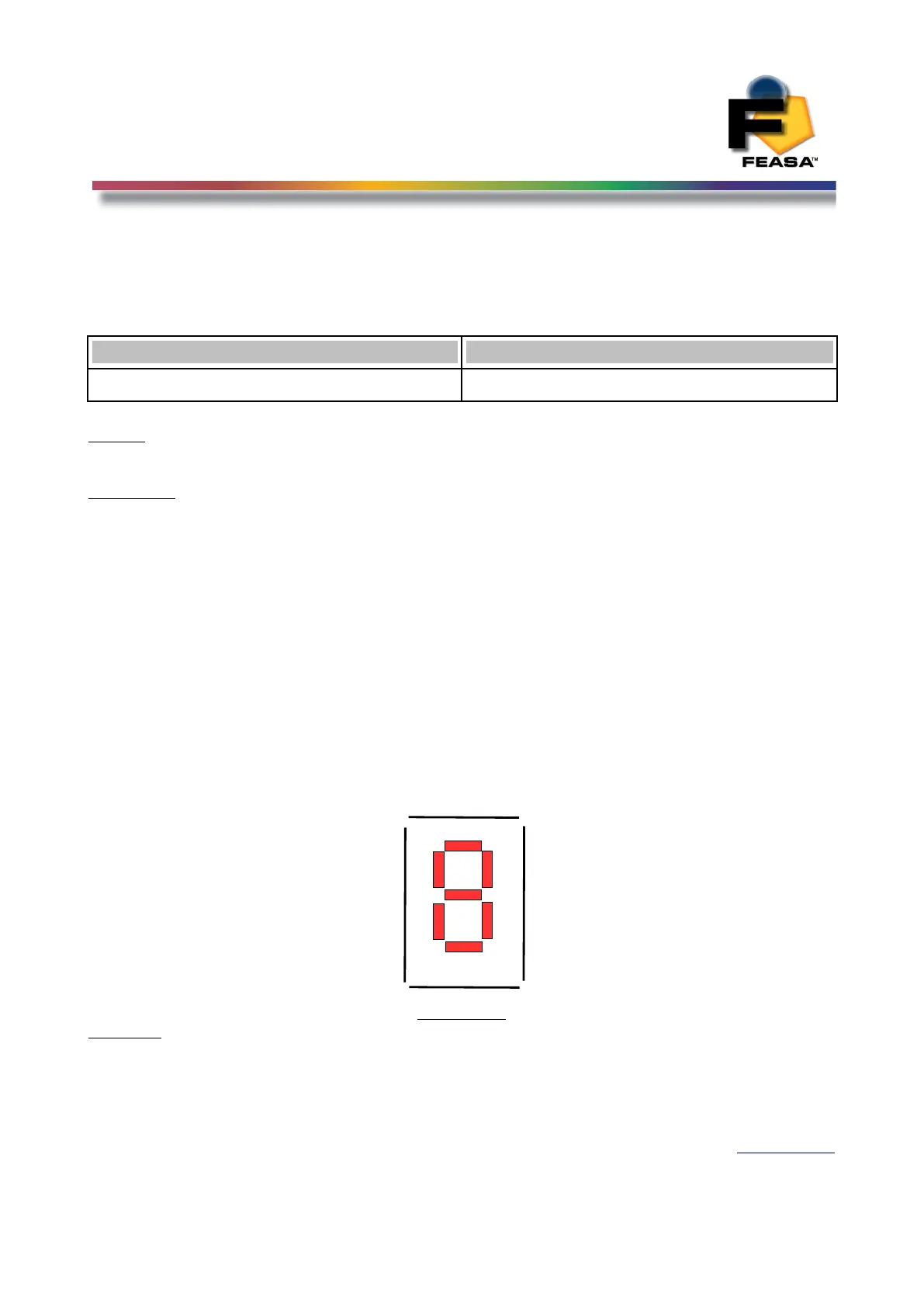

Figure 28.
Example:
The PC transmits get7seg1 to the LED Analyser and the Analyser will return the value of the
display.
get7seg1
6
Back to Index
39
b
c
d
e
f
g
a
