6.3 Peripheral Equipment
6-11
Chap. 6 SELECTING PERIPHERAL EQUIPMENT
[ 2 ] Surge killers
A surge killer eliminates surge currents induced by lightning and noise from the power supply lines. Use
of a surge killer is effective in preventing the electronic equipment, including inverters, from damage or
malfunctioning caused by such surges and/or noise.
The applicable model of surge killer is the FSL-323. Figure 6.3 shows its external dimensions and a
connection example. Refer to the catalog "Fuji Noise Suppressors (SH310: Japanese edition only)" for
details. These products are available from Fuji Electric Technica Co., Ltd.

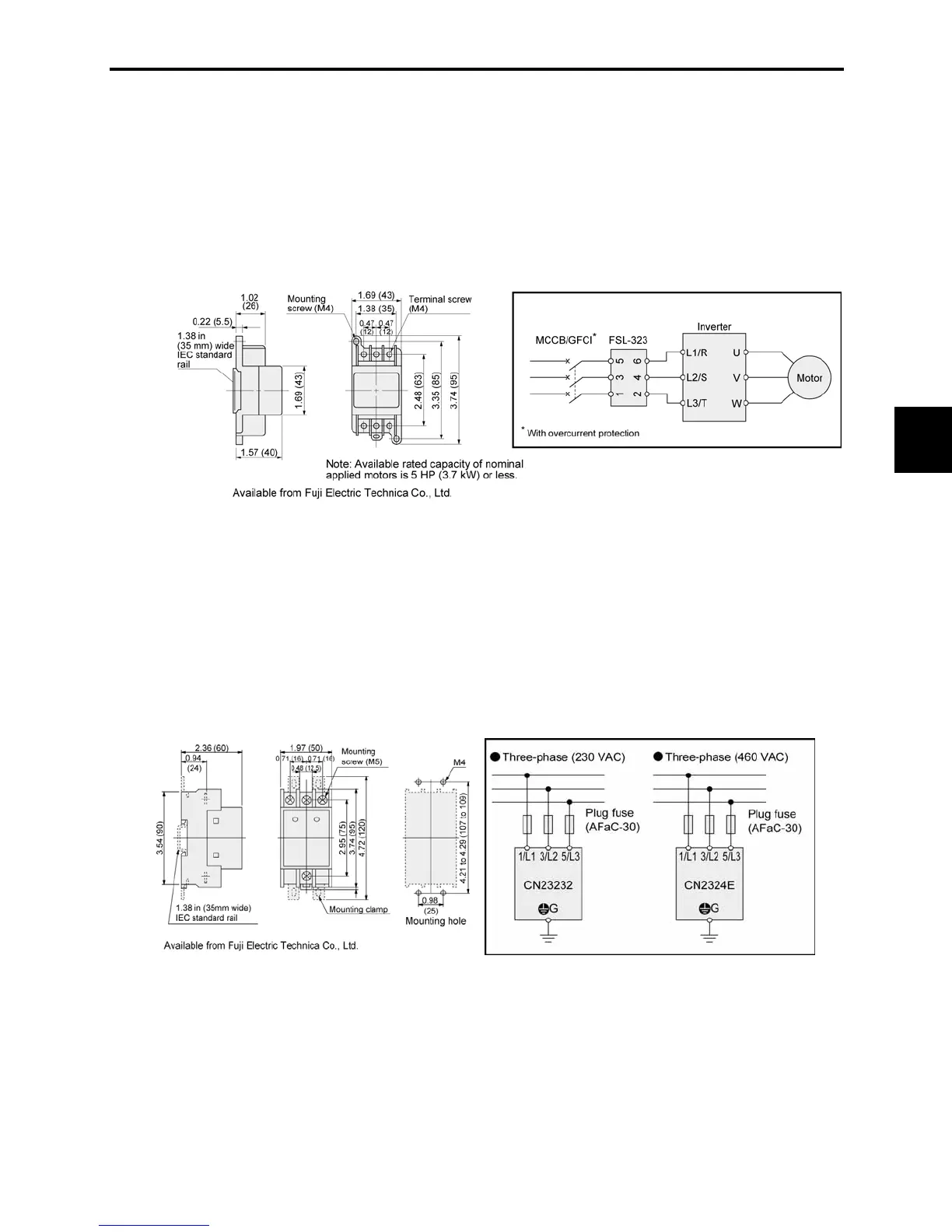

Figure 6.3 Dimensions of Surge Killer and Connection Example
[ 3 ] Arresters
An arrester suppresses surge currents and noise invaded from the power supply lines. Use of an arrester is
effective in preventing electronic equipment, including inverters, from damage or malfunctioning caused
by such surges and/or noise.
Applicable arrester models are the CN23232 and CN2324E. Figure 6.4 shows their external dimensions
and connection examples. Refer to the catalog "Fuji Noise Suppressors (SH310: Japanese edition only)"
for details. These products are available from Fuji Electric Technica Co., Ltd.
Figure 6.4 Arrester Dimensions and Connection Examples
[Unit : inch (mm)]
[Unit : inch (mm)]
