8.2 Models Available on Order
8-7
Chap. 8 SPECIFICATIONS

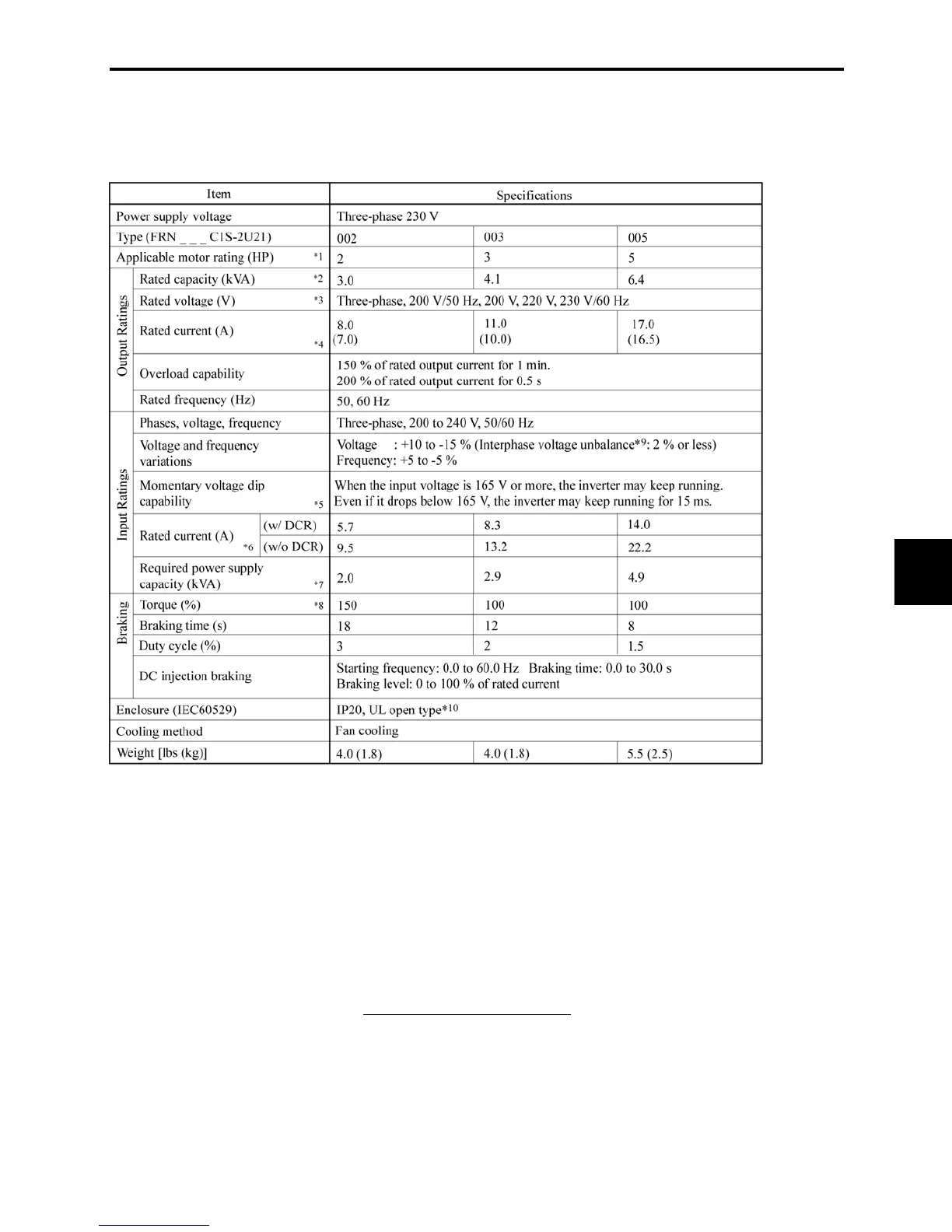

8.2.2 Braking resistor built-in type
8.2.2.1 Three-phase 230 V
*1 Fuji 4-pole standard motors
*2 The rated capacity is for 230 V output voltage.
*3 Output voltages cannot exceed the power supply voltage.
*4 Use the inverter at the current given in ( ) or below when the carrier frequency is higher than 4 kHz (
H
=

to

) or the ambient temperature is 40qC (140qF) or higher.
*5 Tested under the standard load condition (85% load for applicable motor rating).
*6 Calculated under Fuji-specified conditions.
*7 Indicates the value when using a DC reactor (option).
*8 Average braking torque obtained with the AVR control off (
H
=

). (Varies according to the efficiency
of the motor.)
*9
(5.2.3))3-61800IEC(Refer to67
(V) voltageaveragephase-3
(V)eMin.voltag-(V)eMax.voltag
(%)unbalancevoltageInterphase u=
If this value is 2 to 3 %, use an AC reactor (ACR).
*10 Making FRENIC-Mini conform to category TYPE1 of the UL Standard (or NEMA1) requires an optional
NEMA1 kit. Note that the TYPE1-listed FRENIC-Mini should be used in the ambient temperature range
from -10 to +40qC (+14 to +104qF).
