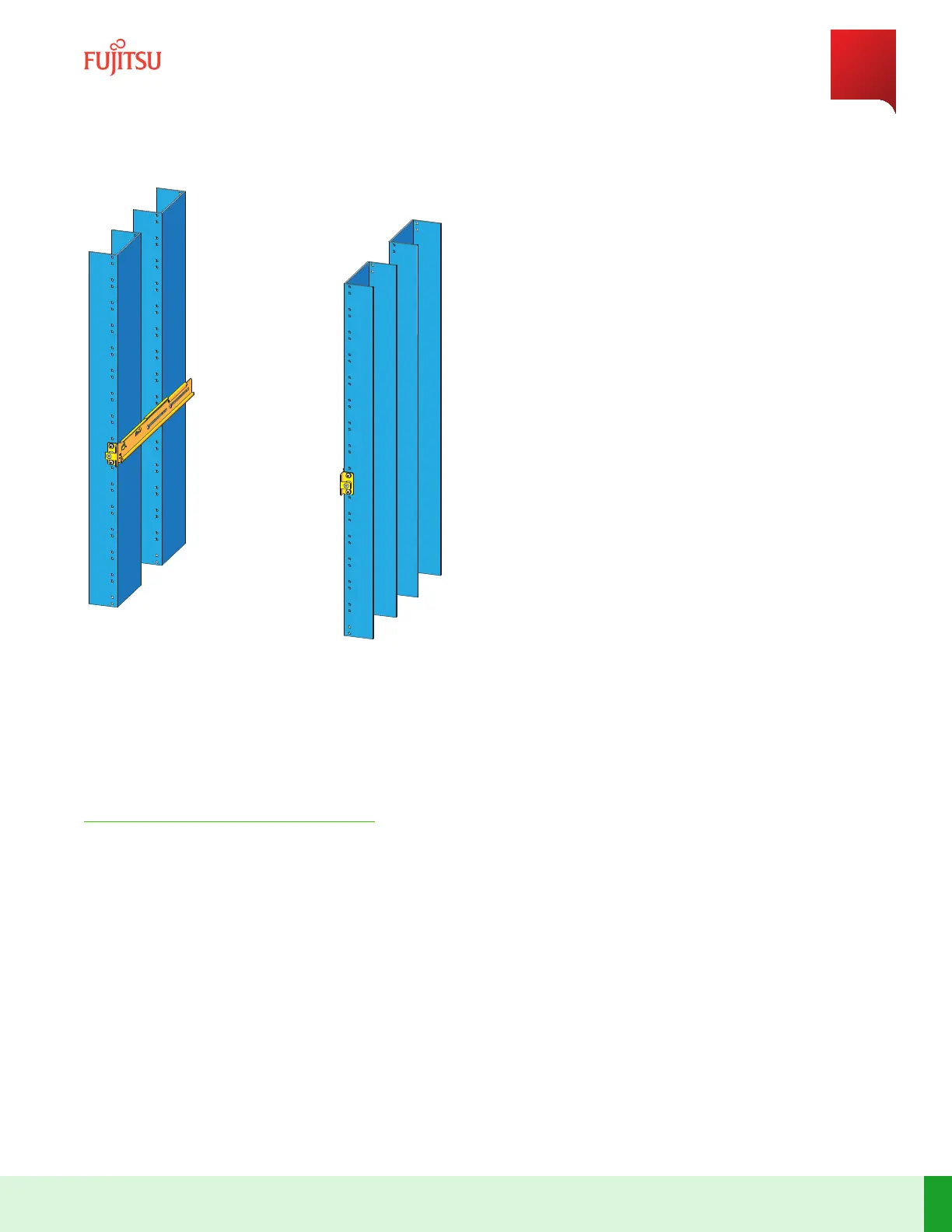

s8102an_1
Figure 51
Installed 19-Inch, 4-P
ost Rack Br
ackets
Step Result:
The blade can be inst
alled in the r
ack.
✓
 
This task is complet
e.
Equipment Installation
Install 19-Inch, 4-P
ost Rack Rail Kit
124
Release 19.1.1
·
Issue 1.1, Ma
y 2021
Fujitsu and Fujitsu Customer Use Only
123
125
Table of Contents
Table of Contents
2
System Description and Engineering
26
System Profile
27
Overview
27
ROADM Applications
29
Colorless Directionless ROADM Application
29
Colorless (Direct Access) ROADM Application
31
MIX Configuration ROADM Application
32
Virtual Network Element Using Vmcu Hosted on Main Blade
33
Interoperability with FLASHWAVE 9500
35
Interoperability with 1FINITY L130
36
ROADM Features
37
System Features
41
Autoprovisioning
41
Multicommand Configuration Commit
41
In-Service Upgrade
42
Proxy ARP
43
Scripting Automation-Python
43
Secure Copy
43
System Zeroization
44
Root Access
44
CONSOLE Port
44
Configurable Log Files
44
Jumbo Frame Support with IP MTU Maximum 9574 Bytes
45
Postoutadj
45
OSC Power Adjustment
46
Critical Data Storage Feature
46
Automatic Software Download
46
Tributary Auto Shelf ID Assignment
46
Management Interfaces
48
Command Line Interface Webgui Virtuora NC
48
Management Protocols
50
Netconf
50
Simple Network Management Protocol
50
System and Network Services
51
FTP and SFTP HTTP and HTTPS
51
Network Timing Protocol
51
Remote Authentication Dial-In User Service
51
Rest Api
52
Secure Shell
52
Streaming Telemetry
52
Syslog (RFC 5424)
52
Zero Touch Provisioning
53
Access Control List
53
Telnet
53
Terminal Access Controller Access-Control System Plus
53
Engineering Specifications
55
Optical Signal-To-Noise Ratio Specifications
55
L100 Specifications
56
L110 Specifications
57
L160 Specifications
58
4X16 Splitter/Coupler Specifications
59
Pluggable Transceiver Modules
60
Power Specifications
60
1FINITY Housing
60
C-Band Fequencies and Wavelengths
61
Unit Description
62
Technical Specifications
63
L100 Blade
65
Connector Descriptions
66
LED Descriptions
68
L110 Blade
71
4X16 Splitter/Coupler PIU
74
L160 Raman Amplifier
77
Fan Unit
81
L100 Fan Unit L160 Fan Unit
81
Power Terminal Adapter
85
CD ROADM Cabling
87
Ordering Information
92
Blade and PIU
93
Installation Hardware
94
SFP Module
96
LC/UPC Attenuator
97
Individual Licensed Feature
99
Software
100
Equipment Installation
101
Precautions
102
Site Selection
103
Unpack and Inspect Equipment
104
Adjustable Range of Rack Brackets
106
Install 19-Inch, 2-Post Rack Rail Kit
107
Install 23-Inch, 2-Post Rack Rail Kit
113
Install 19-Inch, 4-Post Rack Rail Kit
119
Install 23-Inch, 4-Post Rack Rail Kit
125
Install Power Terminal Adapter
131
Install Blade in Housing
136
Rectifier and Blade Wiring Connections
139
Install Power Cables
141
Install Fan Unit
146
Install Plug-In Unit
148
Install SFP Module
151
Install Filler Panel
152
Install Data Communication Network Cabling
154
Install Local Management Port Cabling
155
Install CD ROADM Cabling
156
Install L160 Raman Cabling
157
Initial System Turn up
159
Log on
160
Set up Main Blade (Initial)
162
Set WDM Configuration
164
CONSOLE Port (Serial Port)
165
Enable/Disable CONSOLE Logon
165
CONSOLE Log
166
Configure OSPF Routing
168
Configure IP Connection to DCN
169
Configure LCN1 with Static IP Address
170
Set Static IP Address on LCN1
171
Configure Next-Hop
171
Connect LCN1 to DCN
172
Configure LCN1 with DHCP
173
Configure Next-Hop
174
Connect LCN1 to DCN
175
Identify IP Address Assigned to LCN1 by DHCP
175
Configure IP Connection through OSC
176
Configure NEM Interface
180
Configure IP Interfaces for OSC Links
180
Configure OSPF Routing
182
Log on NE through LMP
183
Provision Main Blade Ports and Fan Units
185
Enable Auto Shelf ID Assignment for Tributary Blade Feature
188
Set up Tributary Blade with Auto Shelf ID Assignment Enabled
189
Set up Tributary Blade Without Auto Shelf ID Assignment Enabled
191
Provision L100 Tributary Blade and Ports
192
Provision L110 Tributary Shelf, Ports, and Slots
195
Provision L160 Tributary Blade
197
Verify Blade Setup
199
Set ROADM Constraints
200
System Administration
201
Default Settings and IP Port Information
202
About CLI
204
CLI Operational Mode
204
CLI Configuration Mode
205
CLI Command Prompts
207
User Guide CLI Command Prompt Convention
207
CLI User Permissions
208
CLI Command Completion
208
CLI Command Comments
209
CLI Messages
209
System Name
211
System Time and Date
212
Show System Time and Date
212
Set System Time and Date Manually
212
Configure NTP
212
Configure System Time Zone
213
ILF Administration
215
System Feature Administration
216
Autop
216
Rasis
216
Nemgmtmode
217
Telemetry, Streaming
218
Ztp
218
ZTP-Boot
219
Zeroize System
219
Configure AINS
221
User Administration
223
Password Rules
223
Username Rules
225
User Group Permissions
225
Create/Edit/Delete User
226
Show Users
227
Change User Password
227
CLI Session Administration
228
Enable/Disable CLI Complete-On-Space
228
Change Idle Timeout
228
Force Logoff
228
Security Administration
229
SSH Server Service Host Keys
229
Systemwide Security Settings
229
Default User Security Settings
230
User Login and Authentication Log
230
RADIUS Authentication
230
TACACS+ Authentication
231
Syslog Administration
233
Provision Proxy-ARP
235
LCN Port Commands
238
Default Gateway Commands
239
System Services
240
Show System Services
240
FTP Server Service
241
NETCONF Service
242
SFTP Server Service
242
SNMP Agent Service
243
SSH Server Service
244
Telnet Server Service
245
Web Server Services
245
Web Services
246
HTTP Server Service
246
HTTPS Server Service
247
REST API Service
248
Webgui Service
248
Log on NE with Webgui
249
FTP/SFTP File Transfer, Client Session
250
Logon from NE to Remote Host
252
Telnet Client Session SSH Client Session
252
ROADM Turn-Up and Operations
253
Enable Flexible Grid
254
Enable OSNR for Main Blade
255
Provision Raman Port Connections
256
Provision L100 Main Blade OTS/OMS/OCH Interfaces
257
Set 100 Mb/S OSC Power Pad
259
Provision Direct Access (Colorless) Channels
261
Provision L110 Tributary Blade OCH Interfaces
262
Link PIL1-3PS2 Client Port to Transponder/Muxponder Edge Port
263
Provision Add/Drop Port Connections
264
Provision Cross-Connects
265
Adding Degree to ROADM Node
266
Provision L100 Tributary Blade and Ports
266
Provision Add/Drop Port Connections
266
Provision L100 Tributary Blade OTS/OMS/OCH Interfaces
268
Provision Add/Drop Port Connections
269
Provision Cross-Connects
270
Adding L110 Blade to ROADM
271
Provision L110 Tributary Shelf, Slots, and Ports Using Webgui
271
Provision L110 Tributary Blade OCH Interfaces
274
Provision Add/Drop Port Connections
275
Provision Cross-Connects
275
Adding Raman Blade to ROADM Node
277
Provision Raman Port Connections
277
Provision L100 Blade for FLASHWAVE 9500 Interoperability
279
Reprovision L100 Blade for FLASHWAVE 9500 Interoperability
281
Interoperability with L130 Blade
282
System Maintenance
283
Trouble Clearing
284
L100 Blade LED Indicators
284
L110 Blade LED Indicators
287
L160 Blade LED Indicators
289
PIL1-3PS2 PIU LED Indicators
293
Retrieve Alarms and Pms
294
Alarms and Conditions
294
Administrativedown
295
Backwarddefectindication
297
Biterrorratesignaldegrade
298
Biterrorratesignalfail
298
Certificatenotinstalled
299
Databasecorruption
299
Databaselockeddbalarmpresent
299
Databaselockeddbrestoreinprogress
300
Databaselockedilfviolation
300
Databaselockedshelfprovmodepresent
300
Databaselockedsoftwareupgradeinprogress
301
Databaseversionmismatch
301
Equipmentcurrexceededfeed
301
Equipmentfault
302
Equipmentinterconnectfailure
303
Equipmentledon
304
Equipmentmiscabledconnection
304
Equipmentmismatchattributes
304
Equipmentremoved
308
Equipmentshelfprovisioningmode
310
Equipmentwarmup
310
Fancoolingfail
311
Firmwarebackwardcompatibleall
311
Firmwaredownloadoractivationfailure
312
Firmwareinitinprogress
312
Firmwareversionmismatch
313
Forwarddefectindication
313
Ilfviolationcritical
314
Ilfviolationmajor
314
Incompatiblefirmware
315
Incompatiblehardware
315
Ipnotreachable
315
Ippingrequesttimedout
316
Ipreachable
316
Lamptest
316
Linkdown
316
Lldpfail
317
Lossofsignal
317
Lossofsynchronization
319
Modemismatch
319
Openconnectionindication
319
Osccontrolfailure
320
Oscmodemismatch
320
Oscpoweroutofspecificationhigh
320
Oscpoweroutofspecificationlow
321
Osnrmodemismatch
321
Otsspanlosspoweroutofspecificationhigh
321
Otsspanlosspoweroutofspecificationlow
322
Payloadmissingindication
322
Portlossoflight
322
Postblockautopowerreduction
324
Postblockautoshutoffdisabled
324
Postblockmanuallasershutdown
324
Postblockspanadjustmentinprogress
325
Poweroutofspecificationhigh
325
Poweroutofspecificationlow
328
Powerproblema
330
Powerproblemb
331
Preblockspanadjustmentinprogress
332
Reflectiontoohigh
332
Shelfprovisioningmode
332
Softwarereset
333
Softwarestageinprogress
333
Softwareversionmismatch
333
Sysnamechanged
334
Sysntpnotsynchronized
334
Thresholdcrossingalertcodingviolation
334
Thresholdcrossingalerterroredseconds
335
Thresholdcrossingalertopticalreceivepowertoohigh
335
Thresholdcrossingalertopticalreceivepowertoolow
336
Thresholdcrossingalertopticaltransmitpowertoohigh
336
Thresholdcrossingalertopticaltransmitpowertoolow
337
Thresholdcrossingalertoscopticalreceivepowertoohigh
337
Thresholdcrossingalertoscopticalreceivepowertoolow
338
Thresholdcrossingalertoscopticaltransmitpowertoohigh
338
Thresholdcrossingalertoscopticaltransmitpowertoolow
338
Thresholdcrossingalertseverelyerroredseconds
339
Thresholdcrossingalertspanlossvariationtoohigh
339
Thresholdcrossingalertspanlossvariationtoolow
339
Trailtracemismatch
340
Unequippedindication
340
Ztpbootfailure
340
Ztpbootinprogress
341
Secondary Database Alarms and Events
341
LED Control
344
Performance Monitoring Counters
345
Equipment Replacement
361
Replace Fan Unit
361
Replace Plug-In Unit
362
Replace SFP Module
366
Replace Blade in Rack
368
Replace Tributary Blade with Tributary Auto Shelf ID Assignment Enabled
386
Replace Blade in Housing
402
Upgrades
412
Upgrade System Software and Firmware
412
Backup and Restore
415
Back up Configuration Database
415
Restore Configuration Database
415
Secondary Database Via USB Flash Drive
417
Enable/Disable Secondary Database
418
Install USB Flash Drive
419
Restore Secondary Database from USB Flash Drive
420
Equipment Removal
423
Remove Filler Panel
424
Remove SFP Module
425
Remove Plug-In Unit
427
Remove Fan Unit
430
Remove Power Cables
433
Remove Blade from Rack
436
Remove Blade from Housing
442
A Load Configuration Operation
448
Load Configuration Using NETCONF
450
Save Configuration File
450
Edit XML Configuration File
450
Load Configuration Using CLI
453
Save Configuration File
453
Edit TEXT Configuration File
453
Limitations on Load Configuration
454
Fabric and Port-Connection
454
Snmpv3
457
Fujitsu Optical Interfaces
457
Rollback
458
Load Configuration with Large Database
458
Lldp
458
B Frequency Wavelength
460
Glossary Terms and Definitions
464
Index
468
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu 1FINITY L100 and is the answer not in the manual?
Ask a question
Fujitsu 1FINITY L100 Specifications
General
Brand
Fujitsu
Model
1FINITY L100
Category
Server
Language
English
Related product manuals
Fujitsu 19R-274A2
188 pages
Fujitsu PRIMERGY RX100 S7
86 pages
Fujitsu PRIMERGY RX300 S7
90 pages
Fujitsu PRIMERGY RX200 S8
336 pages
Fujitsu PRIMERGY RX300 S6
132 pages
Fujitsu Primergy RX300 S2
311 pages
Fujitsu PRIMERGY TX150 S4
97 pages
Fujitsu PRIMERGY RX300 S8
31 pages
Fujitsu Primergy RX300 S3
313 pages
Fujitsu Primergy RX300 S4
267 pages
Fujitsu PRIMERGY RX100 S8
82 pages
Fujitsu PRIMERGY RX200 S7
86 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
