5. WEB SOFTWARE
5-29
5.9.5 How to view the Event log
To view the Event log do the following:
1. Click [Log] in the menu bar.
2. Click [Event log] to show the Event log. Corresponding to the message, the follow-
ing [Error], [Warning] or [Notice] indicator appears.
• Error: The problem affects the startup of the equipment.
• Warning: The problem limits the functionality of the equipment.
• Notice: Internal event (status). Not an indication of equipment trouble.
3. To search the log, do the following:
1) Click the [Search] button to display the Search bar. (Click the [Search] button
again to hide the Search bar).
2) To search by date, enter part or all of the date in the [Date] field. To search by
event, enter part of the event code in the [Message] field. Matching search re-
sults display below the Search bar.
Note: To display a specific log ([HUB], [SIM], [Handset], [ADE], [Modem]) se-
lect the log to display from the [Block] list box.
4. To arrange the log in ascending or descending order, do the following:
1) At the top of the log list, click either [Date], [Block], [Message], or [Code]. S
appears beside the selected item.
2) Click the item again to change between S (ascending) or T (descending) or-
der.
5. To save the log to a CSV file, click the [Save CSV] button. (refer to
paragraph 5.9.2 for complete information). The Event log additionally records the
latitude and longitude (at the time an event was occurred), CN0 (RX signal level).
Note 1: You can find the latitude and longitude at the time an event was occurred and
RX signal level by putting the cursor on the date on the Event log display. If there is
no data (old log, no GPS data) “--°--’--”, ---°--’--” appears.

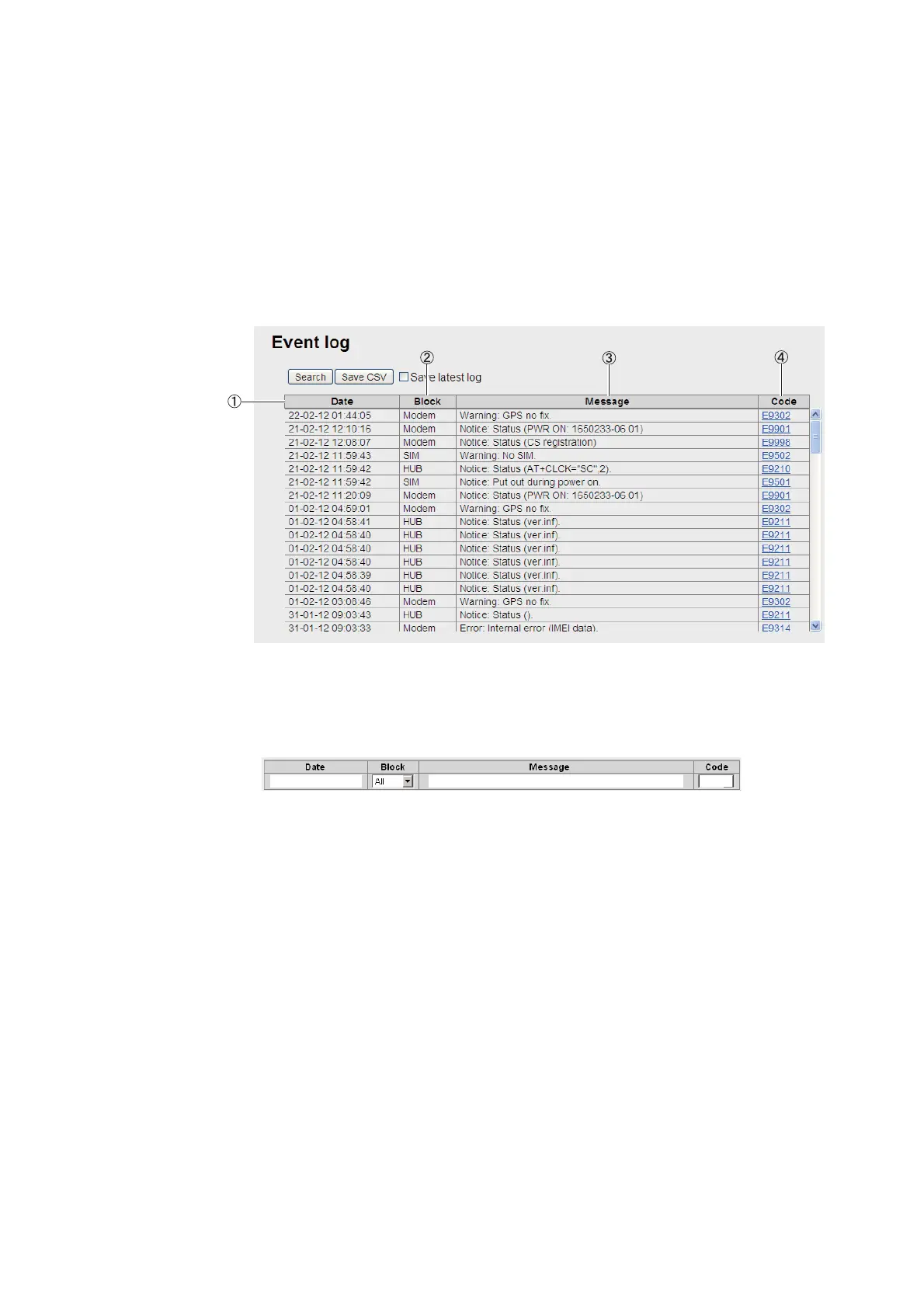

1) Time of event 2) Location of event 3) Details of event 4) Event code
