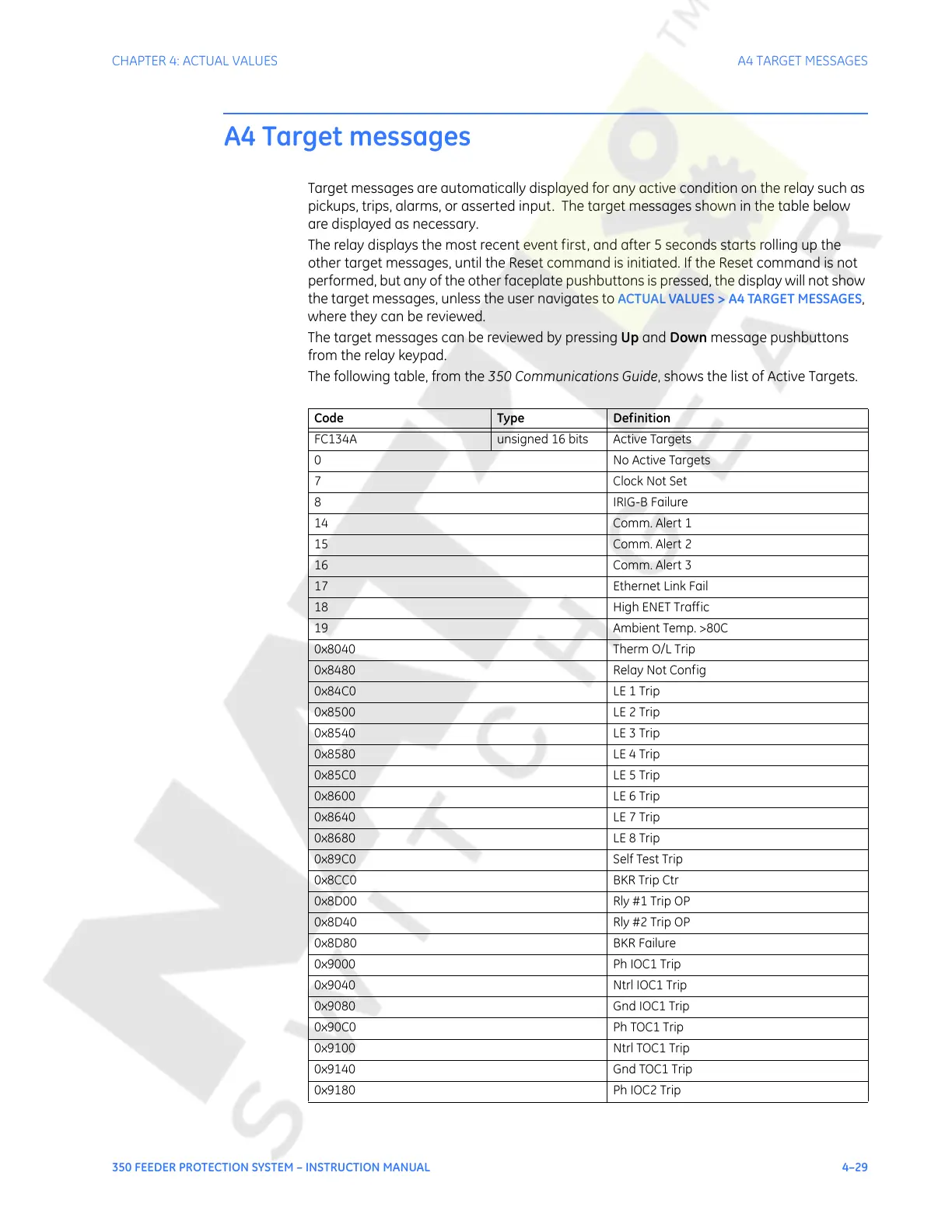

A4 Target messages
Target messages are automatically displayed for any active condition on the relay such as
pickups, trips, alarms, or asserted input. The target messages shown in the table below
are displayed as necessary.
The relay displays the most recent event first, and after 5 seconds starts rolling up the
other target messages, until the Reset command is initiated. If the Reset command is not
performed, but any of the other faceplate pushbuttons is pressed, the display will not show
the target messages, unless the user navigates to
ACTUAL VALUES > A4 TARGET MESSAGES,
where they can be reviewed.
The target messages can be reviewed by pressing Up and Down message pushbuttons
from the relay keypad.
The following table, from the 350 Communications Guide, shows the list of Active Targets.
Code Type Definition
FC134A unsigned 16 bits Active Targets
0 No Active Targets
7Clock Not Set
8IRIG-B Failure
14 Comm. Alert 1
15 Comm. Alert 2
16 Comm. Alert 3
17 Ethernet Link Fail
18 High ENET Traffic
19 Ambient Temp. >80C
0x8040 Therm O/L Trip
0x8480 Relay Not Config
0x84C0 LE 1 Trip
0x8500 LE 2 Trip
0x8540 LE 3 Trip
0x8580 LE 4 Trip
0x85C0 LE 5 Trip
0x8600 LE 6 Trip
0x8640 LE 7 Trip
0x8680 LE 8 Trip
0x89C0 Self Test Trip
0x8CC0 BKR Trip Ctr
0x8D00 Rly #1 Trip OP
0x8D40 Rly #2 Trip OP
0x8D80 BKR Failure
0x9000 Ph IOC1 Trip
0x9040 Ntrl IOC1 Trip
0x9080 Gnd IOC1 Trip
0x90C0 Ph TOC1 Trip
0x9100 Ntrl TOC1 Trip
0x9140 Gnd TOC1 Trip
0x9180 Ph IOC2 Trip
