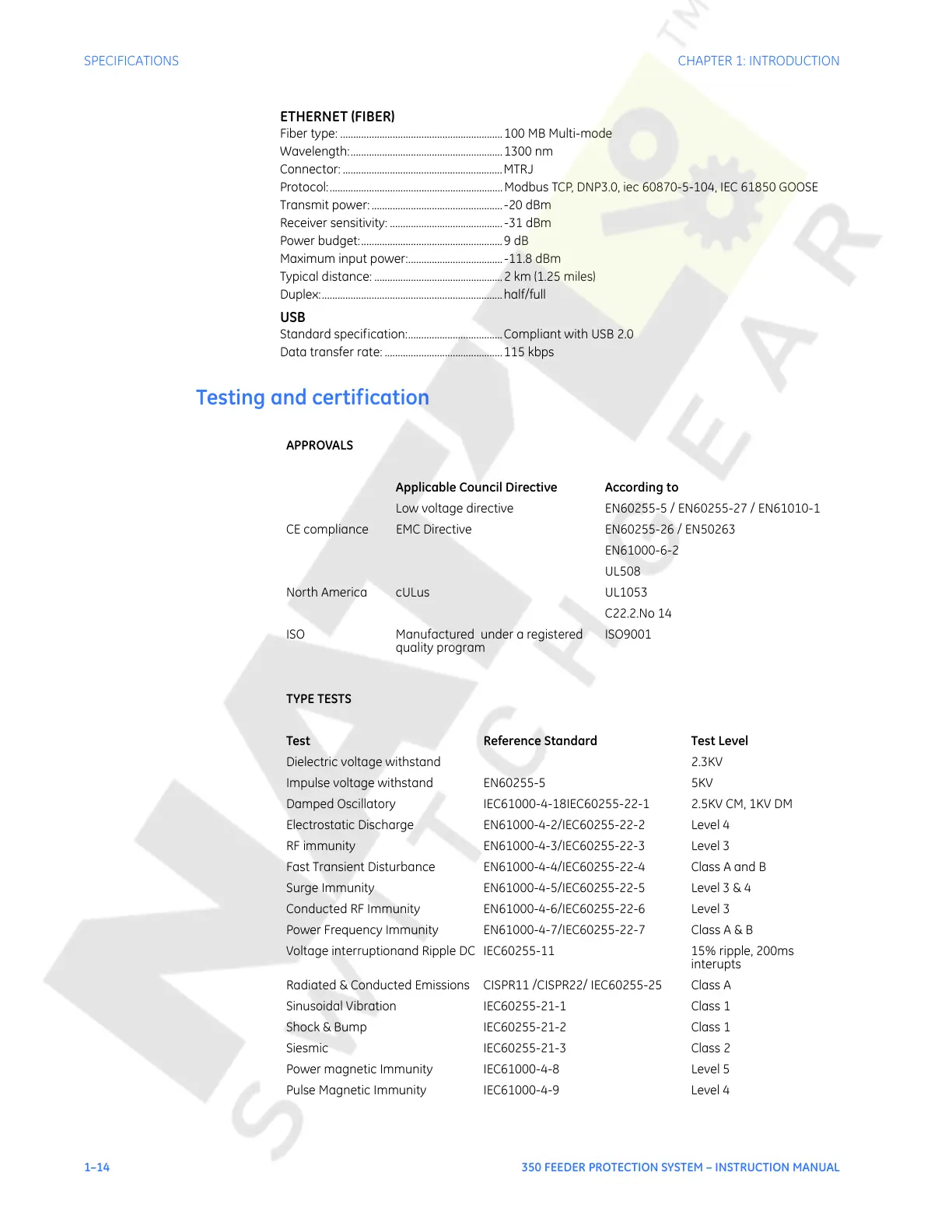

1–14 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
SPECIFICATIONS CHAPTER 1: INTRODUCTION
ETHERNET (FIBER)
Fiber type: .............................................................. 100 MB Multi-mode
Wavelength:.......................................................... 1300 nm
Connector: .............................................................MTRJ
Protocol:.................................................................. Modbus TCP, DNP3.0, iec 60870-5-104, IEC 61850 GOOSE
Transmit power: ..................................................-20 dBm
Receiver sensitivity: ...........................................-31 dBm
Power budget:......................................................9 dB
Maximum input power:....................................-11.8 dBm
Typical distance: .................................................2 km (1.25 miles)
Duplex:.....................................................................half/full
USB
Standard specification:....................................Compliant with USB 2.0
Data transfer rate: .............................................115 kbps
Testing and certification
APPROVALS
Applicable Council Directive According to
Low voltage directive EN60255-5 / EN60255-27 / EN61010-1
CE compliance EMC Directive EN60255-26 / EN50263
EN61000-6-2
UL508
North America cULus UL1053
C22.2.No 14
ISO Manufactured under a registered
quality program
ISO9001
TYPE TESTS
Test Reference Standard Test Level
Dielectric voltage withstand 2.3KV
Impulse voltage withstand EN60255-5 5KV
Damped Oscillatory IEC61000-4-18IEC60255-22-1 2.5KV CM, 1KV DM
Electrostatic Discharge EN61000-4-2/IEC60255-22-2 Level 4
RF immunity EN61000-4-3/IEC60255-22-3 Level 3
Fast Transient Disturbance EN61000-4-4/IEC60255-22-4 Class A and B
Surge Immunity EN61000-4-5/IEC60255-22-5 Level 3 & 4
Conducted RF Immunity EN61000-4-6/IEC60255-22-6 Level 3
Power Frequency Immunity EN61000-4-7/IEC60255-22-7 Class A & B
Voltage interruptionand Ripple DC IEC60255-11 15% ripple, 200ms
interupts
Radiated & Conducted Emissions CISPR11 /CISPR22/ IEC60255-25 Class A
Sinusoidal Vibration IEC60255-21-1 Class 1
Shock & Bump IEC60255-21-2 Class 1
Siesmic IEC60255-21-3 Class 2
Power magnetic Immunity IEC61000-4-8 Level 5
Pulse Magnetic Immunity IEC61000-4-9 Level 4
