CHAPTER 2: INSTALLATION MECHANICAL INSTALLATION
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 2–5
Unit withdrawal and insertion

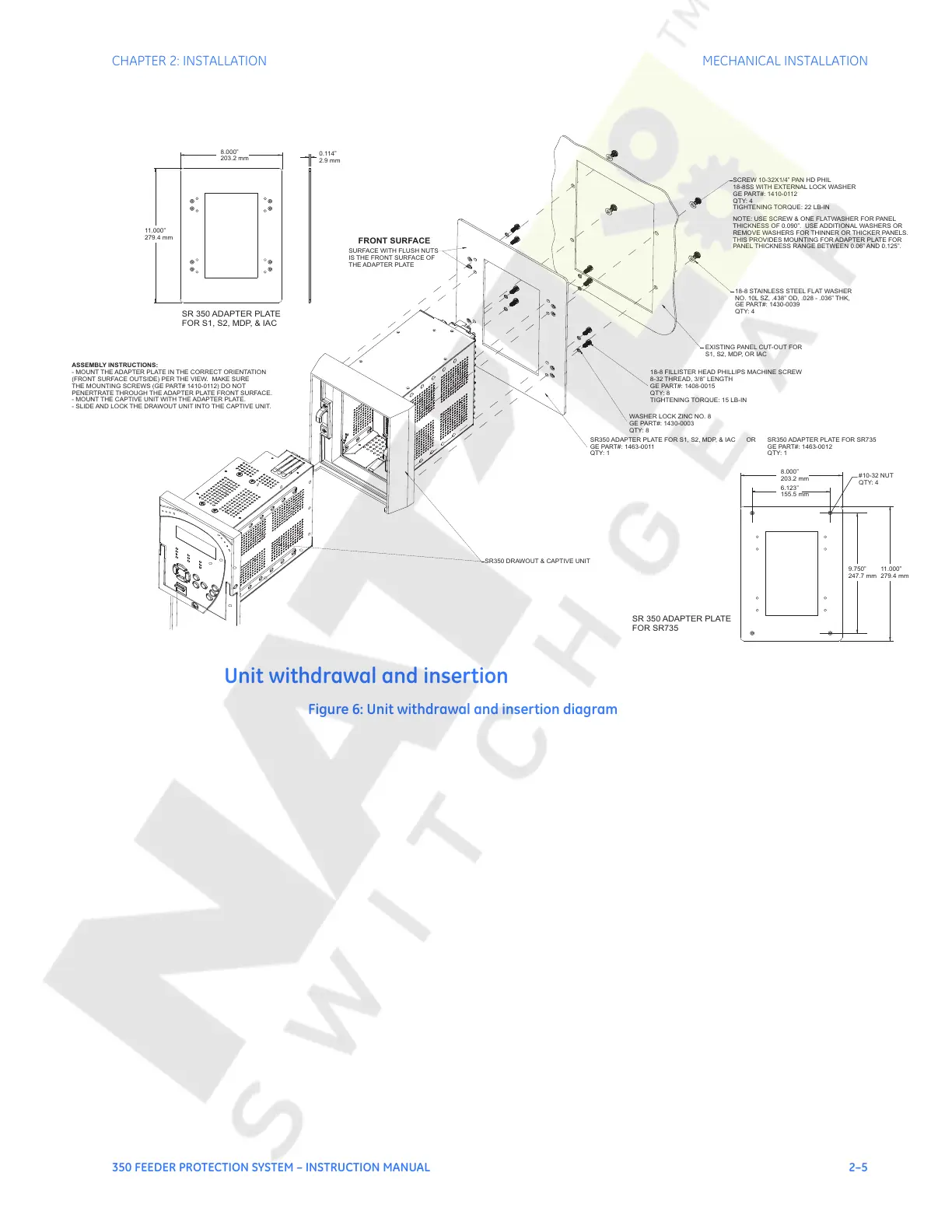

Figure 6: Unit withdrawal and insertion diagram
SR350 ADAPTER PLATE FOR S1, S2, MDP, & IAC
GE PART#: 1463-0011
QTY: 1
ASSEMBLY INSTRUCTIONS:
- MOUNT THE ADAPTER PLATE IN THE CORRECT ORIENTATION
(FRONT SURFACE OUTSIDE) PER THE VIEW. MAKE SURE
THE MOUNTING SCREWS (GE PART# 1410-0112) DO NOT
PENERTRATE THROUGH THE ADAPTER PLATE FRONT SURFACE.
- MOUNT THE CAPTIVE UNIT WITH THE ADAPTER PLATE.
- SLIDE AND LOCK THE DRAWOUT UNIT INTO THE CAPTIVE UNIT.
SR350 DRAWOUT & CAPTIVE UNIT
WASHER LOCK ZINC NO. 8
GE PART#: 1430-0003
QTY: 8
18-8 FILLISTER HEAD PHILLIPS MACHINE SCREW
8-32 THREAD, 3/8” LENGTH
GE PART#: 1408-0015
QTY: 8
TIGHTENING TORQUE: 15 LB-IN
EXISTING PANEL CUT-OUT FOR
S1, S2, MDP, OR IAC
18-8 STAINLESS STEEL FLAT WASHER
NO. 10L SZ, .438” OD, .028 - .036” THK,
GE PART#: 1430-0039
QTY: 4
NOTE: USE SCREW & ONE FLATWASHER FOR PANEL
THICKNESS OF 0.090”. USE ADDITIONAL WASHERS OR
REMOVE WASHERS FOR THINNER OR THICKER PANELS.
THIS PROVIDES MOUNTING FOR ADAPTER PLATE FOR
PANEL THICKNESS RANGE BETWEEN 0.06” AND 0.125”.
SCREW 10-32X1/4” PAN HD PHIL
18-8SS WITH EXTERNAL LOCK WASHER
GE PART#: 1410-0112
QTY: 4
TIGHTENING TORQUE: 22 LB-IN
SURFACE WITH FLUSH NUTS
IS THE FRONT SURFACE OF
THE ADAPTER PLATE
FRONT SURFACE
SR 350 ADAPTER PLATE
FOR S1, S2, MDP, & IAC
11.000”
279.4 mm
8.000”
203.2 mm
0.114”
2.9 mm
SR 350 ADAPTER PLATE
FOR SR735
11.000”
279.4 mm
8.000”
203.2 mm
6.123”
155.5 mm
9.750”
247.7 mm
#10-32 NUT
QTY: 4
OR
SR350 ADAPTER PLATE FOR SR735
GE PART#: 1463-0012
QTY: 1
