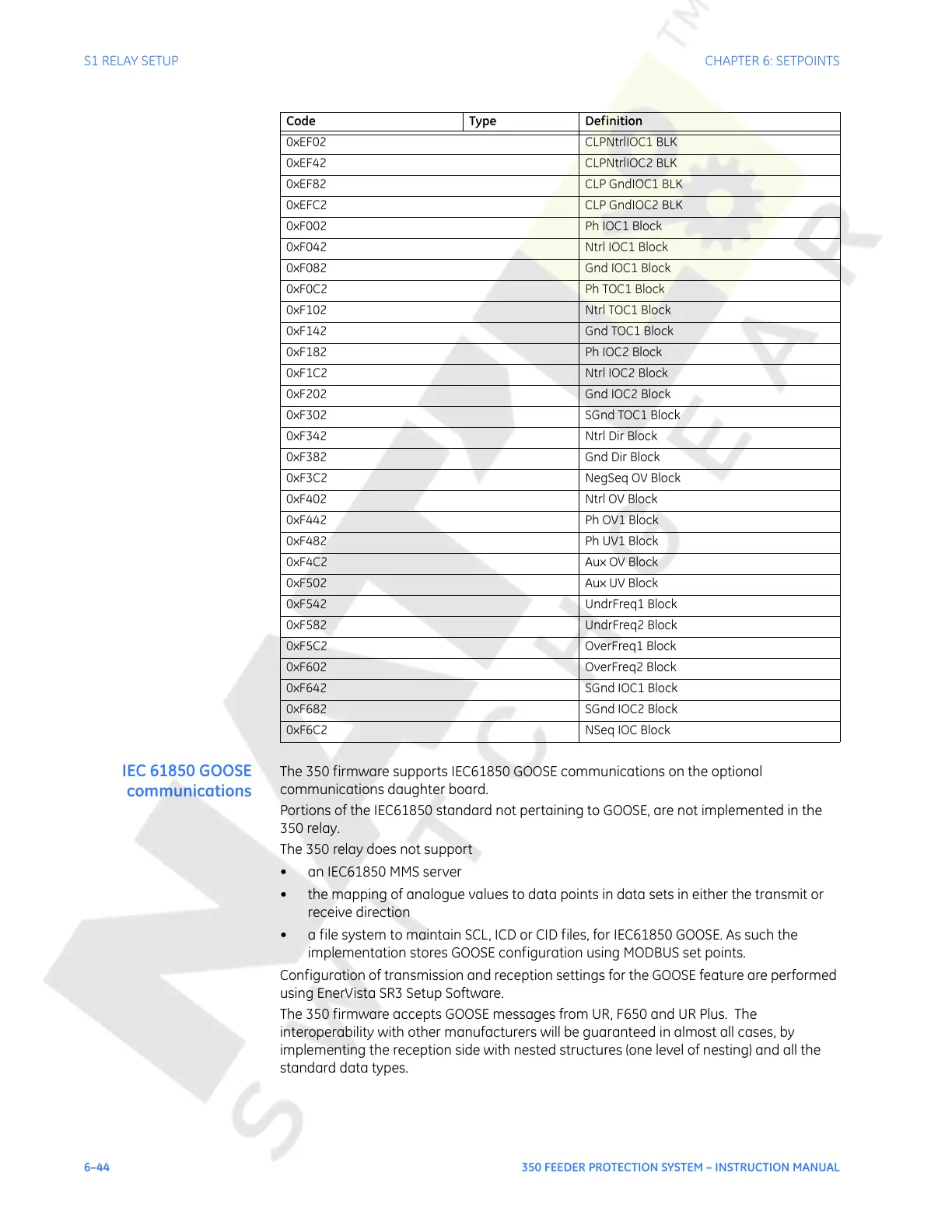

6–44 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
S1 RELAY SETUP CHAPTER 6: SETPOINTS
IEC 61850 GOOSE
communications
The 350 firmware supports IEC61850 GOOSE communications on the optional
communications daughter board.
Portions of the IEC61850 standard not pertaining to GOOSE, are not implemented in the
350 relay.
The 350 relay does not support
• an IEC61850 MMS server
• the mapping of analogue values to data points in data sets in either the transmit or
receive direction
• a file system to maintain SCL, ICD or CID files, for IEC61850 GOOSE. As such the
implementation stores GOOSE configuration using MODBUS set points.
Configuration of transmission and reception settings for the GOOSE feature are performed
using EnerVista SR3 Setup Software.
The 350 firmware accepts GOOSE messages from UR, F650 and UR Plus. The
interoperability with other manufacturers will be guaranteed in almost all cases, by
implementing the reception side with nested structures (one level of nesting) and all the
standard data types.
0xEF02 CLPNtrlIOC1 BLK
0xEF42 CLPNtrlIOC2 BLK
0xEF82 CLP GndIOC1 BLK
0xEFC2 CLP GndIOC2 BLK
0xF002 Ph IOC1 Block
0xF042 Ntrl IOC1 Block
0xF082 Gnd IOC1 Block
0xF0C2 Ph TOC1 Block
0xF102 Ntrl TOC1 Block
0xF142 Gnd TOC1 Block
0xF182 Ph IOC2 Block
0xF1C2 Ntrl IOC2 Block
0xF202 Gnd IOC2 Block
0xF302 SGnd TOC1 Block
0xF342 Ntrl Dir Block
0xF382 Gnd Dir Block
0xF3C2 NegSeq OV Block
0xF402 Ntrl OV Block
0xF442 Ph OV1 Block
0xF482 Ph UV1 Block
0xF4C2 Aux OV Block
0xF502 Aux UV Block
0xF542 UndrFreq1 Block
0xF582 UndrFreq2 Block
0xF5C2 OverFreq1 Block
0xF602 OverFreq2 Block
0xF642 SGnd IOC1 Block
0xF682 SGnd IOC2 Block
0xF6C2 NSeq IOC Block
Code Type Definition
