CHAPTER 3: INTERFACES FRONT CONTROL PANEL INTERFACE
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 3–3

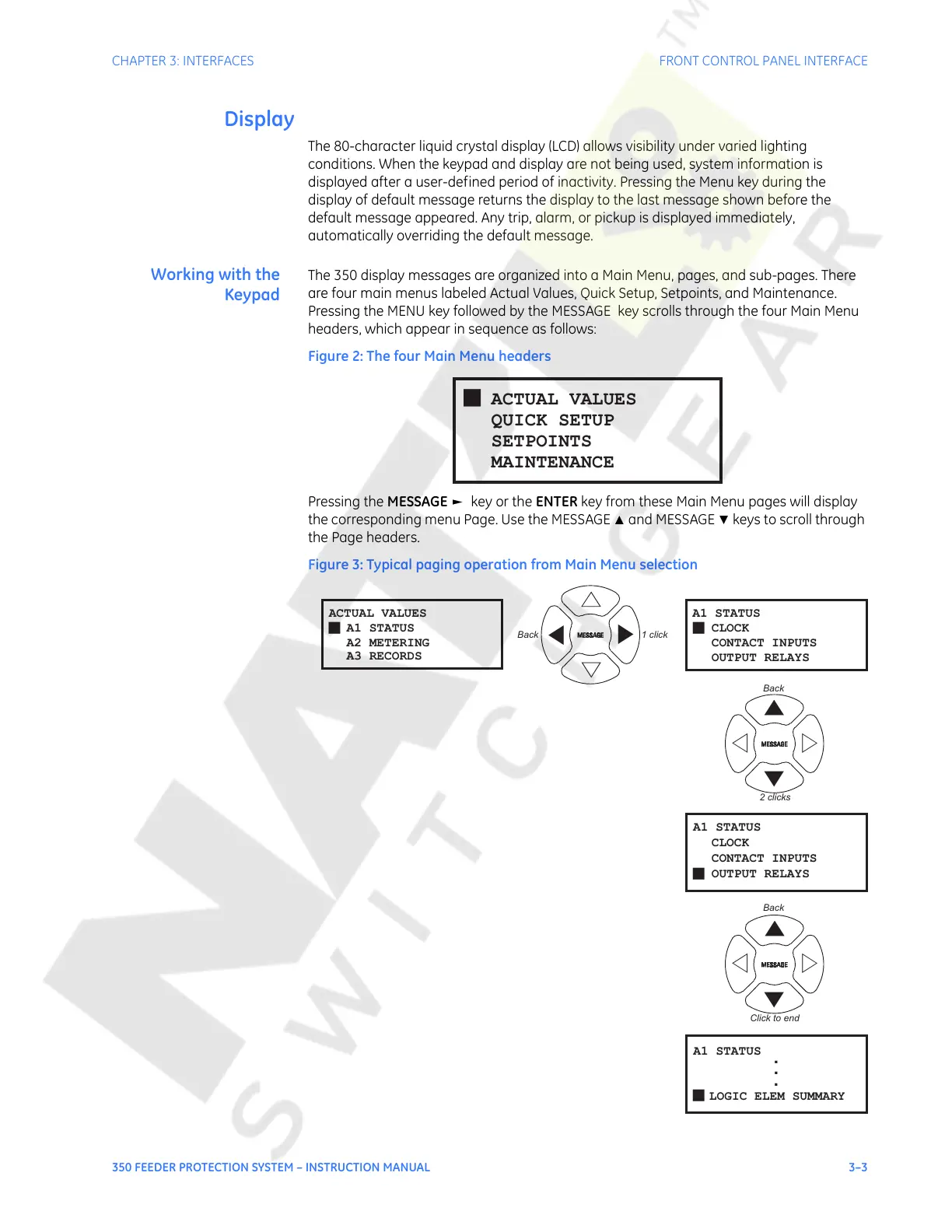

Display
The 80-character liquid crystal display (LCD) allows visibility under varied lighting
conditions. When the keypad and display are not being used, system information is
displayed after a user-defined period of inactivity. Pressing the Menu key during the
display of default message returns the display to the last message shown before the
default message appeared. Any trip, alarm, or pickup is displayed immediately,
automatically overriding the default message.
Working with the
Keypad
The 350 display messages are organized into a Main Menu, pages, and sub-pages. There
are four main menus labeled Actual Values, Quick Setup, Setpoints, and Maintenance.
Pressing the MENU key followed by the MESSAGE key scrolls through the four Main Menu
headers, which appear in sequence as follows:
Figure 2: The four Main Menu headers
Pressing the MESSAGE ► key or the ENTER key from these Main Menu pages will display
the corresponding menu Page. Use the MESSAGE ▲ and MESSAGE ▼ keys to scroll through
the Page headers.
Figure 3: Typical paging operation from Main Menu selection
█
ACTUAL VALUES
QUICK SETUP
SETPOINTS
MAINTENANCE
█
CLOCK
A1 STATUS
CONTACT INPUTS
OUTPUT RELAYS
█
ACTUAL VALUES
A1 STATUS
A2 METERING
A3 RECORDS
█
CONTACT INPUTS
A1 STATUS
OUTPUT RELAYS
CLOCK
█
A1 STATUS
LOGIC ELEM SUMMARY
.
.
.
2 clicks
▽
△
▶
▶
▼
◁▷
▼
▼
◁▷
Click to end
▼
Back
Back
Back
1 click
