Components and Functions (Theory)
5-38 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
BEP Power Supply

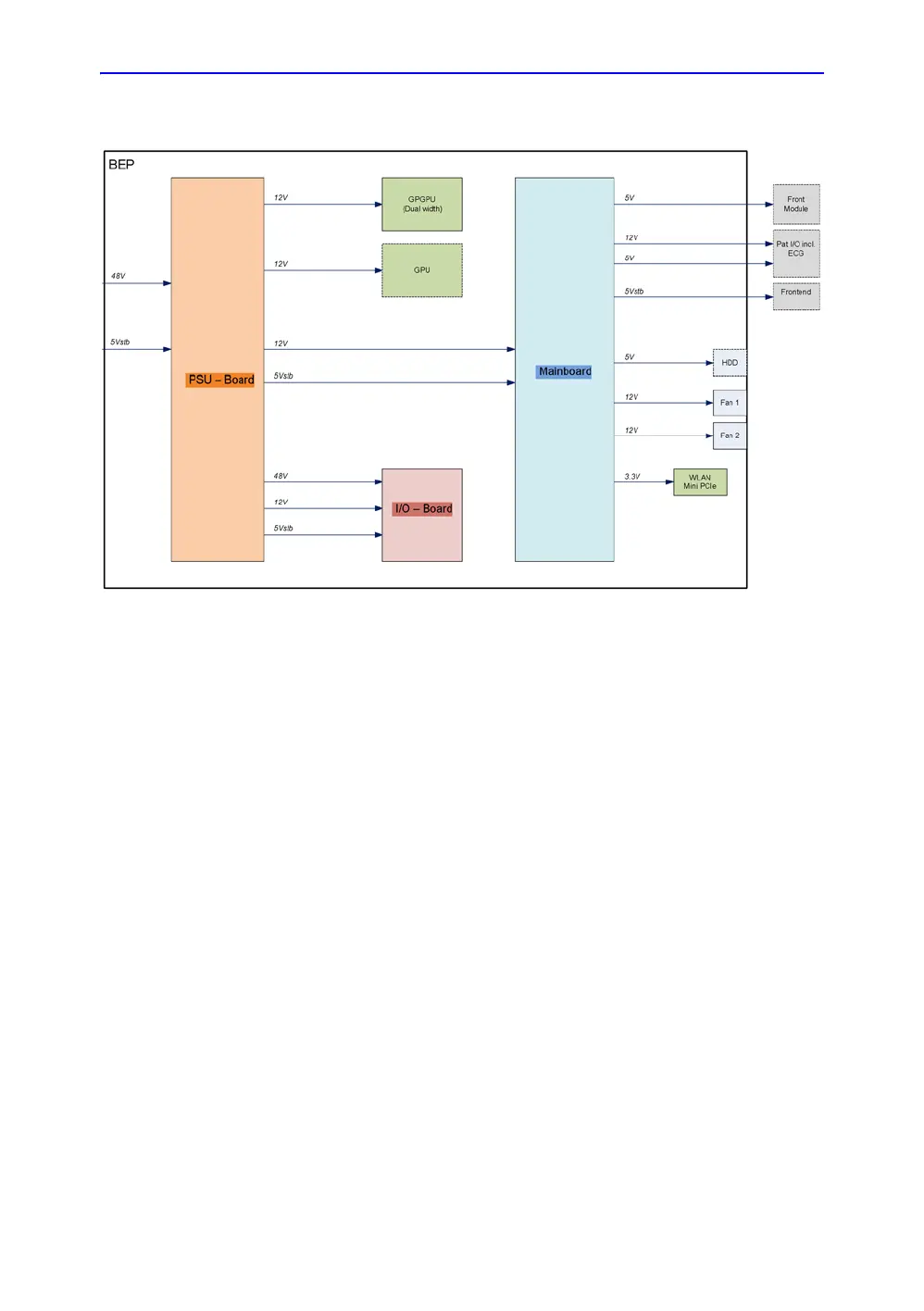

Figure 5-20. BEP power distribution
NOTE: The BEP Power Supply does not handle AC voltages.
It receives its 48V
DC
input voltage from the Vivid E80/E90/E95’s
Main Power Supply.
Dedicated control signals, are used for controlling the BEP
Power Supply.
Graphics adapters
• General purpose Graphics Processing Unit (GPGPU)
• Graphics Processing Unit (GPU)
Internal storage devices
• Hard Disk Drive (HDD) (for product software and data
storage)
