Replacement Procedures
8-110 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
3. Connect the cables to the DVD drive.
4. Install the Covers.
Black & White Digital Graphic Printer replacement
Read and follow
Preparations
When preparing for the replacement, you must perform the
following steps:
1. Power down the Ultrasound system.
2. Disconnect the Mains Power Cable from the wall outlet.
3. Disconnect all probes and external I/O cabling.
4. Remove the Left Side Cover.
Remove the Black & White Digital Graphic Printer
Follow this procedure to remove the Black & White Digital
Graphic Printer:
1. Disconnect the cables from the back of the printer.
2. Loosen the printer bracket wing nut that secures the printer.
3. Slide the printer out.
Install the Black & White Digital Graphic Printer
Follow this procedure to install the Black & White Digital Graphic
Printer:

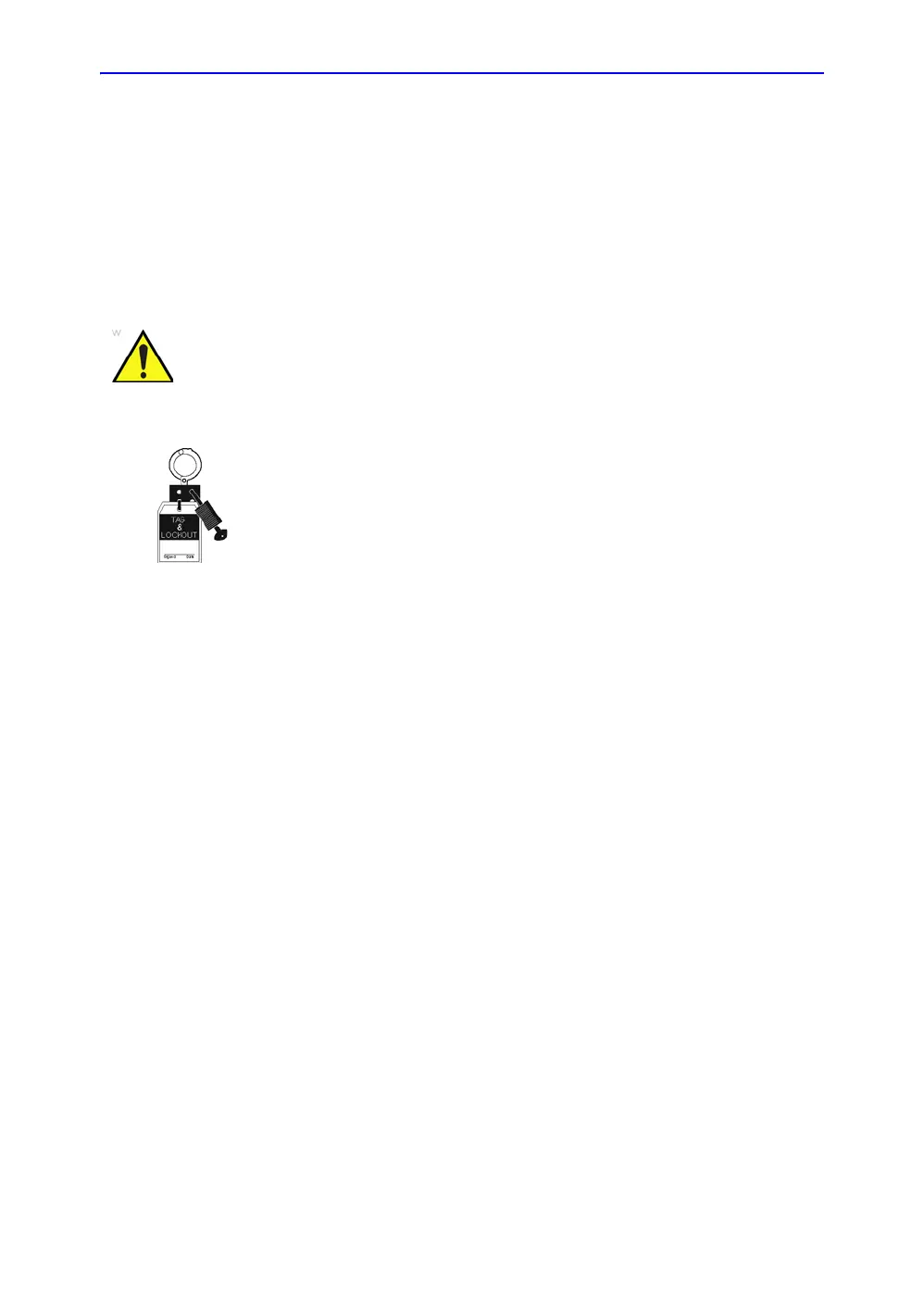

Energy Control and Power Lockout for Vivid E80/E90/E95.
When servicing parts of the Ultrasound system where there is
exposure to voltage greater than 30 volts:
1. Follow LOCK OUT/TAG OUT procedures.
2. Turn off the breaker.
3. Unplug the Ultrasound system.
4. Maintain control of the Ultrasound system power plug.
5. Wait for at least 30 seconds for capacitors to discharge as
there are no test points to verify isolation.
Ultrasound System components may be energized.
