Replacement Procedures
8-38 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
Lower Operating Panel Parts
replacement
Knobs for Encoders and Slidepots replacement
Knobs for Encoders and Slidepots removal procedure
NOTE: If you are going to remove the Upper Operating Panel, you only
need to remove the knobs below the Touch Screen, including
the Volume knob.
1. Pull the knobs one by one until all knobs have been
removed.
2. Store the knobs in a clean place.
Knobs for Encoders and Slidepots installation procedure
Install the knobs one by one. Refer to the illustration below for
the correct position for the knobs.

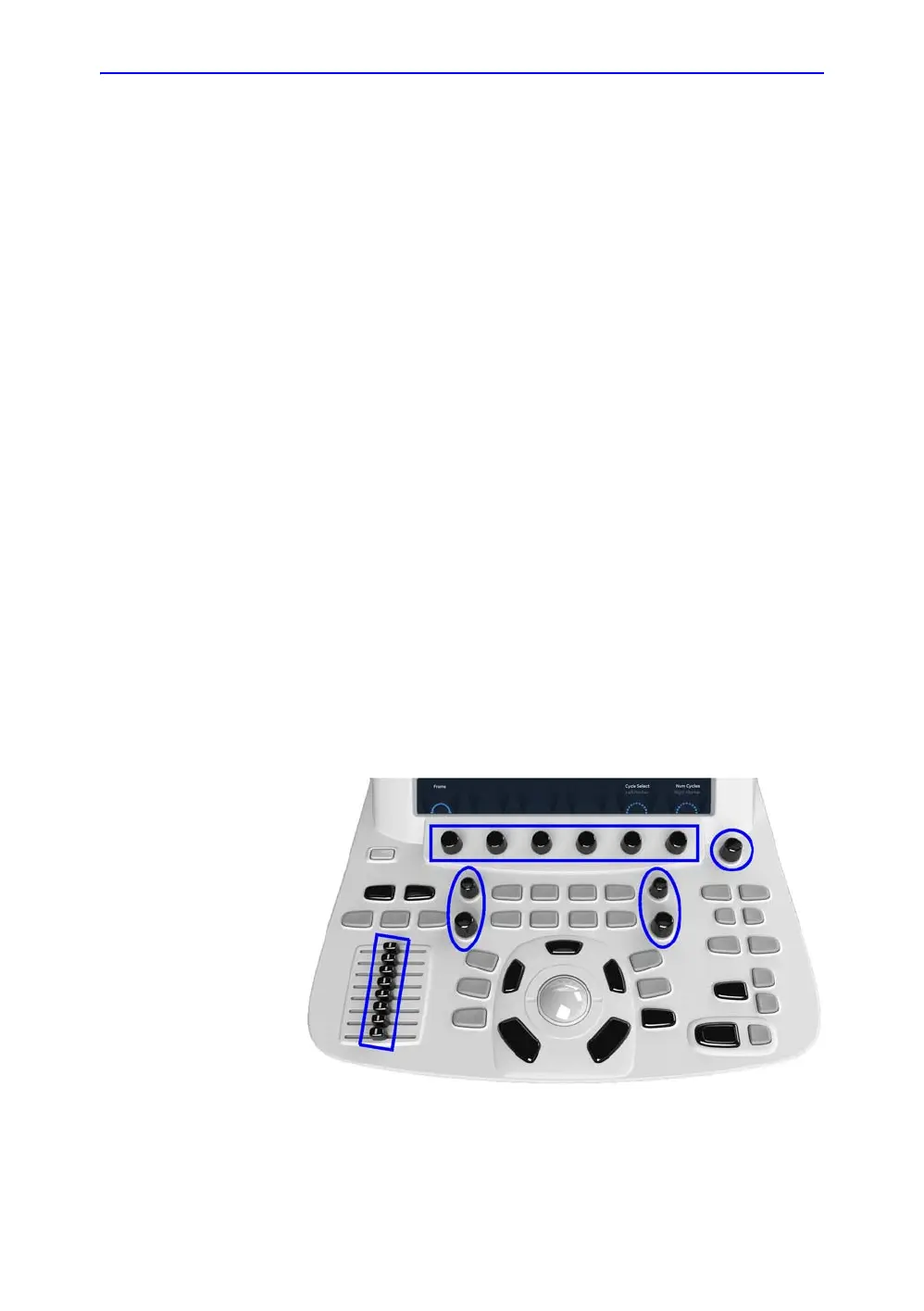

Figure 8-6. Knobs for Encoders and Slidepots
