Patient I/O assembly replacement
Vivid E80/E90/E95 – Service Manual 8-107
GC091052 Rev. 3
Patient I/O assembly replacement
Read and follow
Preparations
When preparing for the replacement, you must perform the
following steps:
1. Power down the Ultrasound system.
2. Disconnect the Mains Power Cable from the wall outlet.
3. Disconnect all probes and external I/O cabling.
4. Remove Left Side Cover.
5. Remove the BEP Cover.
Patient I/O module removal procedure
Follow these steps to remove the Patient I/O module:
1. Inside the BEP there is an opening for the Power and USB
cables to the Patient I/O module. Disconnect the Power
cable connector and the USB cable connector from the
Patient I/O module.
2. Remove one screw inside the BEP.

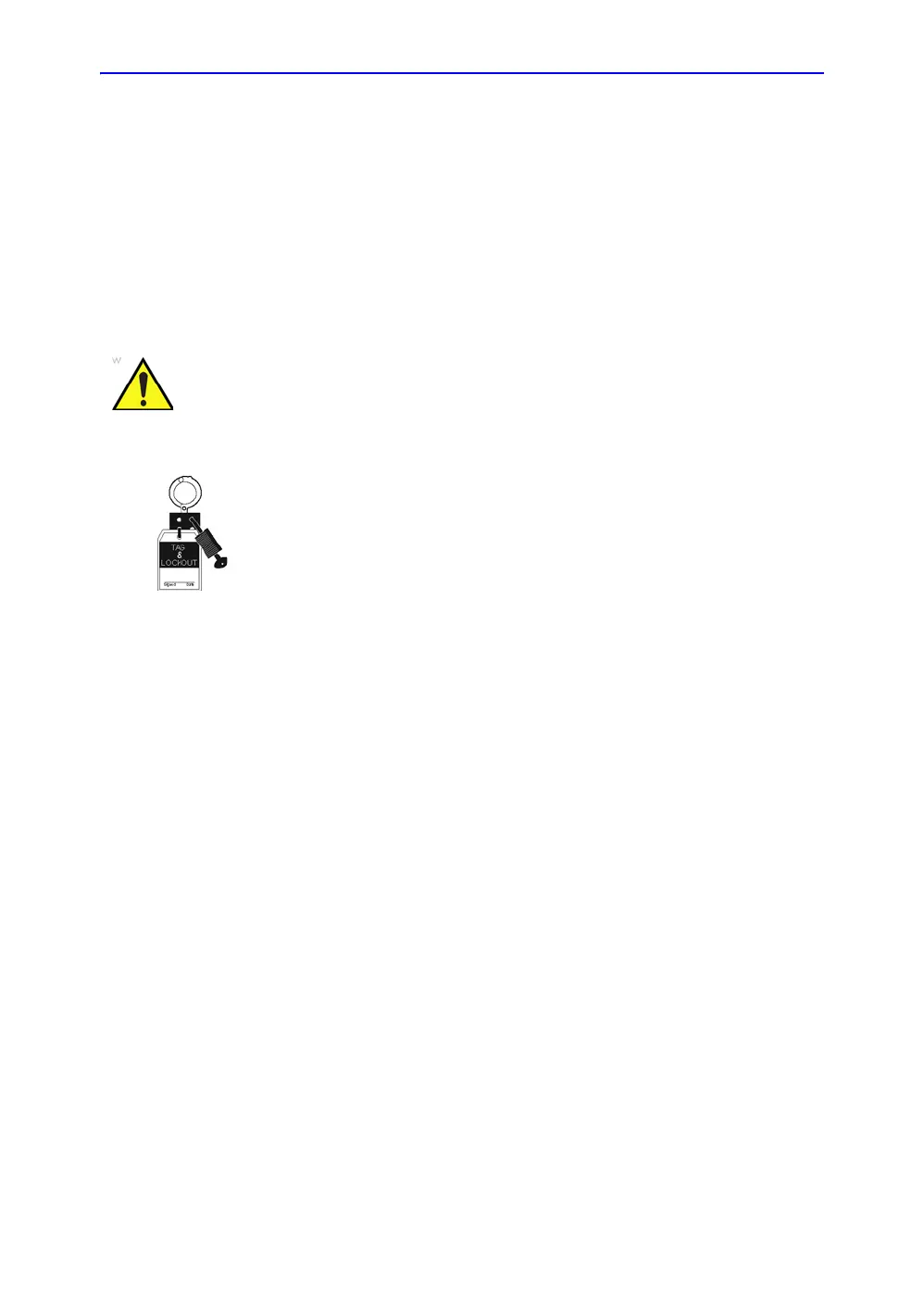

Energy Control and Power Lockout for Vivid E80/E90/E95.
When servicing parts of the Ultrasound system where there is
exposure to voltage greater than 30 volts:
1. Follow LOCK OUT/TAG OUT procedures.
2. Turn off the breaker.
3. Unplug the Ultrasound system.
4. Maintain control of the Ultrasound system power plug.
5. Wait for at least 30 seconds for capacitors to discharge as
there are no test points to verify isolation.
Ultrasound System components may be energized.
