gefran VDI100 Series User Manual

06 - Automatic Program Operation Parameters
06-00
Auto Run (sequencer) mode selection
0: Disabled
1: Execute a single cycle operation mode. Restart speed is based on the previous stopped speed.
2: Execute continuous cycle operation. Restart speed is based on the previous stopped speed.
3: After the completion of a single cycle, the on-going operation speed is based on the speed of the last stage. Restart speed is based on
the previous stopped speed.
4: Execute a single cycle operation. Restart speed is based on the Speed-Stage 0.
5: Execute continuous cycle operation. Restart speed is based on the Speed-Stage 0.
6: After completion of a single cycle, the on-going operation speed is based on the speed of the last stage. Restart speed is based on the
Speed-Stage 0.
Automatic operation mode uses frequency reference parameters 05-01, 06-01~06-15, operation time parame-
ters 06-16 ~ 06-31 and direction of operation parameters 06-32~06-47.
Notes: The automatic operation mode is disabled when any of the following functions are active:
- Frequency wobbling function
- PID function
When automatic operation mode is active, external multi-step speed reference command 1~4 (03-00~03-
07=2~5) is disabled.
Example1: Automatic operation mode – Single cycle
In this example the inverter executes a single cycle and then stops.
Parameter Settings:
06-00 =1 or 4 (Single cycle operation)
06-32~06-34= 1 (Forward for multi-step speed 0 - 2)
06-47= 2 (Reverse for multi-step speed 15)
06-35~06-46=0 (Stop for multi-step speed 3 - 14)
05-01= 15 Hz (Multi-step speed 0: 15 Hz)
06-01= 30 Hz (Multi-step speed 1: 30 Hz)
06-02= 50 Hz (Multi-step speed 2: 50 Hz)
06-15= 20Hz (Multi-step speed 15: 20 Hz)
06-16= 20 sec (Multi-step
time 0: 20 sec)
06-17= 25 sec (Multi-step time 1: 25 sec)
06-18= 30 sec (Multi-step time 2: 30 sec)
06-31= 40 sec (Multi-step time 15: 40 sec)

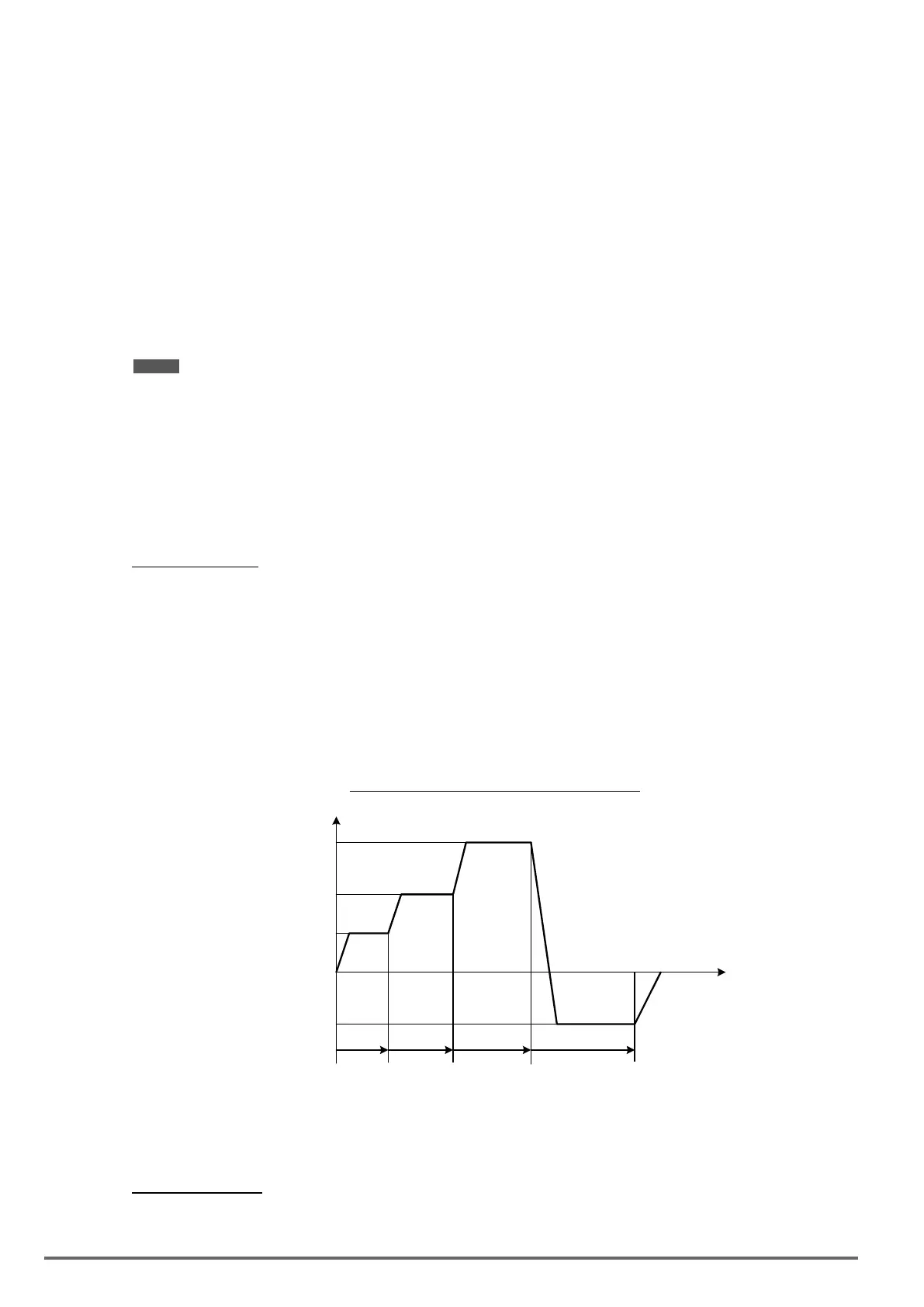

Figure4.4.52Singlecycleautomaticoperation(stop)
Freq.
50 Hz
30 Hz
15 Hz
20 Hz
20s 25s 30s 40s
05-01
06-01
06-02
06-15
06-16 06-17 06-18
06-31
Example2: Automatic operation mode – Continuous cycle
In this example the inverter repeats the same cycle.
Parameter Settings:
06-00 = 2 or 5 (Continuous cycle operation)
06-01~06-47= Enter the same setting as that of Example 1.
186 VDI100 • Instruction manual
