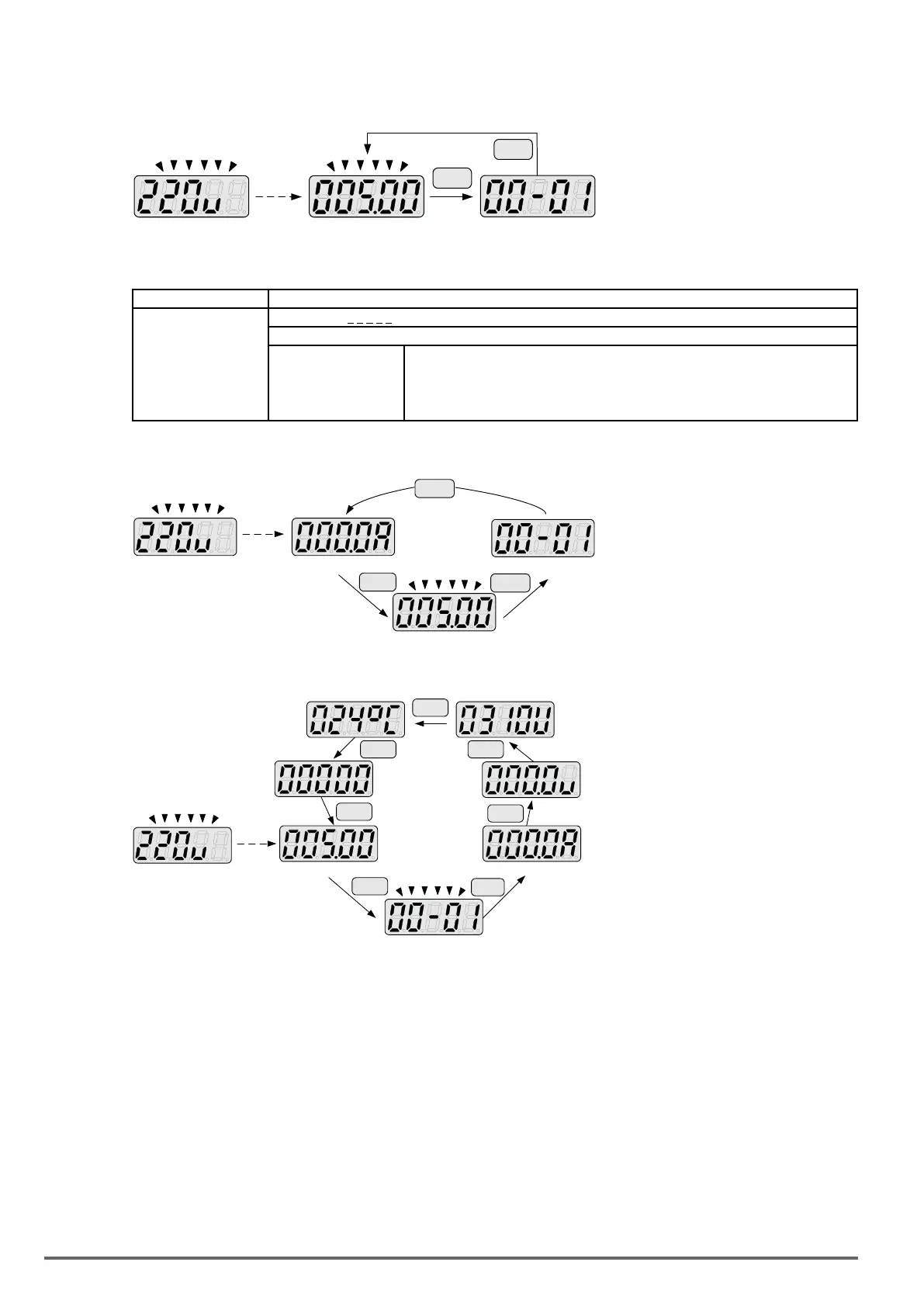

4.1.4. Power-up Monitor
• Power-up
DSP/FUN
DSP/FUN
After 3 sec.
Display at Power-up Frequency Reference
Switch
Mode
Parameter Selection
• Changing Monitor at Power-up
12-00 Display Selection
Range
Highest bit -> 0 0 0 0 0 <- Lowest bit
The setting range for each bit is 0 ~ 7 from the highest bit to the lowest bit.
0: No display 4: Temperature
1: Output current 5: PID feedback
2: Output voltage 6: AI1 value
3: DC voltage 7: AI2 value
Example:12-00=[10000]
DSP/FUN
DSP/FUN
DSP/FUN
After 3 sec.
Switch
Mode
Parameter Selection
Output Current
Frequency Reference
Display Voltage Class
at Power-up
Example:12-00=[12345]
DSP/FUN
DSP/FUN
DSP/FUN
DSP/FUN
DSP/FUN
DSP/FUN
DSP/FUN
After 3 sec.
Display Voltage Class
at Power-up
Output Current <1>
Parameter Selection
Output Voltage <2>
DC Voltage <3>
Heatsink Temperature <4>
PID Feedback <5>
Frequency Reference
48 VDI100 • Instruction manual
