7 - Fault finding
185
ISOBUS
ISOBUS Universal Terminal
ISOBUS UT enabled, no object pool loaded from
the connected implement.
Implement C2C is not connected or has no power.
The implement C2C is powered direct from the
tractor ISO ECU power supply.
When an ISOBUS compliant implement is
connected to the display for the first time, or the
software in the ISOBUS device has been updated
the implement WSM sends its graphic interface,
called the Object Pool, to the display.

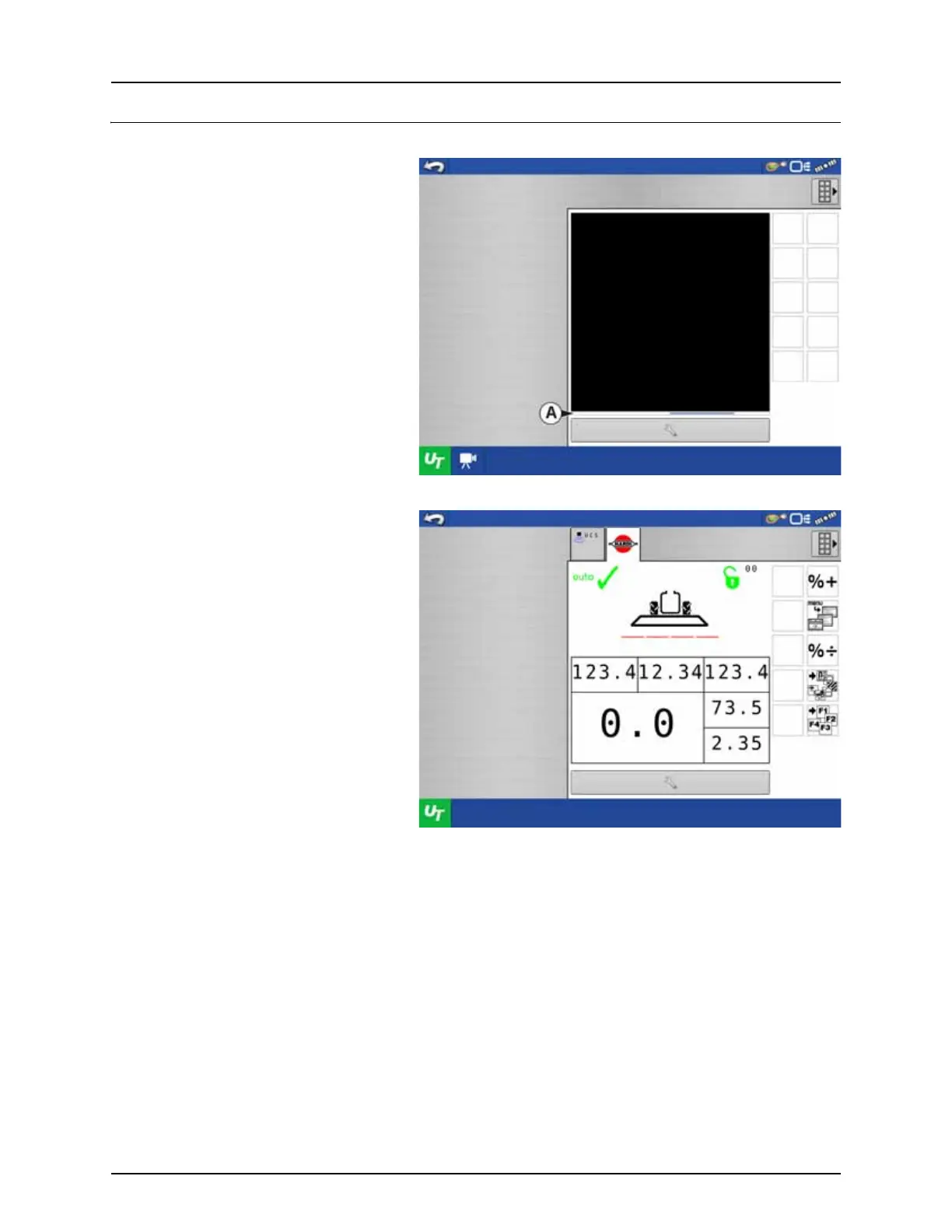

Status bar (A) appears while Object Pools are being
loaded. This process might take several minutes
depending on the number of Object Pools being
loaded.
Once loaded, object pools are stored in the display
memory.
The object pool loaded from the implement C2C
to the display and the C2C is powered On.
The “123.4” digits and the default 4 boom sections
indicate that the JobCom is powered Off.
Power On the system with the power button on
the HARDI® SetBox.
Depending on specific wiring harness,
AutoTerrain/AutoHeight is powered from:
• Trailer/Lift: Powered when JobCom is
connected to an ISOBUS tractor.
• Self-Propelled: Powered On while the display
is On.
• RetroFit Kit: Powered On while the display is
On.
Volume rate Work rate
Prog. rate
Speed
Boom pressure
Volume rate
gal/acre
gal/acre
ac/hour
gal/acre
mph
psi
