Higen FDA5000 Series User Manual

Chapter 16. External View
16-2

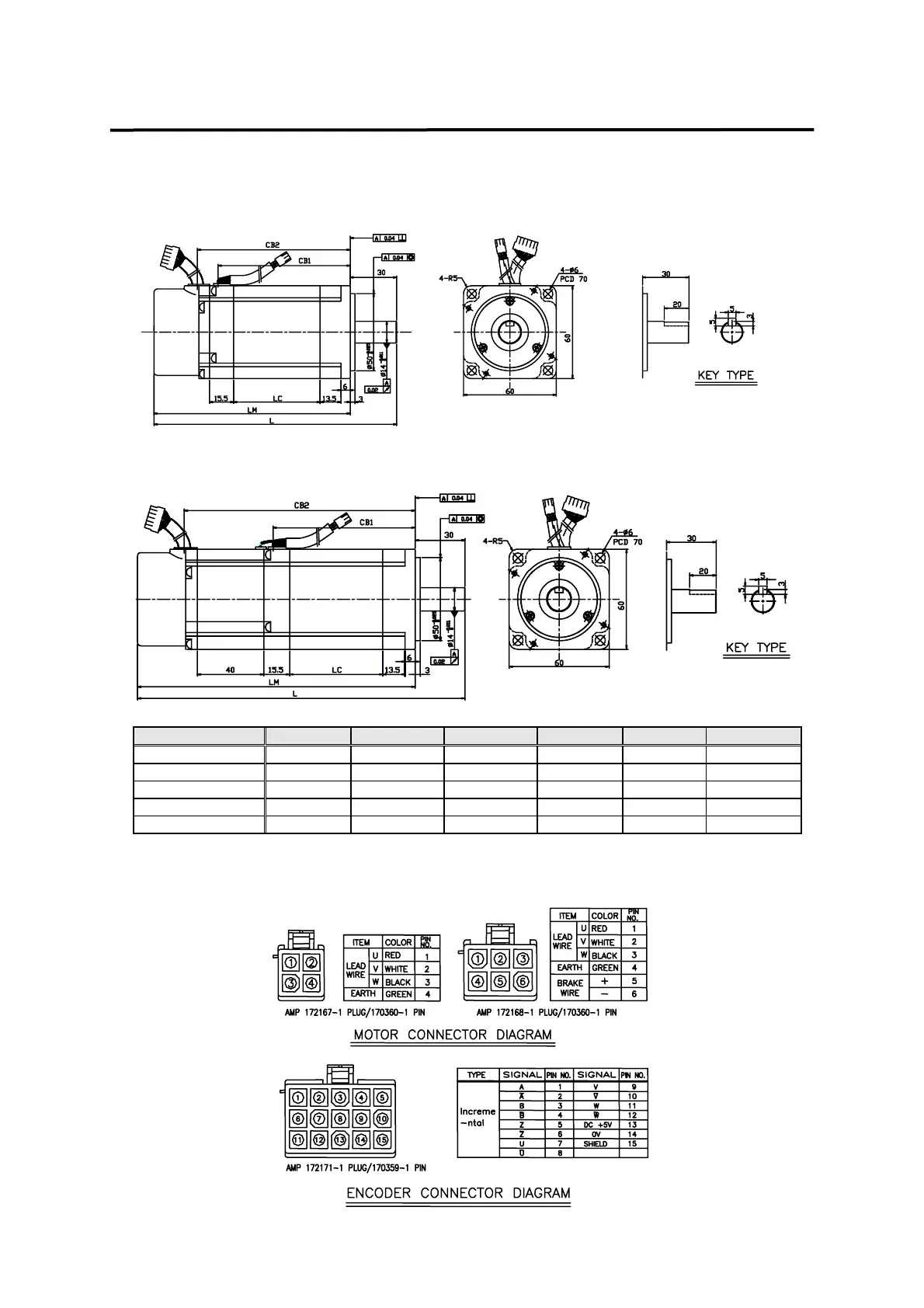

16.2 External Dimensions of AC Servo Motor
16.2.1 Flange 60 Series
Model L LM LC CB1 CB2 Weight (kg)
FMA-CN01(B) 115(155) 85(125) 14(14) 44(44) 57(97) 0.85(1.4)
FMA-CN02(B) 129(169) 99(139) 28(28) 58(58) 71(111) 1.14(1.7)
FMA-CN03(B) 143(183) 113(153) 42(42) 72(72) 85(125) 1.43(2.0)
FMA-CN04(B) 157(197) 127(167) 56(56) 86(86) 99(139) 1.73(2.3)
FMA-CN05(B) 171(211) 141(181) 70(70) 100(100) 113(153) 2.03(2.6)
* Figures in ( ) indicate brake-attached type.
* Use DC 24V for brake input power supply.
* In case of applying absolute encoder, Motor length is extended 15mm.
Standard t
y
pe
Brake type
