Chapter 3. Wiring and Signals
3-9
3.4 CN1 Wiring and Signal
CN1 is the connector located at the right
lower part of the front of drive system. This
connector is used to connect the drive
system with the upper control system which
commands the operation.

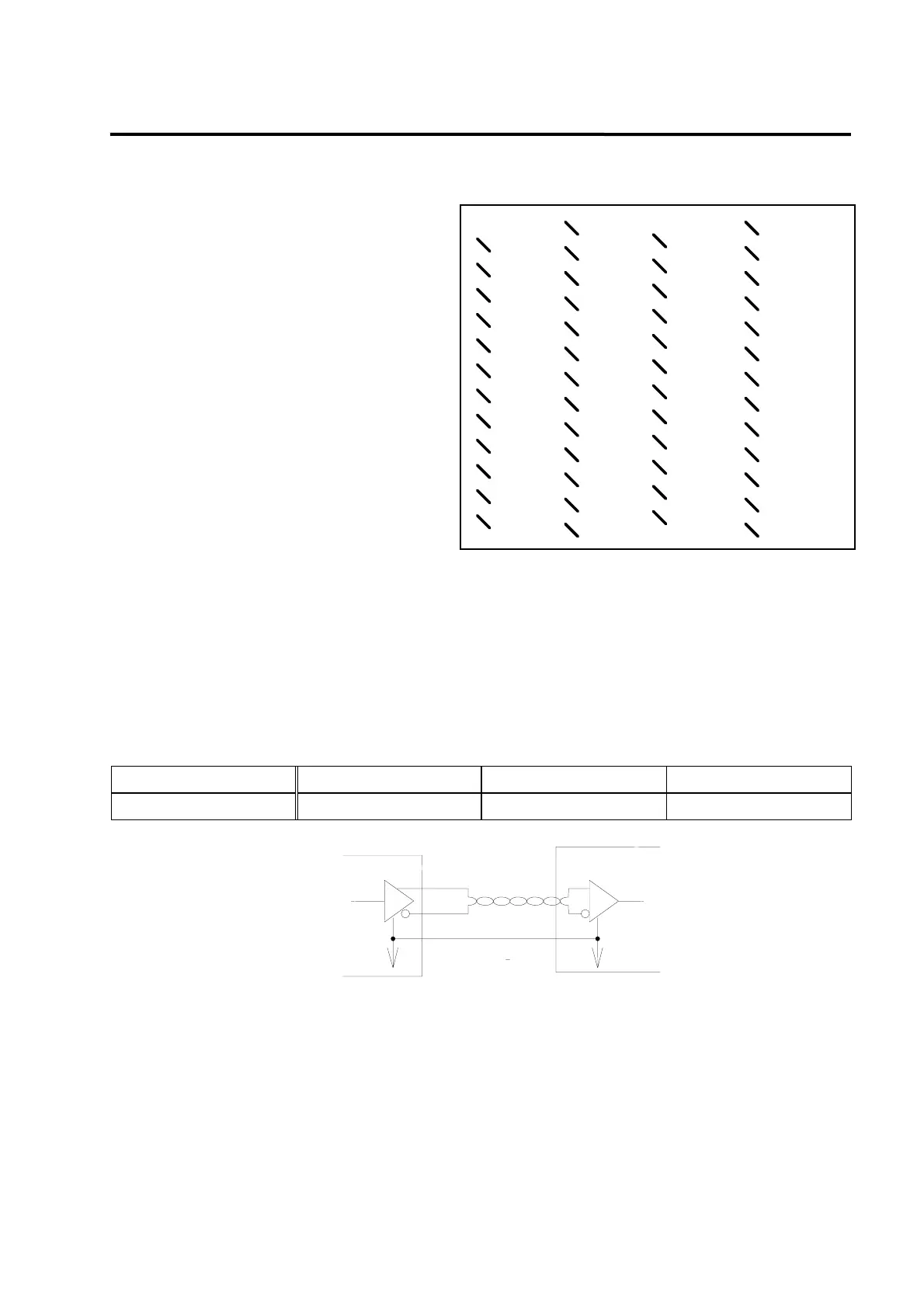

The figure on the right side shows the pin
array of the connector CN1 seen from the
user side connector.
(Note 1) CN1 connector is an option item.
∗ Maker: 3M
∗ Case name: 10350-52FO-008
∗Connector (For soldering): 10150-3000VE
3.4.1 Encoder output signal
The encoder signal is produced based on 0 [V] (GND) of control power supply. Connect 0 [V]
terminal of the circuit which receives this signal from the upper control system to the GND terminal
of CN1. Encoder signal is produced in line driver system after the AC servo motor encoder signal
received from CN2 is divided according to the frequency dividing ratio set by the sub-menu [Pulse
Out Rate (P2-07)] of the main menu [Control Mode (P2-)]. Functions of each signal is as follows.
Signal function A phase output B phase output Z phase output
PIN No(CN1-) PAO(7)/PAO(32) PBO(6)/PBO(31) PZO(5)/PZO(30)
GND
PA
PAO
/PAO
Encoder signal connection example
Driver
Line driver
(SN75174)
Line receiver
(SN75175)
Controller
PIN Array of CN1
26:GND
28:TRQIN
30:/PZO
32:/PAO
40:CWLIM
48:BRAKE
42:SPD3/TYPE
34:GND
50:F.G
36:GND
38:ALMRST/CLR
46:TRQOUT
44:A_CODE2
1:GND
3:MONIT1
5:PZO
7:PAO
15:CCWLIM
23
17:SPD2\GEAR2
9:PPRIN
25:GND24
11:PPFIN
13:STOP
21:RDY
19:A_CODE1
27:SPDIN
29
31:/PBO
33:GND
41:PI/P
49:+ 24VIN
43:SPD1\GEAR1
35:+ 12V
37:- 12V
39:ESTOP
47:ZSPD
45:A_CODE0
2:MONIT2
4
6:PBO
8:GND
16:DIR
24:GND24
18:SVONEN
10:PFIN
12:PRIN
14:TLIM
22:INSPD\INPOS
20:ALARM
(Based on the soldered side of the user connector)
