Higen FDA5000 Series User Manual

Chapter 5. Mount Loader Operation
5
-3

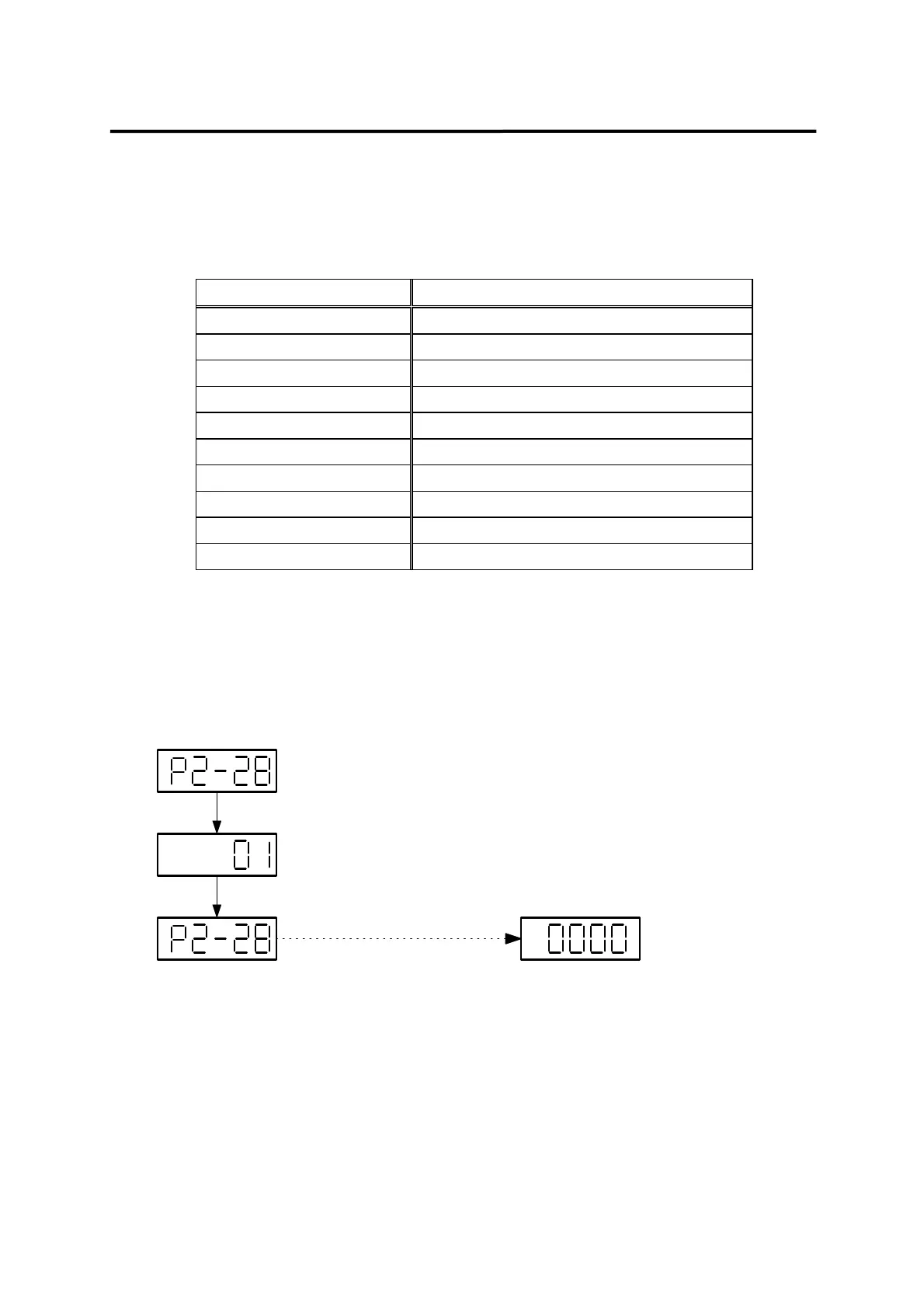

5.1 Initial screen after power is connected
Menus displayed after power is connected can be set according to [Display Select(P2-28)] set
value.
[Display Select(P2-28)] Initial menus after power is connected
1 Motor Speed[r/min], (St-01)
2 CMD Speed[r/min] , (St-02)
3 CMD Pulse, (St-03)
4 Feedback Pulse, (St-04)
5 Pulse ERR, (St-05)
6 Speed Limit[r/min] , (St-06)
7 Torque Limit[%], (St-07)
8 Load Rate[%], (St-08)
9 Max Load Rate[%], (St-09)
10 Inertia Ratio, (St-10)
Initial set value of [Display Select(P2-28)]: 1
5.1.1 Connecting power when No alarm and initial menu are set to motor speed
Turn OFF and turn On power
ENTER
ENTER
Indicates motor speed
when motor is o
p
erated
