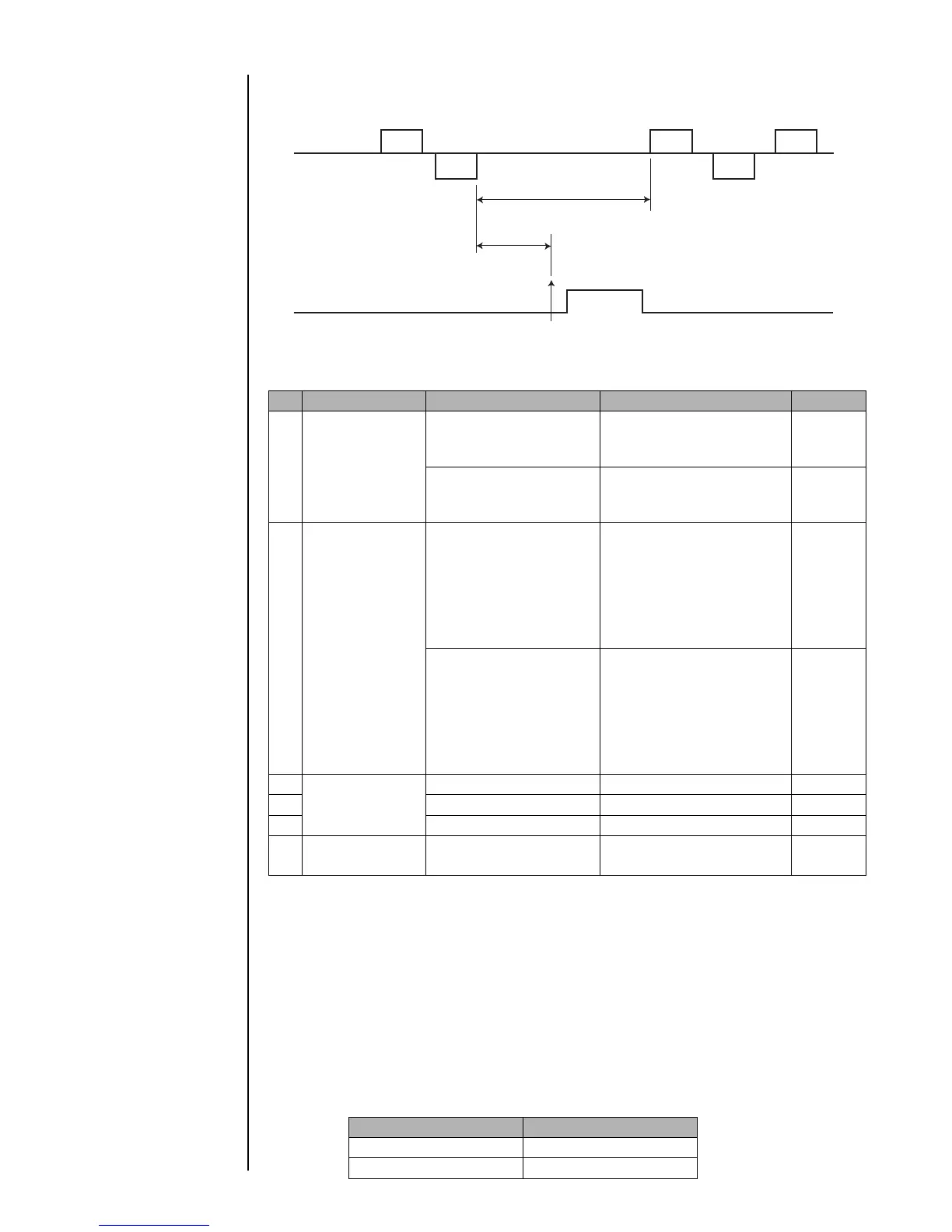

6-46 ● Communication Timing
(2) Time interval (T2) between IJ printer response and printing start
External
device
IJ printer
ENQ STX
ETX
ACK
Print start signal
T2
Printing
operation
No. Transmission type Conditions T2 Maximum time (ms) Remarks
1 Print description
The print message
transfer ACK condition
is t=fixed.
N+15
(N: Number of
communication items)
*4
The print message
transfer ACK condition
is t=async.
0
2 Print data recall
When the character
height, character width,
character orientation,
repeat count, ink drop
use percentage, or print
format changes before or
after recall
400
When the character
height, character width,
character orientation,
repeat count, ink drop
use percentage, or print
format does not change
before or after recall
40
3
Print conditions
Print specifications 400
4 Print format 400
5 Overall column setup 200
6
User pattern
character
-25
● The IJ printer executes an internal process to make printing preparations in accordance with
the received print data. Do not enter the print start signal during internal process execution.
● In the overwrite-protected mode, initiate the next communication after completion of
printing.
● In the overwrite-enabled mode, the next communication can be transmitted during printing,
but the ACK/NAK response does not return until the ongoing printing
operation is complete. (t=async.)
● When a print start signal is input with shorter timing than T2, the fault "Print data
changeover in progress M" occurs.
*3 If the communication time interval is not sufficiently secured, it may not operate normally.
*4 When there is a data matrix setting, the time is as follows:
Time T2 when there is a data matrix setting
Character size T2 Maximum time (ms)
5x8 8x N+20
12x16, 18x24 15x N+40
ACK
5ms(*3)
