Honda 2004 CRF250X Service Manual

A IWfn Of
contam/llafed f loat
valve wIll not seBI
pt0p6rly and will
eventually f lood the
carburetor
Damage to the PIlot
screw seBI wIN
occur If the Pliot
screw IS lightened
agamst lhe sea!

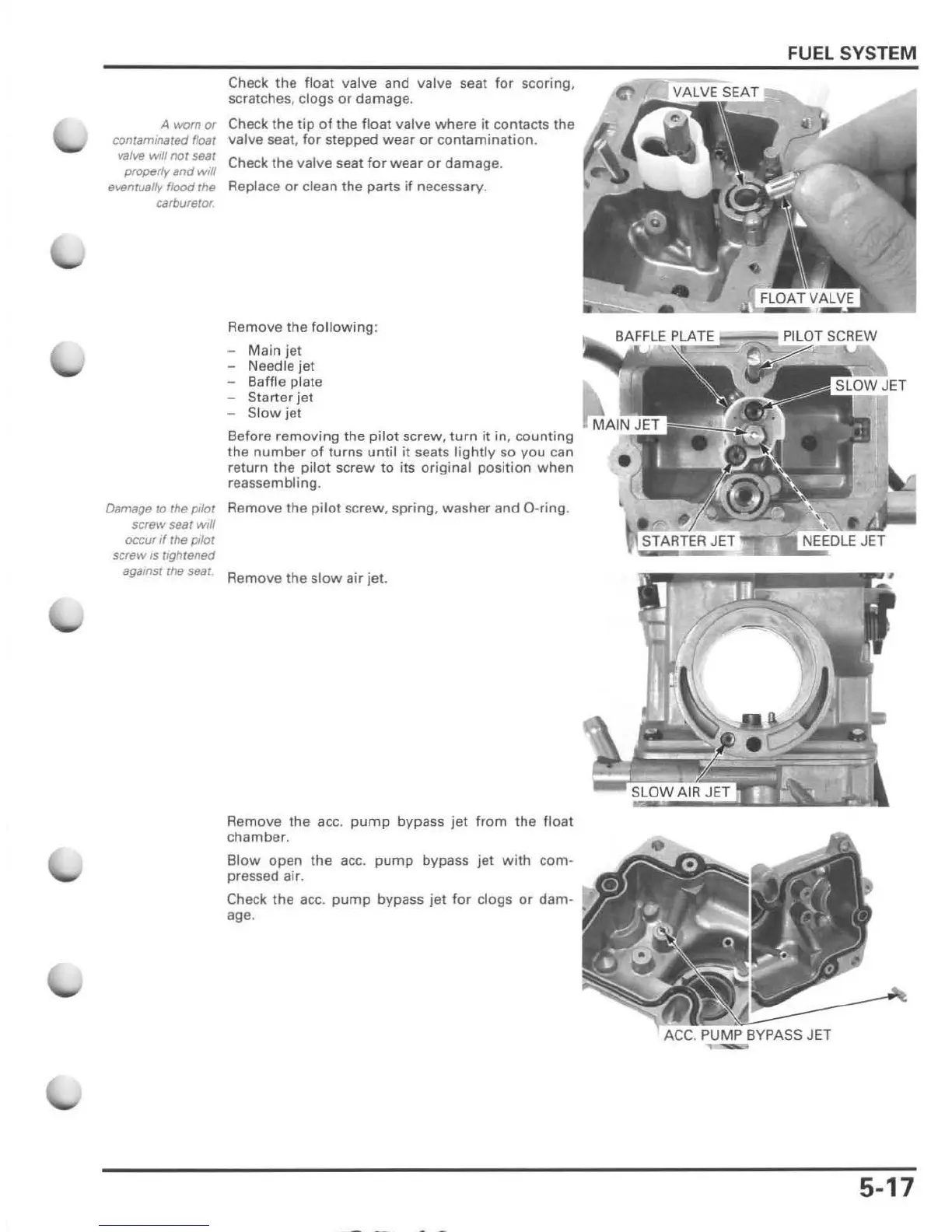

Check the float valve and valve seat for scoring,
scratches, clogs or damage.
Check the tip of the float valve where it contacts the
valve seat, for stepped wear or contamination .
Check the valve seat for wear or damage .
Replace or clean the parts if necessary.
Remove the fo l lowing:
- Main jet
- Needle jet
- Baffle
plate
- Starter jet
- Sl ow jet
Before removing the pilot sc rew, turn it in, counting
the number of turns until it seats lightly so you can
return the pilot screw to its original position when
reassembling.
Remove the pitot screw, spring, washer and O·ring .
Remove the slow air jet.
Remove the acc. pump bypass jet from the float
chamber.
Blow open the acc. pump bypass jet with com -
pressed air.
Check
the acc. pump bypass jet for clogs or dam -
age.
FUEL SYSTEM
5-17

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
