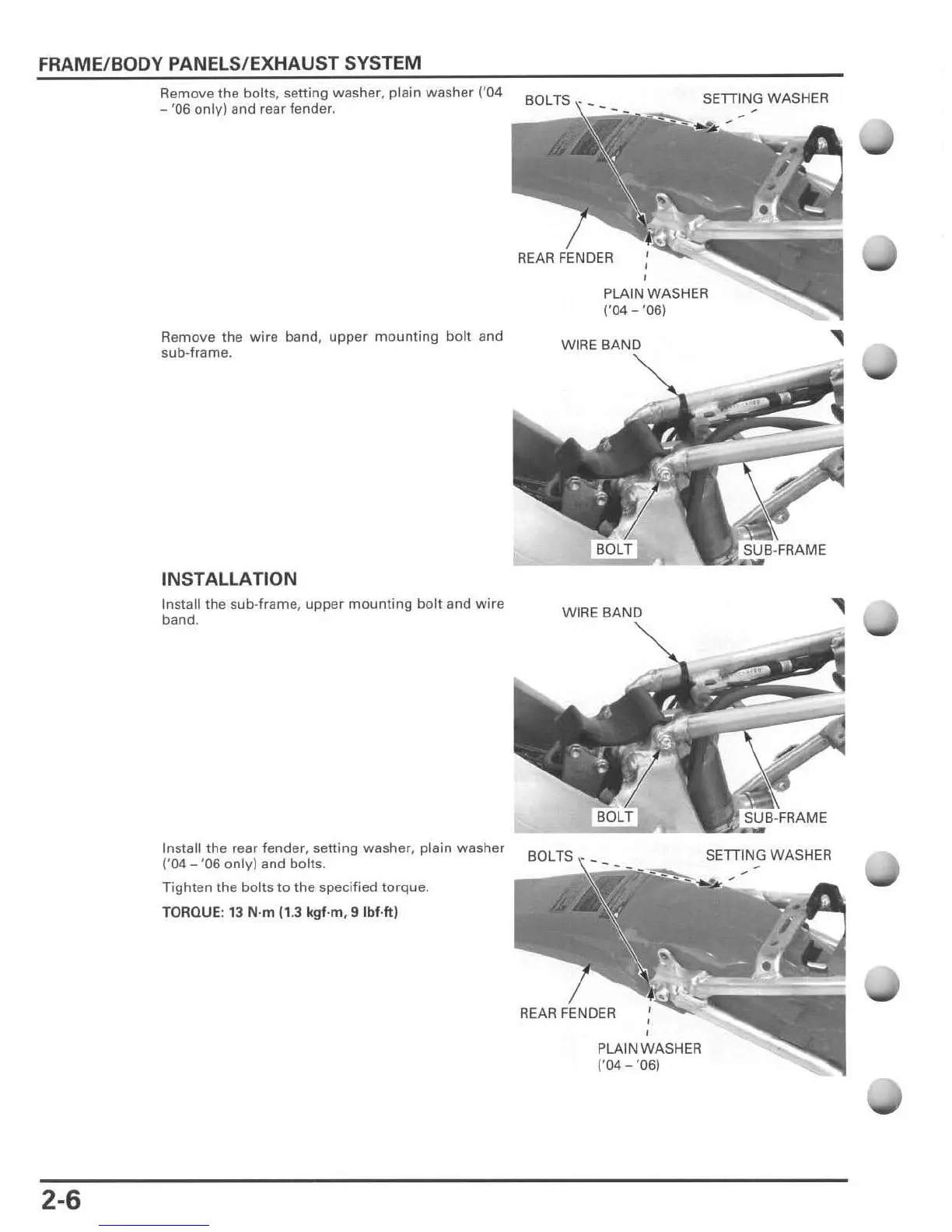

FRAME/BODY PANELS/EXHAUST SYSTEM
2-6
Remove the bolts, setting washer, plain washer ('04
- '06 only) and rear fender.
Remove the wire band, upper mounting bolt and
sub-frame.
INSTALLATION
Install the sub-frame, upper mounting bolt and wire
band.
Install the rear fender, setting washer, plain washer
('04 - '06 only) and bolts.
Tighten the bolts to the specified torque.
TORQU E: 13 N·m (1.3 kgf-m, 9 Ib f.ft J
SETIING WASHER
PLAIN WASHER
('04 - '06)
WIRE
BAND
WIRE
BOLTS
REAR FENDER
PLAIN WASHER
('04 - '06)
SETIING WASHER

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
