FUEL SYSTEM
5-32

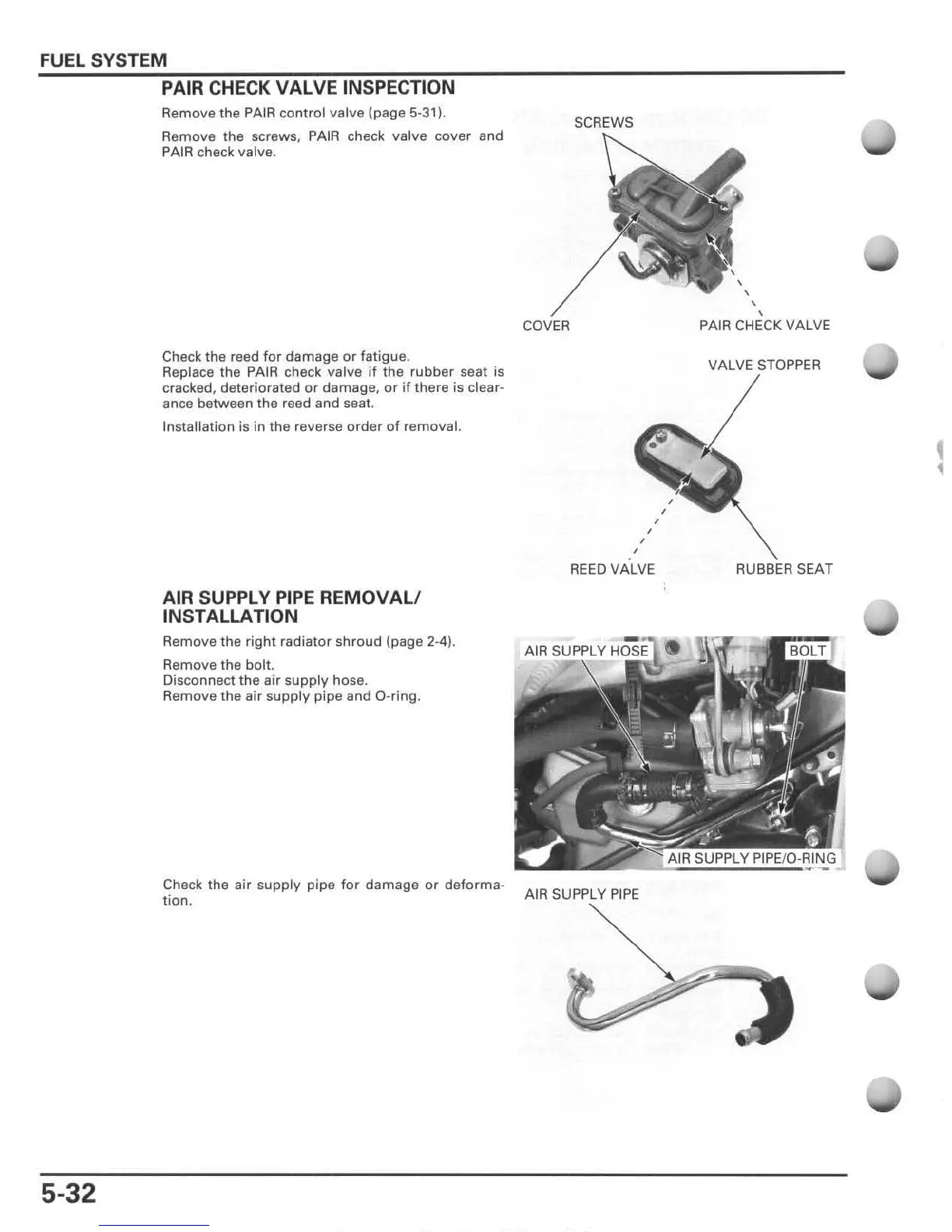

PAIR CHECK VALVE INSPECTION
Remove the PAIR control va lve (page 5-31).
Remove the screws, PAIR check valve cover and
PAIR check valve.
Check the reed for damage or fatigue.
Replace the
PAIR check valve if the rubber seat is
cracked, deteriorated
or damage. or if there is clear-
ance between the reed and sea t.
Installation is in the rever se order of removal.
AIR SUPPLY PIPE REMOVALI
INSTALLATION
Remove the right radiator shroud (page 2-4).
Remove the bolt.
Disconnect the air supply hose.
Remove the
air supply pipe and O-ring.
Check the air supply pipe for damage or deforma -
tion.
SCREWS
,
,
,
REED VALVE
AIR SUIPPLYPI PE
,
PAIR CHECK VALVE
VAL VE "()P"ER
RUBBER SEAT
