Honda 2004 CRF250X Service Manual

111

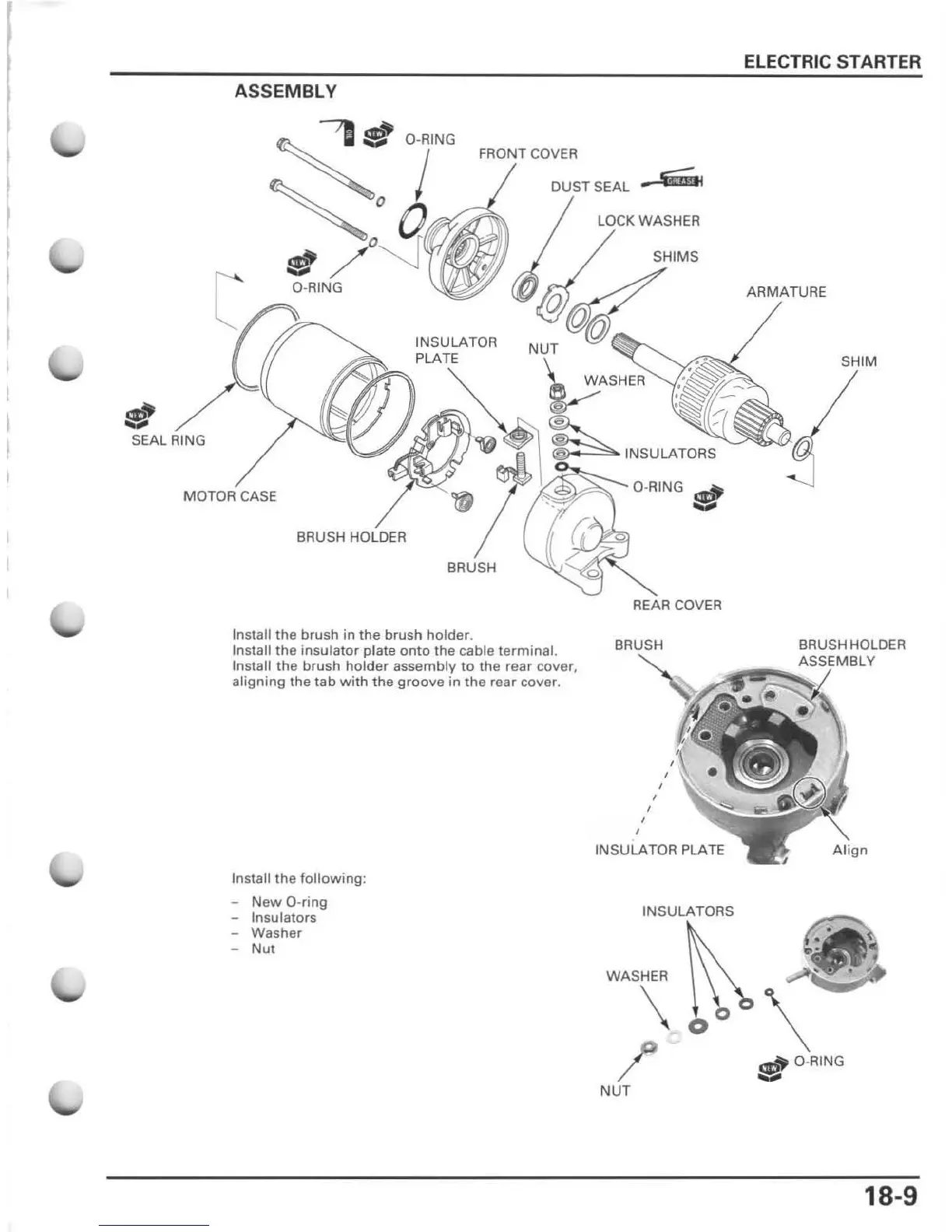

SEAL RING
INSULATOR
/J<~ ~PLATE
MOTOR CASE
BRUSH HOLDER
BRUSH
Install
the brush in the brush holder .
Install
the insulator plate onto the cable terminal.
Install the brush holder assembly to the rear cover,
aligning the
lab with the groove in the rear cover.
Install the following :
- New D-ring
- Insulators
- Washer
- Nut
WASHER
O-RING ~
....
COVER
INSULATOR PLATE
INSULATORS
WASHER
\
/
NUT
ELECTRIC STARTER
SHIM
BRUSH
HOLDER
\
~ O-RING
....
18-9
