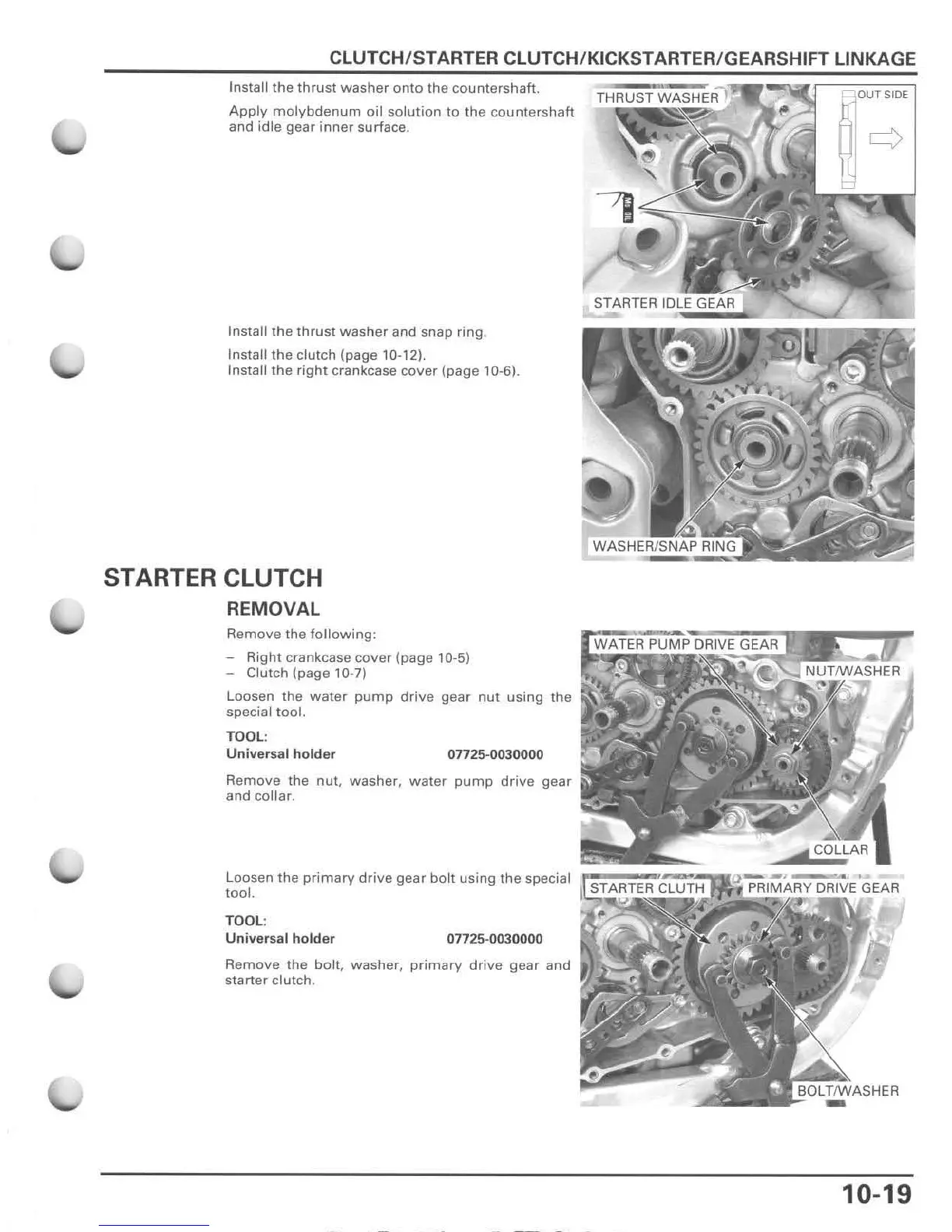

CLUTCH/STARTER CLUTCH/KICKSTARTER/GEARSHIFT LINKAGE
Install
the
thrust
washer
onto
the
countershaft.
Apply
molybdenum
oil
solution
to th
e
coun
tershaft
and
idle
gear
inner
surface.
Install
the
thrust
was
her
and
snap
ring
.
Install
the
clutch
(p
age
10-12).
Install
the
right
crankcase
cover
(p
age
10-6),
STARTER CLUTCH
REMOVAL
Remove
the
fo
l
lowing:
-
Right
crankcase
cover
(page 10-5)
- Clutch (page 10-7)
loosen
the
water
pump
drive
gea
r
nut
using
the
special t
ool.
TOOL
:
Univer
sal
holder
07725-0030000
Remove
the
nut,
washer,
water
pump
drive
gear
and
coltar.
l oosen
the
primary
drive
gear
bolt
us
ing
the
speCial
tool.
TOOL
:
Universal
holder
07725·0030000
Remove
the
bolt,
washer,
primary
drive
gear
and
starter
clutch.
10-19
