Honda 2004 CRF250X Service Manual

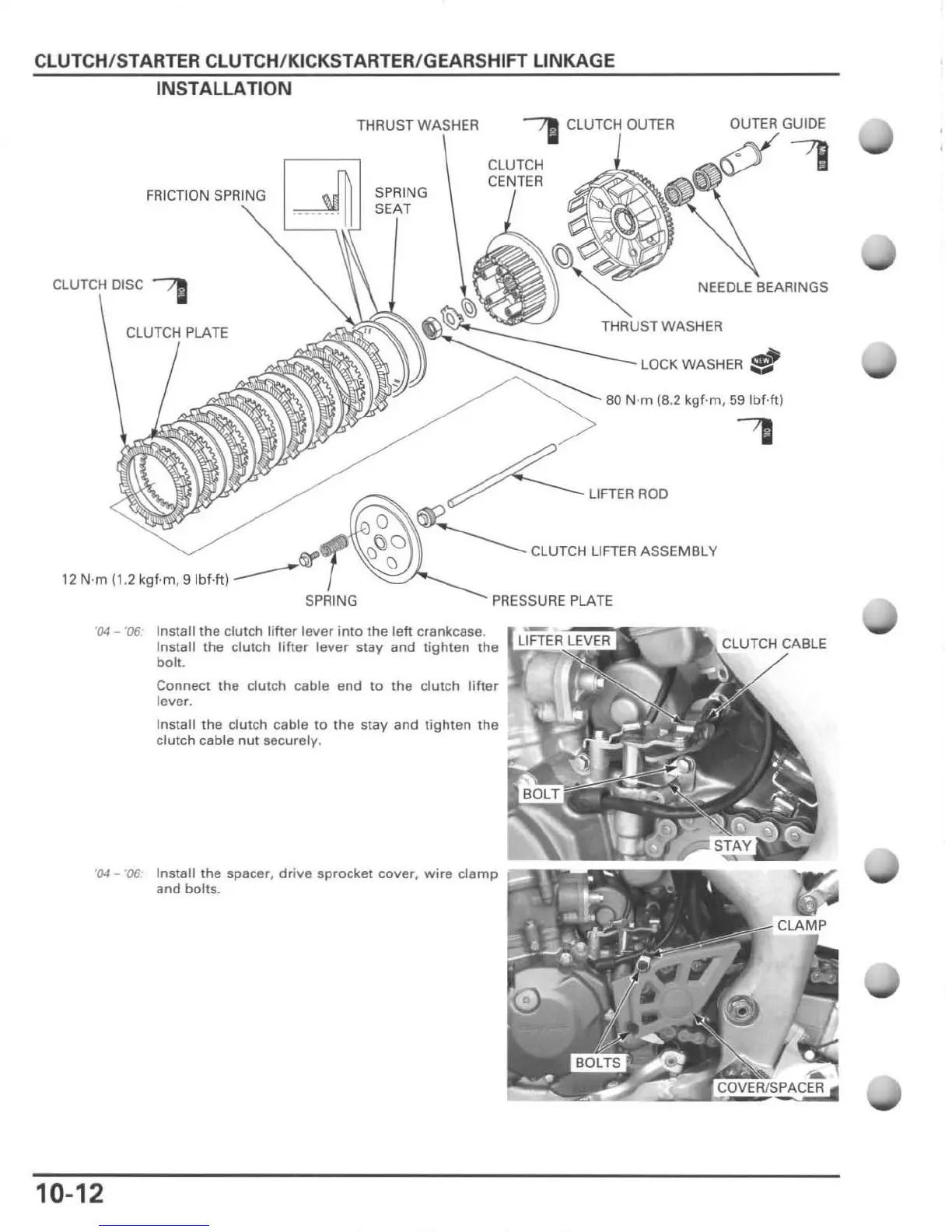

CLUTCH/STARTER CLUTCH/KICKSTARTER/GEARSHIFT LINKAGE
INSTALLATION
THRUST WASHER
DurER.GUIDE
CLUTCH
FRIC TI ON SPRING
CLUTCH DISC -:7J
NEEDLE BEARINGS
~:::::::-=~--::LOCK WASHER II
80 N·m (8.2 kgf·m, 59 lbf.ft)
LIFTER ROO
ClUTC H UFTER ASSEMBLY
12 N·m (1.2 kgf·m, 9Ibf-ft)
SPRING PRESSURE PLATE
' 04 - '06 Install the clutch lifter lever into the left crankcase. r ~ ~~~: ~
Install the clutch lifter lever stay and tighten the •
bolt.
Connect the dut ch c able end to the dut ch lifter
lever.
Install the clutch cable to the stay and tighten the
dutch cable nut securely.
' 04 - '06 Install the spacer, drive sprocket cover , wire clamp
and bolts.
10-12
