Honda 2004 CRF250X Service Manual

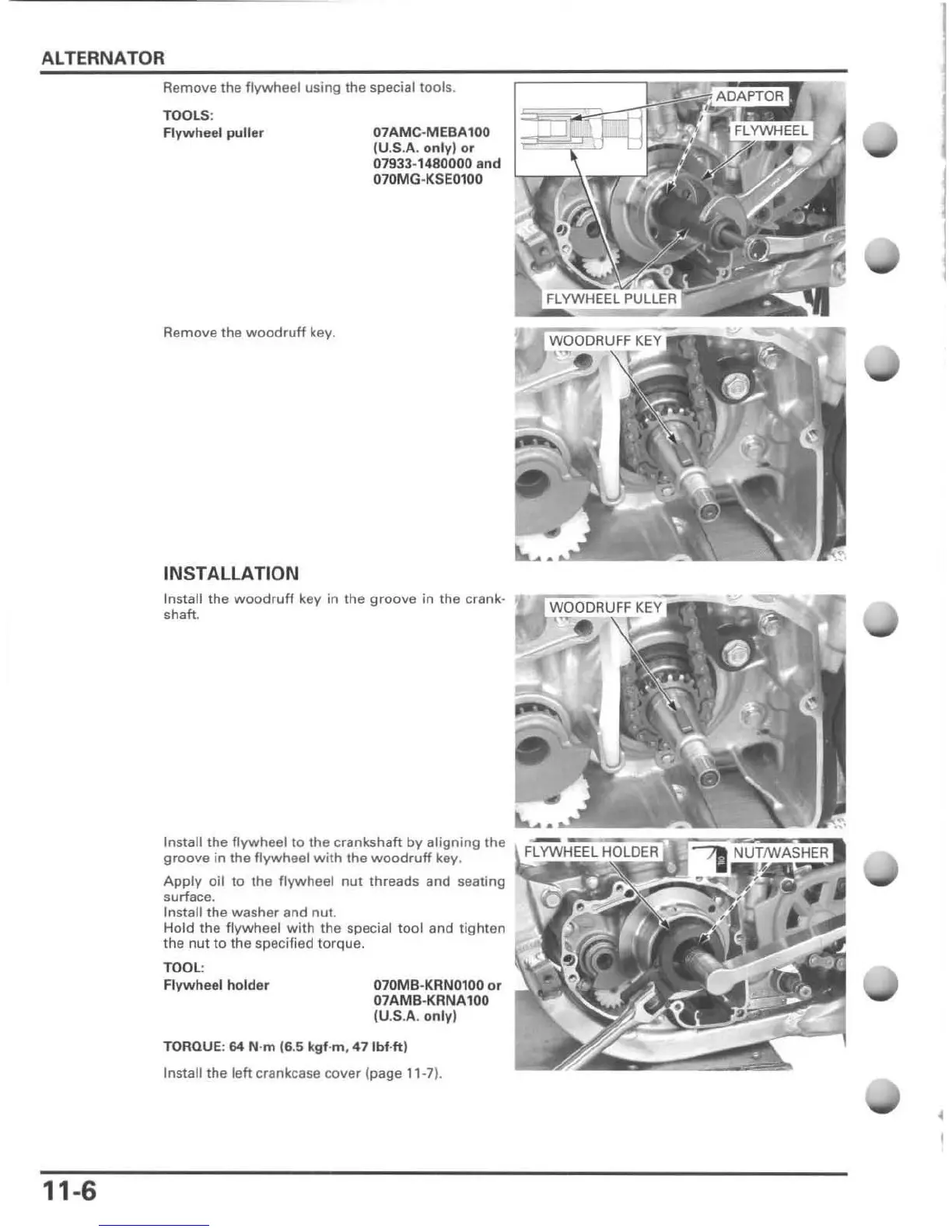

ALTERNATOR
11-6
Remove the flywheel using the special tools .
TOOLS:
Flywheel puller
Remove the woodruff key.
INSTALLATION
07AMC -MEBA100
(U.S.A.
only) or
07933·1480000 and
070MG·KSE0100
Install the woo d ruff key in the groove in the crank-
shaft.
Install the flywheel to the crankshaft by aligning the
groove in the fl ywheel with the wood r uff key.
Apply oil to the flywheel nut threads and seating
surface.
Install the was h er and nut.
H old t he f lywheel with the special tool and tigh ten
the nut to the sp ec ified tor que.
TOOL :
Flywheel holder
070MB·KRN0100 or
07AMB·KRNA100
(U.S.A. only)
TORQUE: 64 N'm (6.5 kgf -m , 47 Ibf.ft)
Install
the left crankcase cover (page 11-7),

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
