Honda 2004 CRF250X Service Manual

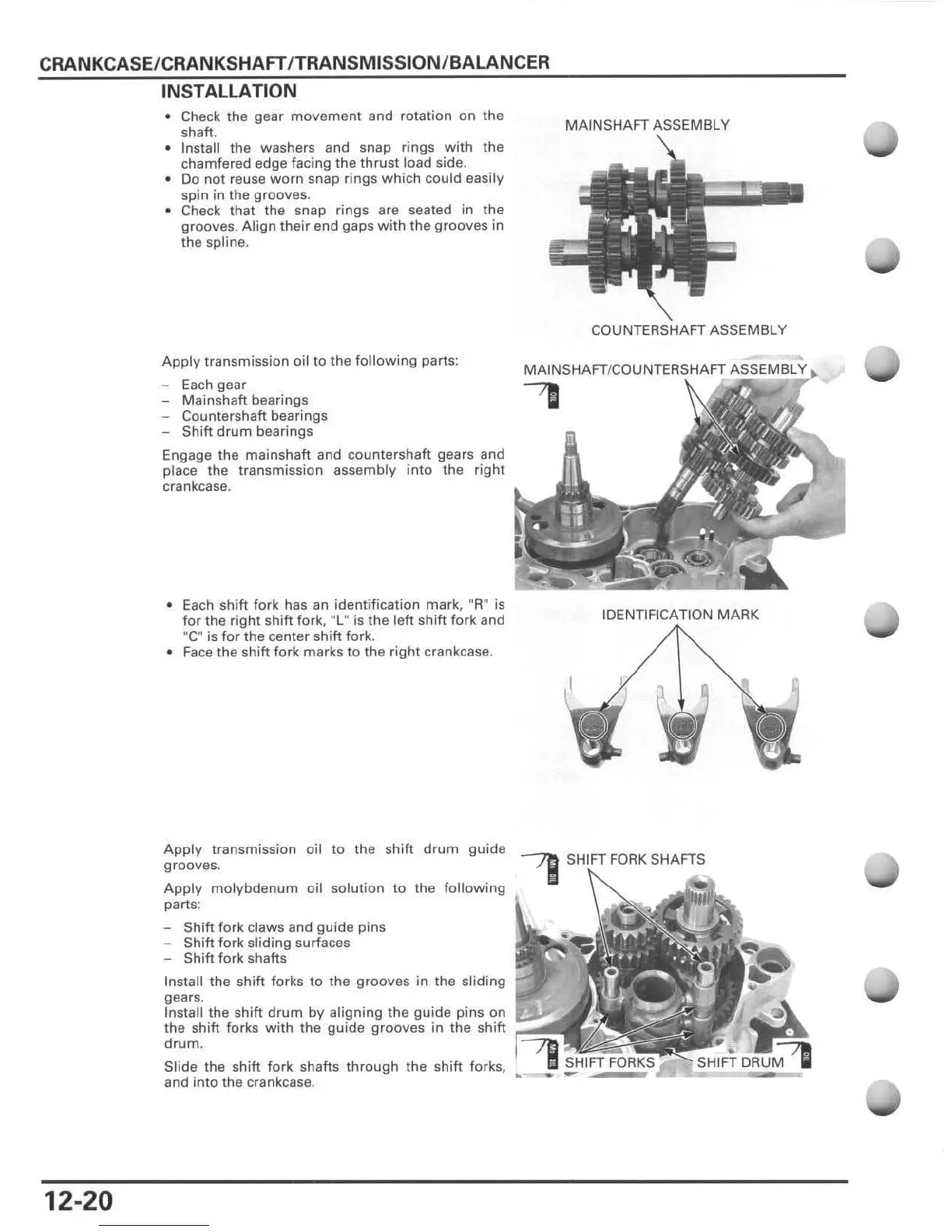

CRANKCASE/CRANKSHAFT/TRANSMISSION/BALANCER
12-20
INSTALLATION
• Check the gear movement and rotat ion on the
shaft.
• Install the washers and snap rings with the
chamfered edge facing the thrust load side.
• Do not reuse worn snap rings which co uld easily
spin in the grooves.
• Check that the snap rings are seated in the
grooves. Align their end gaps with the grooves in
the spline.
Apply transmission oil to the following parts:
- Each gear
- Mainshaft bearings
- Countershaft bearings
-
Shift drum bearings
Engage
the mainshaft and countershaft gears and
place the transmission assembly into the right
crankcase.
• Each shift fork has an identification mark, "Rn is
for the right shift fork, "l " is the left shift fork and
"C" is for the center shift fork.
• Face the shift fork marks to the r ight crankcase.
Apply transmission oil to the shift drum guide
grooves.
Apply molybdenum oi l solution to the following
parts:
- Shift fork claws and guide pins
- Shift fork sliding surfaces
- Shift fork shafts
Install the shift forks to the grooves in the sliding
gears.
Install the shift drum by aligning the guide pins on
the shift forks with the guide grooves in the shift
drum.
MAINSHAFT ASSEMBLY
COUNTERS
HAFT ASSEMBLY
MAINSHAFT/COUNTERSHAFT ASSEMBLY
-,
IDENTIFICATION MARK
, SHIFT FORK SHAFTS
Slide
the shift fork shafts through the shift forks,
and
into the crankcase. ..

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
