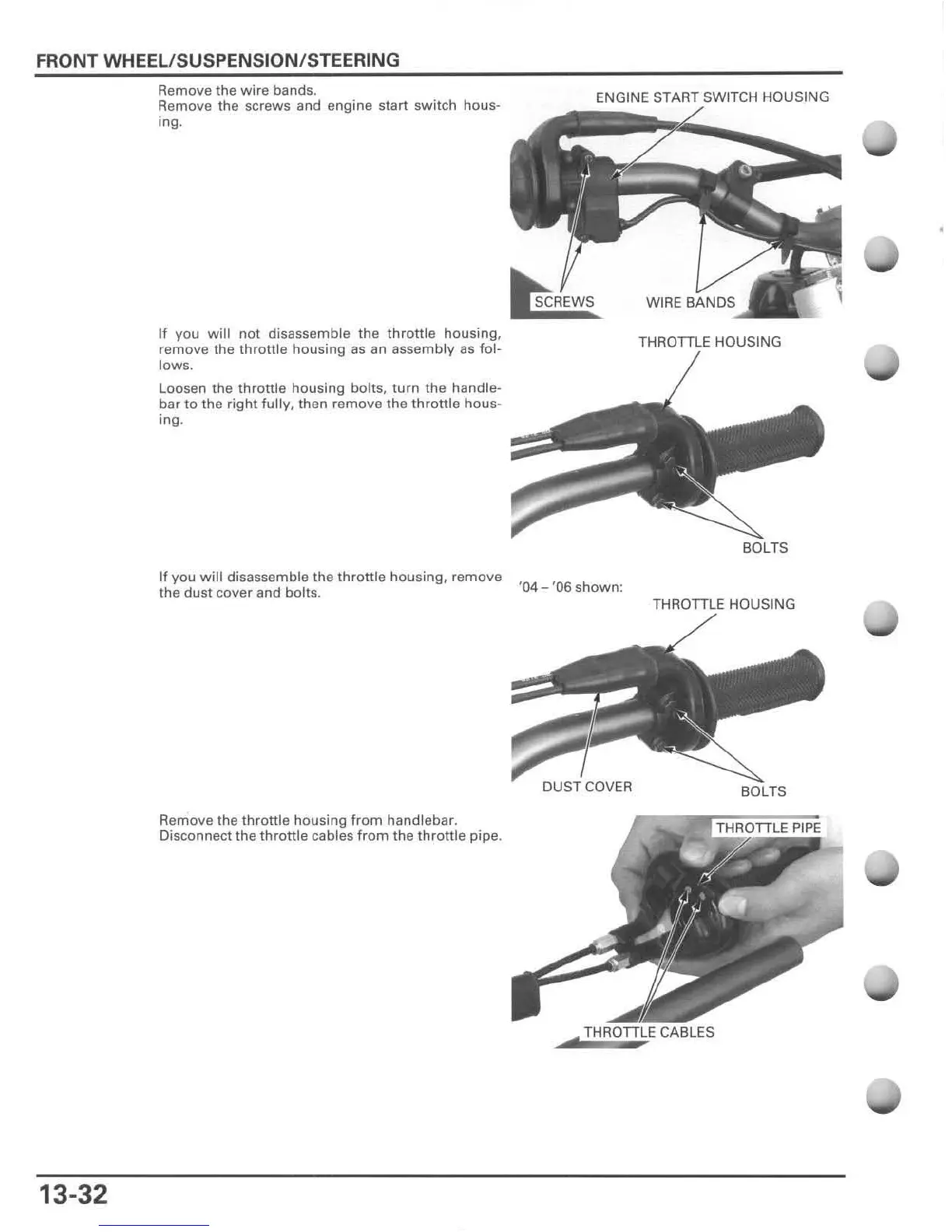

Honda 2004 CRF250X Service Manual

FRONT WHEEL/SUSPENSION/STEERING
13-32
Remove the wire bands.
Remove the screws and engine start switch hous-
ing.
If you will nol disassemble the throttle housing,
remove the throttle housing as an assembly as fol-
lows.
Loosen the throttle housing bolts, turn the handle-
bar to the right fully, then remove the throWe hous-
ing.
If you will disassemble the throttle housing, remove
the dust cover and bolts.
Remove the throttle housing from handlebar.
Disconnect the throttle cables from the throttle pipe.
ENGINE START SWITCH HOUSING
•
THROTILE HOUSING
BOLTS
'04 - '06 shown:
TH"OTTLE HOUSING
DUST COVER

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
