Honda 2004 CRF250X Service Manual

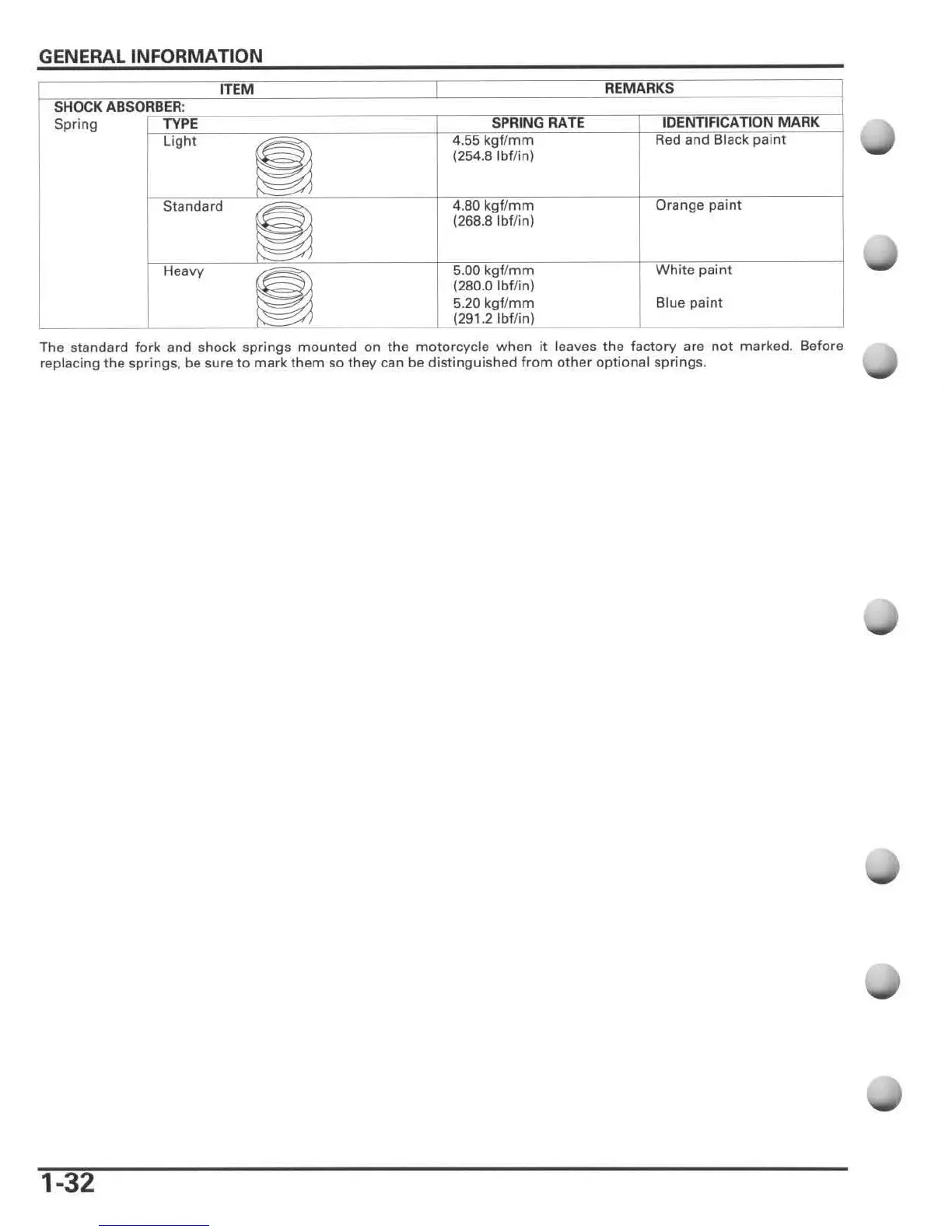

GENERAL INFORMATION
ITEM
SHOCK ABSORBER :
Sp ri ng r- i-, TY " P '" E :-- --- ~ ---:
light ~
Standard
~
SPRING RATE
4.55 kgf / mm
(254.8 I bf /in)
4.80 kg f/ mm
(268.8Ibf /in)
REMARKS
IDENTIFICA nON MARK
Red an d Brack pa int
Orange paint
~ cH~e ~ a ~ vy ~ ----~ ~~ ~ ~-------- -----+ -'5 . "O~O'k ~ g~Y ~ m ~ m ~ ----------~ ' VV "" h " ;t ~ e ~ p ~ a~;n~t -------- ----
~
:::::r (280. 0Ibf /in)
~ 5. 20 kgf / mm
:/< 129 1.21bll;nl
Blue paint
The standard fork and shock springs mounted on the moto rcyc le when it leav es the factory are n ot marked. Before
replacing the springs, be sure to mark th em so they ca n be distinguished fr om other optional springs.
1-32

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
