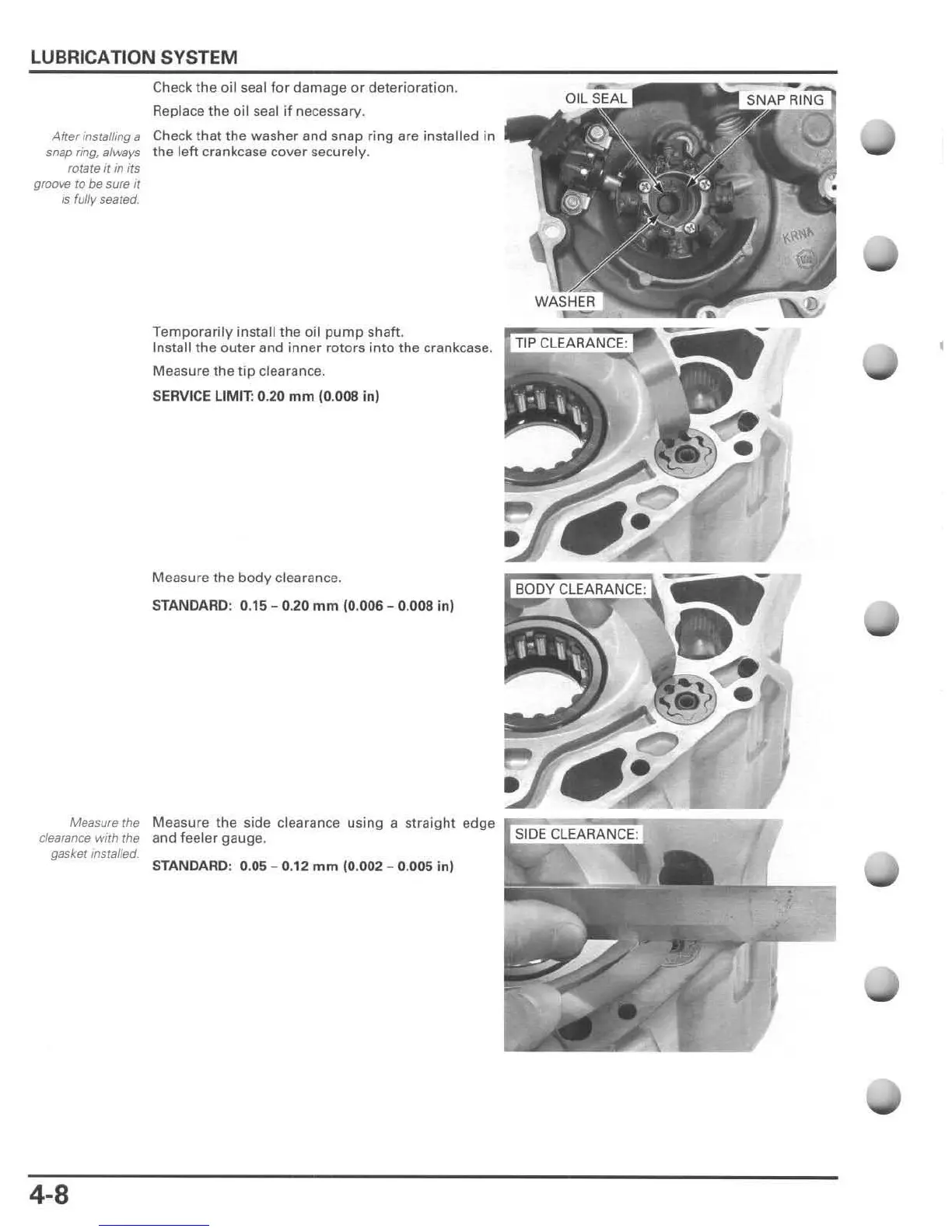

LUBRICATION SYSTEM
Check the oil seal for damage or deterioration .
Replace the oil seal if necessary.
Aher Installing a Check that the washer and snap ri ng afe installed in
snap ring, always the left crankcase cover securely.
fOtate it in its
grOOllB to be sure It
IS fully seated.
Measure the
clearance with the
gasket
ins/ailed.
4-8
Temporar ily install the oil pump shaft.
Install the outer and inner rotors into the crankcase.
Measure
the tip clearance.
SERVICE LIMIT: 0 .2 0 mm !0.008 in)
Measure the body clearance.
STANDARD: 0.15 - 0 .2 0 mm (0.006 - 0.008 in)
Measure the side clearance using a straight edge
and feeler gauge .
STANDARD: 0. 05 - 0. 12 mm (0 .002 - 0.005 in)
