ALTERNATOR/STARTER CLUTCH
13-4
RIGHT CRANKCASE COVER
REMOVAL
Remove the following:
– luggage box (page 3-5)
– floor side cover (page 3-8)
– under cover (page 3-9)
– exhaust pipe/muffler (page 3-15)
Drain the engine oil (page 4-11).
Drain the coolant (page 7-7).
Disconnect the alternator 3P connector and CKP
sensor 2P (red) connector.
Remove the wire band from the stay.
Release the alternator/CKP sensor wire from the
wire guide and remove them out of the frame.
Remove the two washer bolts and ignition coil
cover.
Remove the two ignition coil stay washer bolt from
the right crankcase.

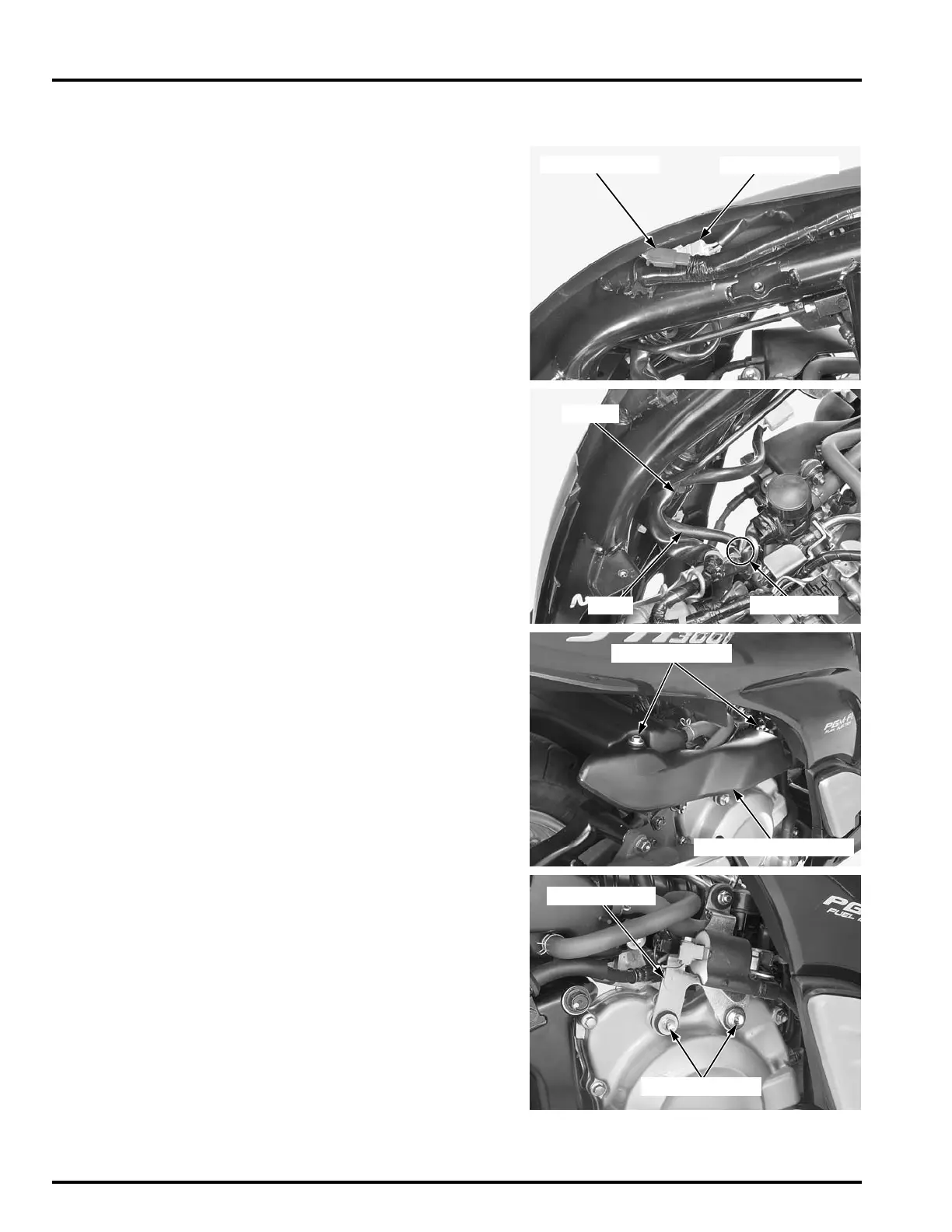

2P CONNECTOR
3P CONNECTOR
WIRE
CLAMP
WIRE BAND
IGNITION COIL COVER
WASHER BOLTS
IGNITION COIL
WASHER BOLTS

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
