ALTERNATOR/STARTER CLUTCH
13-9
FLYWHEEL/STARTER CLUTCH
REMOVAL

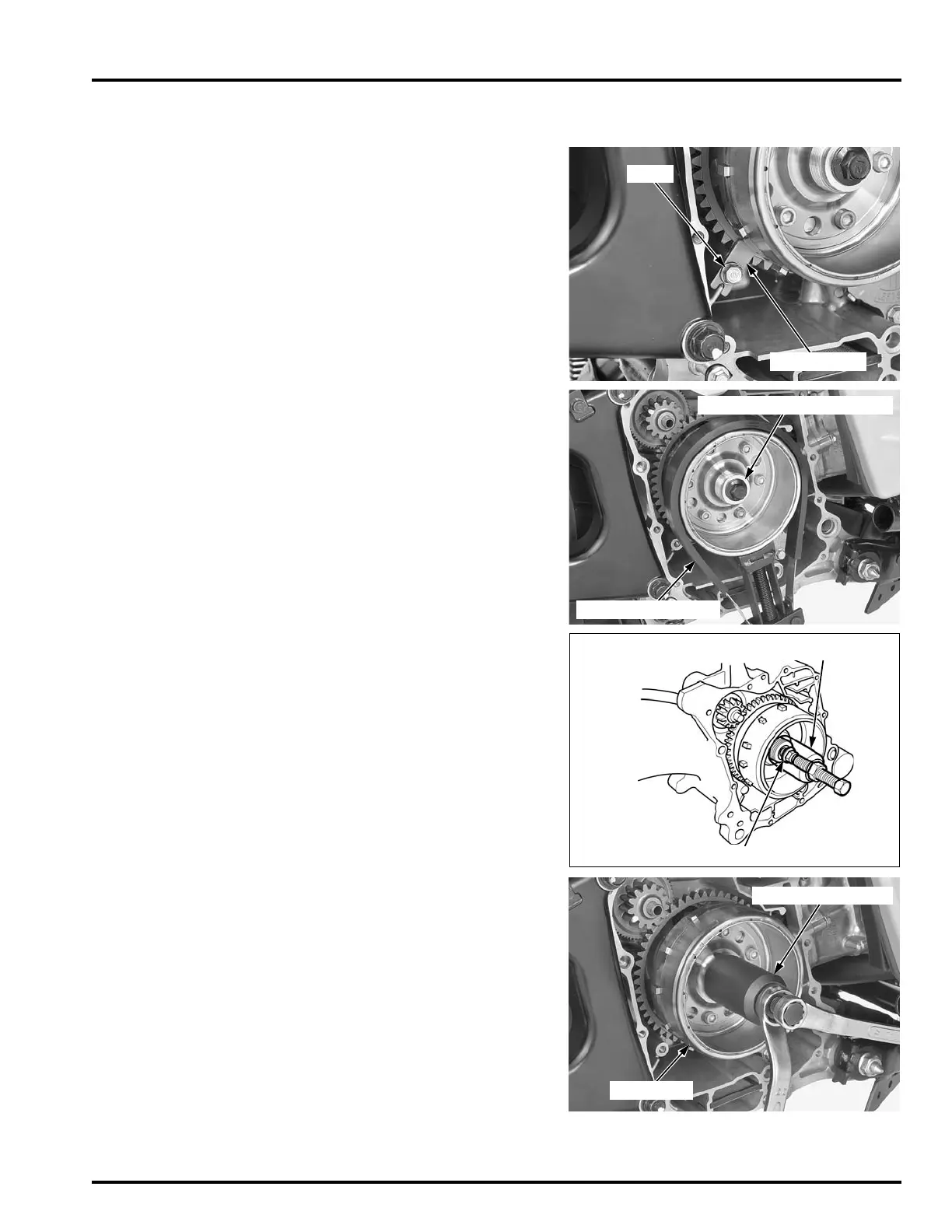

Remove the right crankcase cover (page 13-4).
Remove the bolt and starter driven gear guide.
Hold the flywheel with the special tool and loosen
the flywheel bolt.
Remove the flywheel bolt and washer.
Screw the flywheel bolt in until its threads are not
visible, then install a special tool.
Slide off the flywheel from the crankcase using the
flywheel puller.
Remove the flywheel puller, bolt and flywheel.
BOLT
GEAR GUIDE
TOOL:
Flywheel holder 07725-0040001
FLYWHEEL BOLT/WASHER
FLYWHEEL HOLDER
TOOL:
Flywheel puller 07933-KM10001
FLYWHEEL PULLER
FLYWHEEL BOLT
FLYWHEEL PULLER
FLYWHEEL

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
