HYDRAULIC BRAKE
17-14

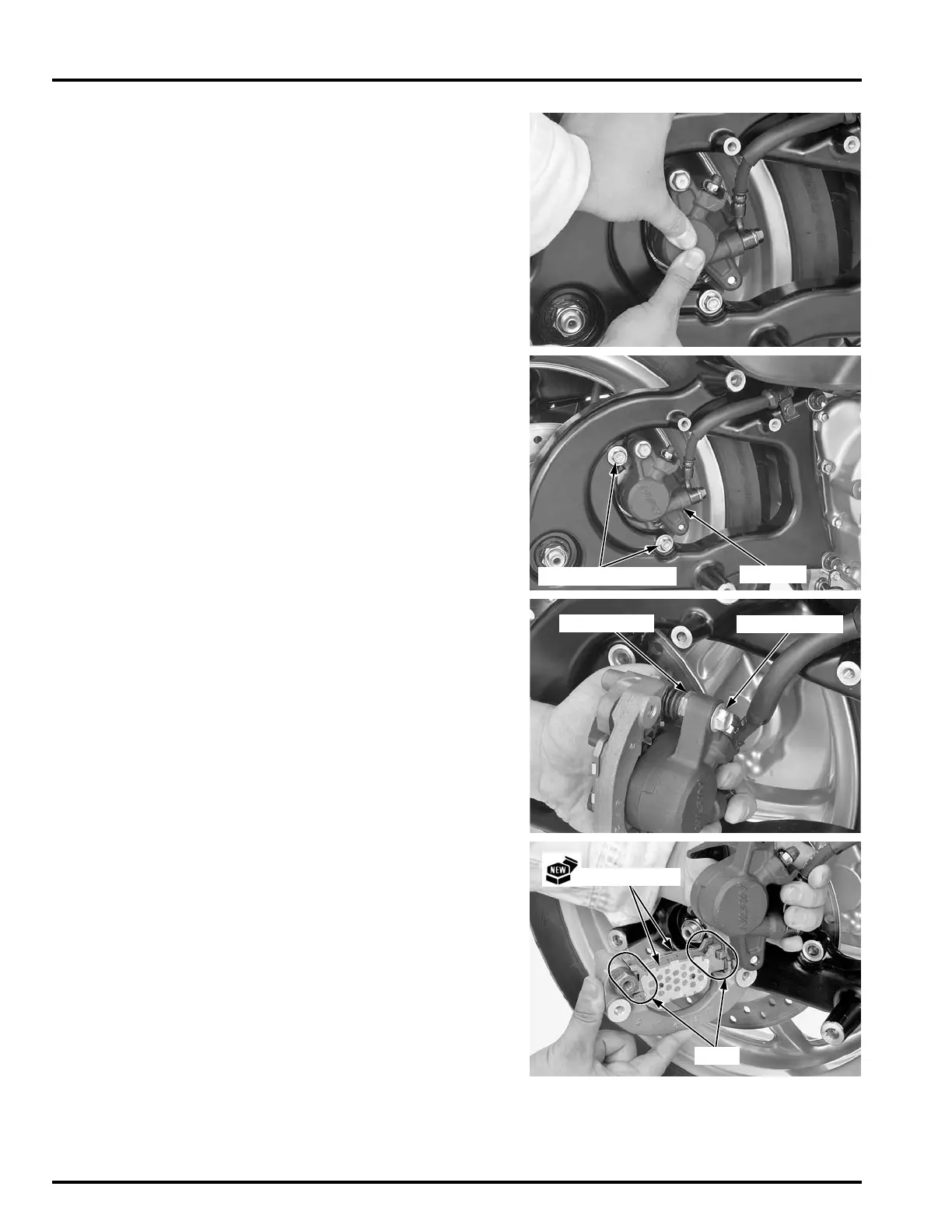

REAR
Remove the following:
– exhaust pipe/muffler (page 3-15)
– brake hose protector (page 16-5)
Push the caliper piston all the way in to allow instal-
lation of new brake pads.
Remove the rear caliper mounting bolts and rear
brake caliper from the swingarm.
Hold the rear caliper pin and remove the rear caliper
bolt.
Remove the brake pads.
Clean the inside of the caliper especially around the
caliper piston.
Install new pads so that their ends are set in the pad
retainers on the caliper bracket properly.
Check the fluid level
in the master cylin-
der reservoir as this
operation causes
the fluid level to
rise.
CALIPER
MOUNTING BOLTS
CALIPER PIN
CALIPER BOLT
Always replace the
brake pads in pairs
to ensure even disc
pressure.
BRAKE PADS
Align

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
