Honda SH300 2009 User Manual

MAINTENANCE
4-13

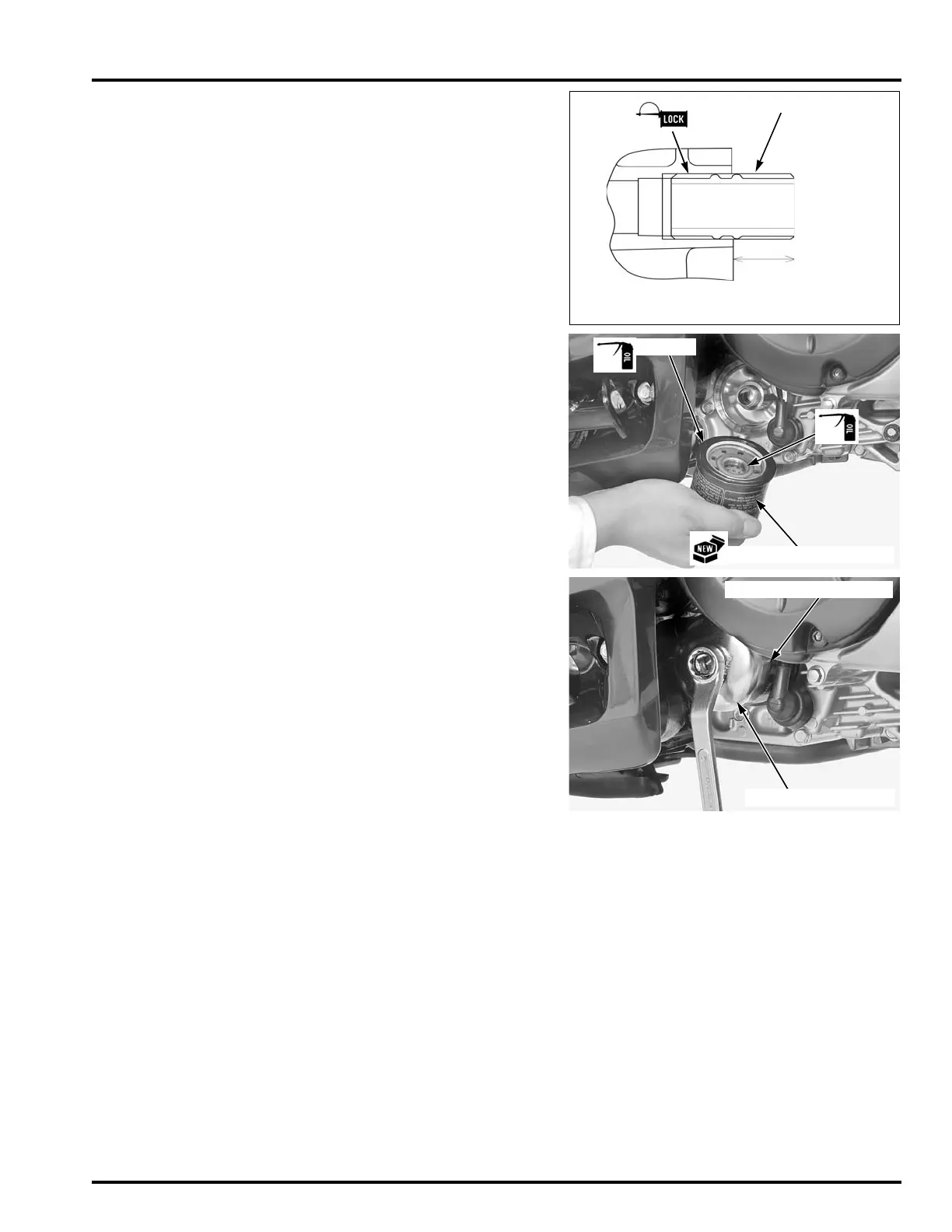

Check that the oil filter boss protrusion from the
crankcase is specified length as shown.
When removing the oil filter boss, apply locking
agent to the threads (page 1-16).
Install and tighten the oil filter boss to the specified
torque.
Check that the oil filter boss protrusion from the
crankcase is specified length (See above).
Apply clean engine oil to new oil filter cartridge
threads and O-ring.
Install the oil filter and tighten it to the specified
torque.
Refill the engine oil (page 4-11).
SPECIFIED LENGTH: 16 – 17 mm (0.6 – 0.7 in)
TORQUE: 18 N·m (1.8 kgf·m, 13 lbf·ft)
16 – 17 mm
(0.6 – 0.7 in)
OIL FILTER BOSS
OIL FILTER CARTRIDGE
O-RING
TOOL:
Oil filter wrench 07HAA-PJ70101
TORQUE: 26 N·m (2.7 kgf·m, 19 lbf·ft)
OIL FILTER WRENCH
OIL FILTER CARTRIDGE

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
