Making Measurements
Making PDH Analysis Measurements
Making PDH Analysis Measurements

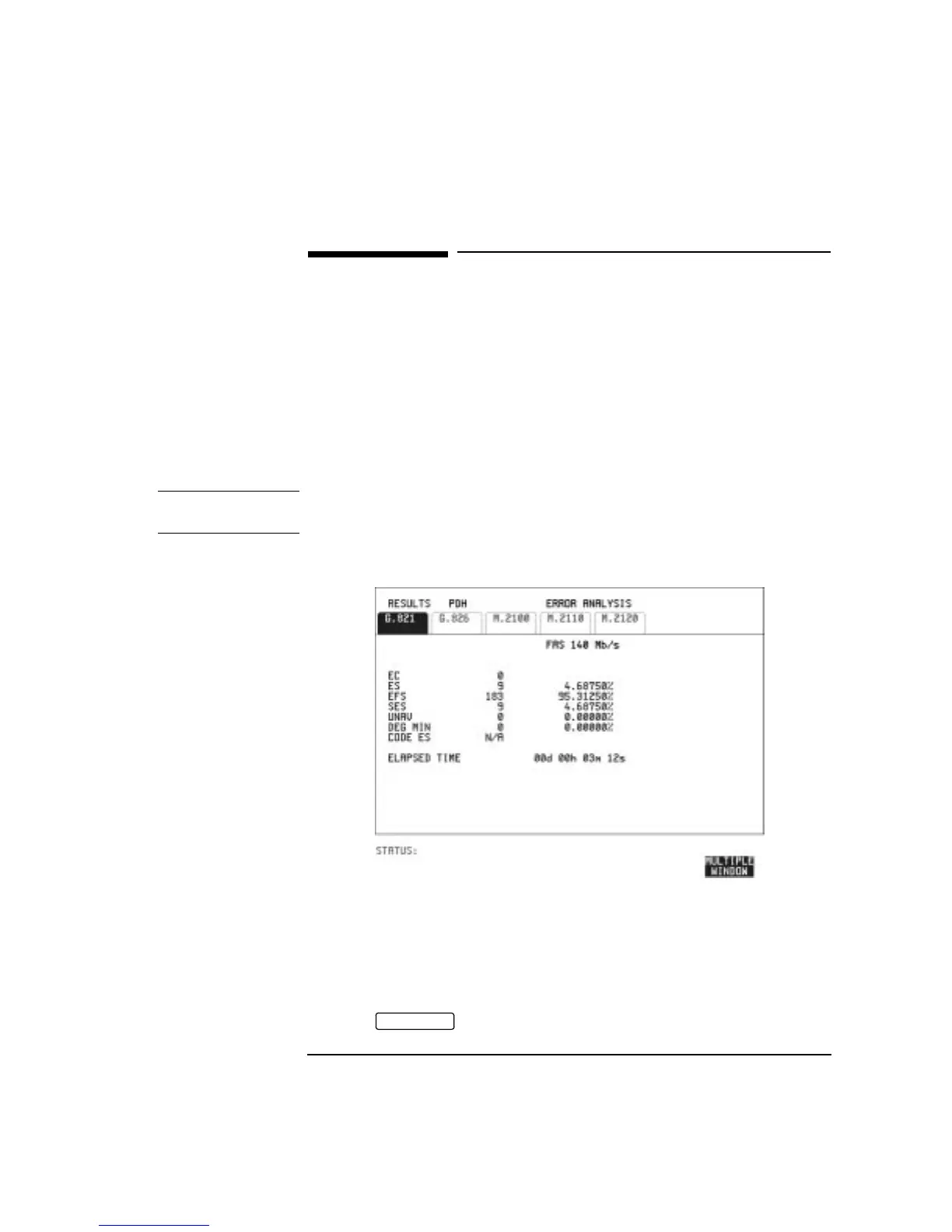

Description G.821, G.826, M.2100, M.2110 and M.2120 analysis results are provided
for all relevant PDH and PDH Payload error sources.
In addition the following results are provided:
Cumulative error count and error ratio
Short Term error count and error ratio
Alarm Seconds
SIG/BIT Monitor refer to "Monitoring Signaling Bits " page 95
NOTE G.826, M.2100, M.2110 and M.2120 are only available if Option UKJ,
Structured PDH is fitted.
HOW TO: 1 If SDH or SONET (option 120) is chosen as the interface, set up the
Transmit Interface and Payload, and also the Receive Interface and
Payload required.
2 If PDH is chosen as the interface, set up the PDH transmit interface,
and the PDH receive interface required.
3 Press to start the measurement.
RUN/STOP
