HP 5384A Service Manual

•
•
•
HP 5384A and HP 5385A
General Information

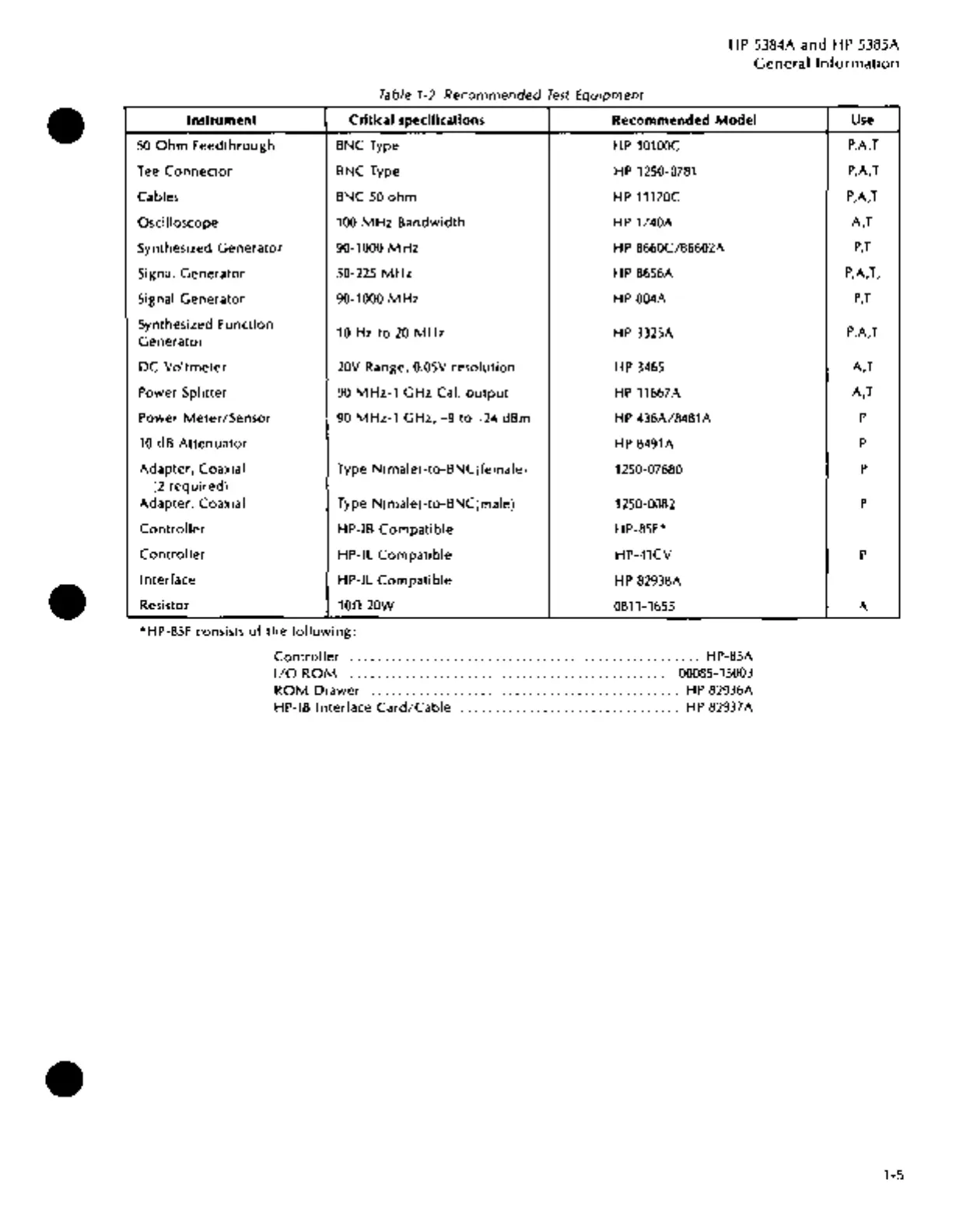

Table 1-2. Recommended Test Equipment
Instrument Critical specifications Recommended Model
Use
50 Ohm Feedthrough BNC Type
HP 10100C
P,A,T
Tee Connector BNC Type HP 1250-0781
P,A,T
Cables
BNC 50 ohm
HP 11170C
P,A,T
Oscilloscope
100 MHz Bandwidth
HP 1740A
A,T
Synthesized
Generator
90-1000 MHz H P 8660C /86602A
P,T
Signal Generator
50-225 MHz HP 8656A
P,A,T,
Signal
Generator
90-1000 MHz HP 804A
P,T
Synthesized Function
10 Hz to 20 MHz
HP 3325A
P,A,T
Generator
DC Voltmeter 20V Range, 0.05V resolution
HP 3465
A,T
Power Splitter
90 MHz-1 GHz Cal. output
HP 11667A
A,T
Power Meter/Sensor 90 MHz-1 GHz, -9 to -24 dBm
HP 436A/8481A
p
10 dB Attenuator
HP 8491A
p
Adapter, Coaxial Type N(male)-to-BNC(female)
1250-07680
p
(2 required)
Adapter, Coaxial
Type N(male)-to-BNC(male)
1250-0082
p
Controller
HP-IB Compatible
HP-85F*
Controller
HP-IL Compatible HP-41CV
p
Interface
HP-IL
Compatible
HP 82938A
Resistor
10!1 20W
0811-1655 A
*HP-85F consists of the following:
Controller ................................................... HP-85A
1/0 ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00085-15003
ROM Drawer ............................................. HP 82936A
HP-IB Interface Card/Cable ................................ HP 82937A
1-5
