HP 5384A Service Manual

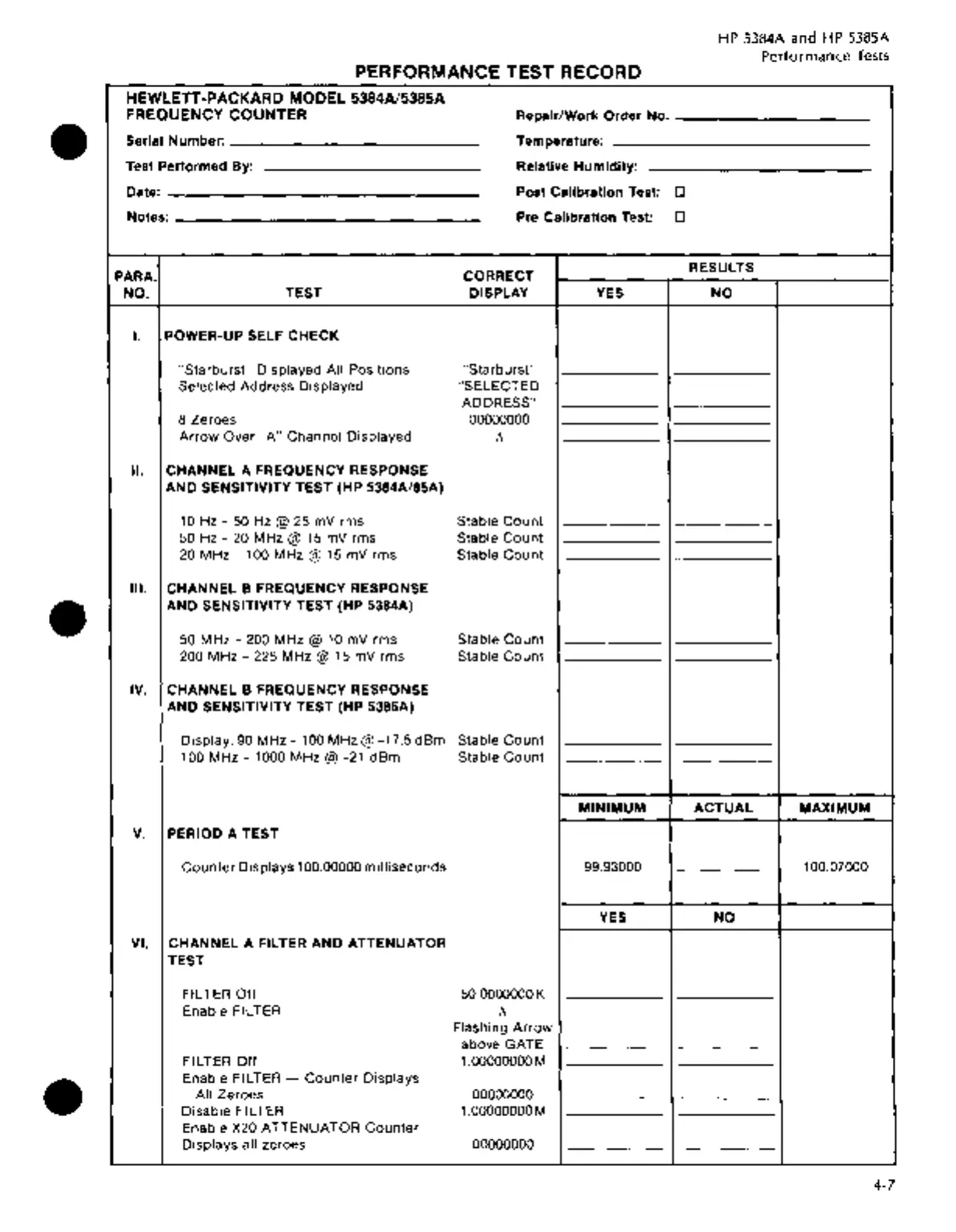

PERFORMANCE TEST RECORD
HEWLETT-PACKARD MODEL 5384A/5385A
FREQUENCY COUNTER
Repair/Work Order No .
•
Serial Number: Temperature:
Test Performed By:
Relative Humidity:
Date: Post
Calibration Test:
Notes:
Pre
Calibration Test:
PARA.
CORRECT
NO.
TEST
DISPLAY YES
I.
POWER-UP SELF CHECK
"Starburst" Displayed All Positions
"Starburst"
Selected Address Displayed
"SELECTED
ADDRESS"
8 Zeroes 00000000
Arrow Over "A" Channel Displayed
A
II.
CHANNEL
A FREQUENCY RESPONSE
AND SENSITIVITY TEST (HP 5384A/85A)
10 Hz - 50 Hz @ 25 mV rms Stable Count
50 Hz- 20 MHz@ 15 mV rms Stable Count
20 MHz- 100 MHz@ 15 mV rms Stable Count
Ill. CHANNEL B FREQUENCY RESPONSE
·-
AND SENSITIVITY TEST (HP 5384A)
50 MHz- 200 MHz @ 10 mV rms Stable Count
200 MHz- 225 MHz@ 15 mV rms Stable Count
IV. CHANNEL B FREQUENCY RESPONSE
AND SENSITIVITY TEST (HP 5385A)
Display,
90 MHz- 100 MHz@ -17.5 dBm
Stable Count
100 MHz -1000 MHz@ -21 dBm Stable Count
MINIMUM
v. PERIOD A TEST
Counter Displays 100.00000 milliseconds 99.93000
YES
VI.
CHANNEL
A FILTER AND ATTENUATOR
TEST
FILTER
Off 50.0000000 K
Enable
Fl L TER A
Flashing Arrow
above GATE
FILTER Off
1.00000000 M
••
Enable FILTER- Counter Displays
All Zeroes
00000000
Disable FILTER 1.00000000 M
Enable
X20 ATTENUATOR Counter
Displays all zeroes 00000000
0
0
HP 5384A and HP 5385A
Performance
Tests
RESULTS
NO
ACTUAL MAXIMUM
100.07000
NO
4-7
