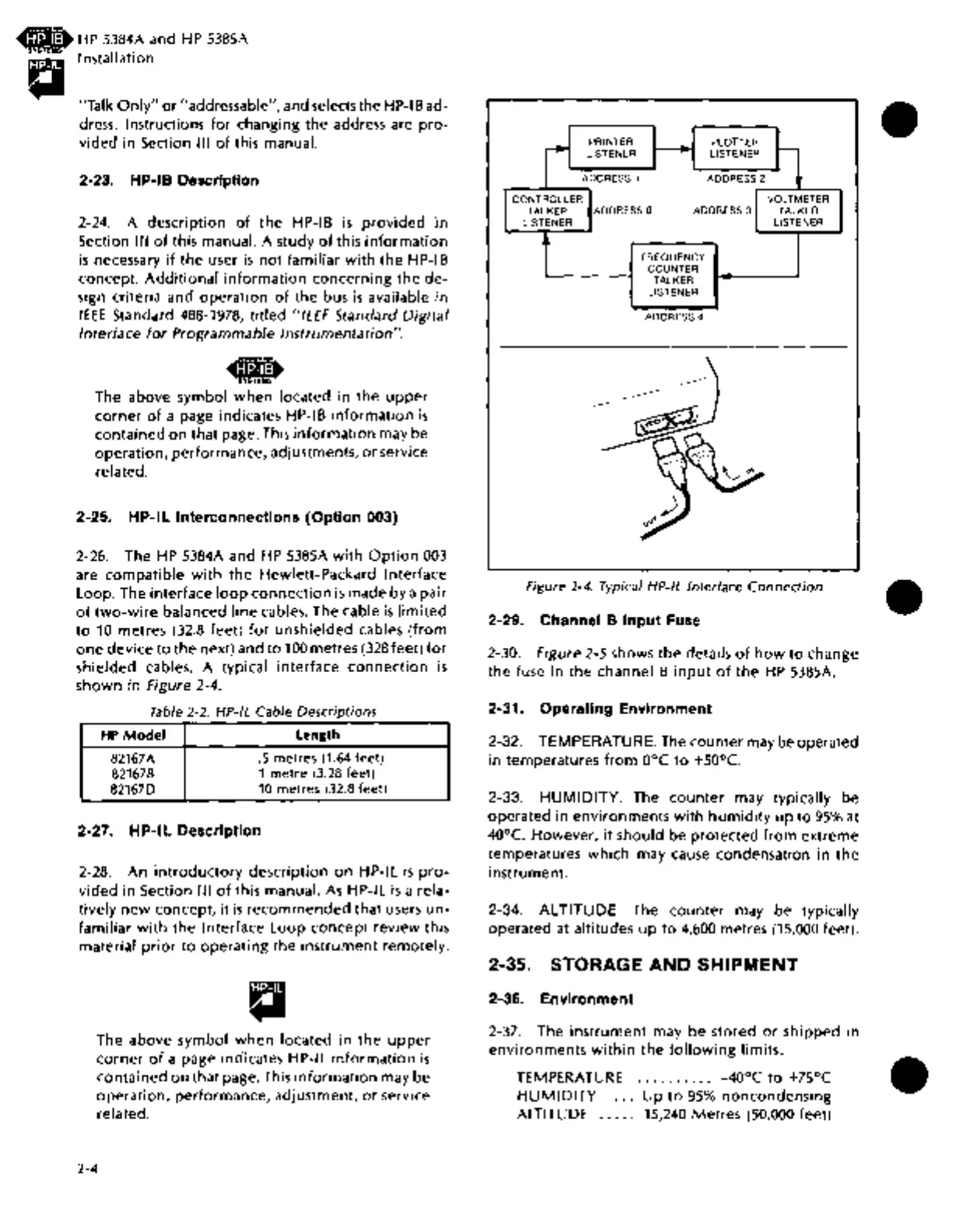

HP
5384A and
HP
5385A
SYSTEMS
a lnstallatoon
"Talk
Only"
or
"addressable~',
and selects the
HP-1
8 ad-
dress.
Instructions
for
changing the address are
pro-
vided in Section
Ill
of
this manual.
2-23. HP-18 Description
2-24. A description
of
the
HP-18
is
provided
in
Section
Ill
of
this manual. A study
of
this
information
is
necessary
if
the user
is
not
familiar
with
the
HP-18
concept.
Additional
information
concerning
the
de-
sign criteria and
operation
of
the
bus
is
available
in
IEEE
Standard 488-1978,
titled
"IEEE Standard
Digital
Interface
for
Programmable
Instrumentation"
.
.
""""""''""
#Ill:~
SYSTEMS
The above symbol
when
located in the
upper
corner
of
a page indicates HP-18
information
is
contained
on
that page. This
information
may be
operation,
performance,
adjustments,
or
service
related.
2-25. HP-IL
Interconnections
(Option
003)
2-26. The HP 5384A and
HP
5385A
with
Option
003
are
compatible
with
the
Hewlett-Packard
Interface
loop.
The interface
loop
connection
is
made by a
pair
of
two-wire
balanced
line
cables. The cable
is
limited
to
10 metres (32.8 feet)
for
unshielded cables
(from
one
device
to
the
next) and
to
100 metres
(328
feet)
for
shielded cables. A typical interface
connection
is
shown in Figure 2-4.
Table 2-2. HP-IL Cable Descriptions
HP
Model
Length
82167A
.5
metres (1.64 feet)
821678
1
metre
(3.28 feet)
821670
10
metres (32.8 feet)
2-27. HP-IL Description
2-28.
An
introductory
description
on
HP-Il
is
pro-
vided
in
Section
Ill
of
this manual.
As
HP-Il
is
a rela-
tively
new
concept,
it
is
recommended
that
users
un-
familiar
with
the
Interface
loop
concept
review this
material
prior
to
operating
the
instrument
remotely.
The above symbol
when
located
in
the
upper
corner
of
a page indicates
HP-Il
information
is
contained
on
that
page. This
information
may be
operation,
performance,
adjustment,
or
service
related.
2-4
PRINTER
LISTENER
FREQUENCY
COUNTER
TALKER
LISTENER
ADDRESS
4
Figure
2-4.
Typical HP-IL Interface
Connection
2-29. Channel B
Input
Fuse
2-30. Figure 2-5 shows
the
details
of
how
to
change
the
fuse
in
the
channel 8
input
of
the
HP
5385A.
2-31. Operating Environment
2-32. TEMPERATURE. The counter may be operated
in
temperatures
from
0°C
to
+50°C.
2-33.
HUMIDITY.
The
counter
may typically be
operated in
environments
with
humidity
up
to
95%
at
40°C. However,
it
should be
protected
from
extreme
temperatures
which
may cause condensation in
the
instrument.
2-34. ALTITUDE. The
counter
may be typically
operated at altitudes
up
to
4,600
metres
(15,000
feet).
2-35. STORAGE
AND
SHIPMENT
2-36. Environment
2-37. The
instrument
may be stored
or
shipped
in
environments
within
the
following
limits:
TEMPERATURE
..........
-40°C
to
+75°C
HUMIDITY
Up
to
95%
noncondensing
ALTITUDE
.....
15,240
Metres
(50,000 feet)
