NMS login example

Network requirements

Configure the device and network management station so you can remotely manage the device through

SNMPv3.

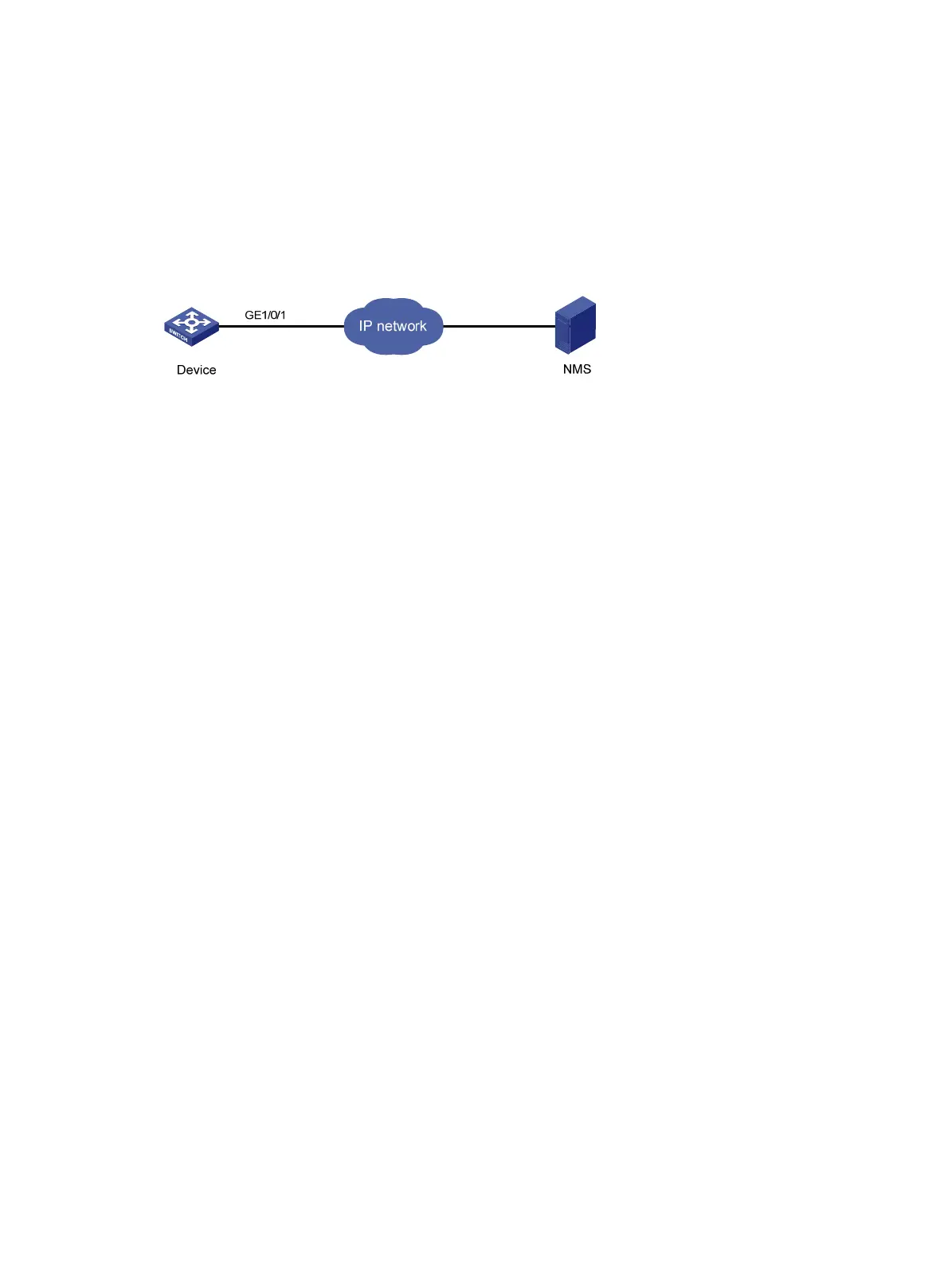

Figure 22 Network diagram

Configuration procedure

1. Configure the device:

# Assign an IP address to the device. Make sure the device and the NMS can reach each other.

(Details not shown.)

# Enter system view.

<Sysname> system-view

# Enable the SNMP agent.

[Sysname] snmp-agent

# Configure an SNMP group.

[Sysname] snmp-agent group v3 managev3group

# Add a user to the SNMP group.

[Sysname] snmp-agent usm-user v3 managev3user managev3group

2. Configure the NMS:

Make sure the NMS has the same SNMP settings, including the username as the device. If not, the

device cannot be discovered or managed by the NMS.

Use the network management station to discover, query, and configure the device. For more

information, see the NMS manual.
