Multi-pin

Connectors

AUXILIARY INTERFACE This connector provides special control signals used in master/slave interface

operation with another source, and in other special-purpose applications. This

connector is a

25-pin

D-subminiature receptacle located on the rear panel.

AUXILIARY INTERFACE

SOURCE SYNCHRONIZATION

CABLE

(HP P.N. 8375040059)

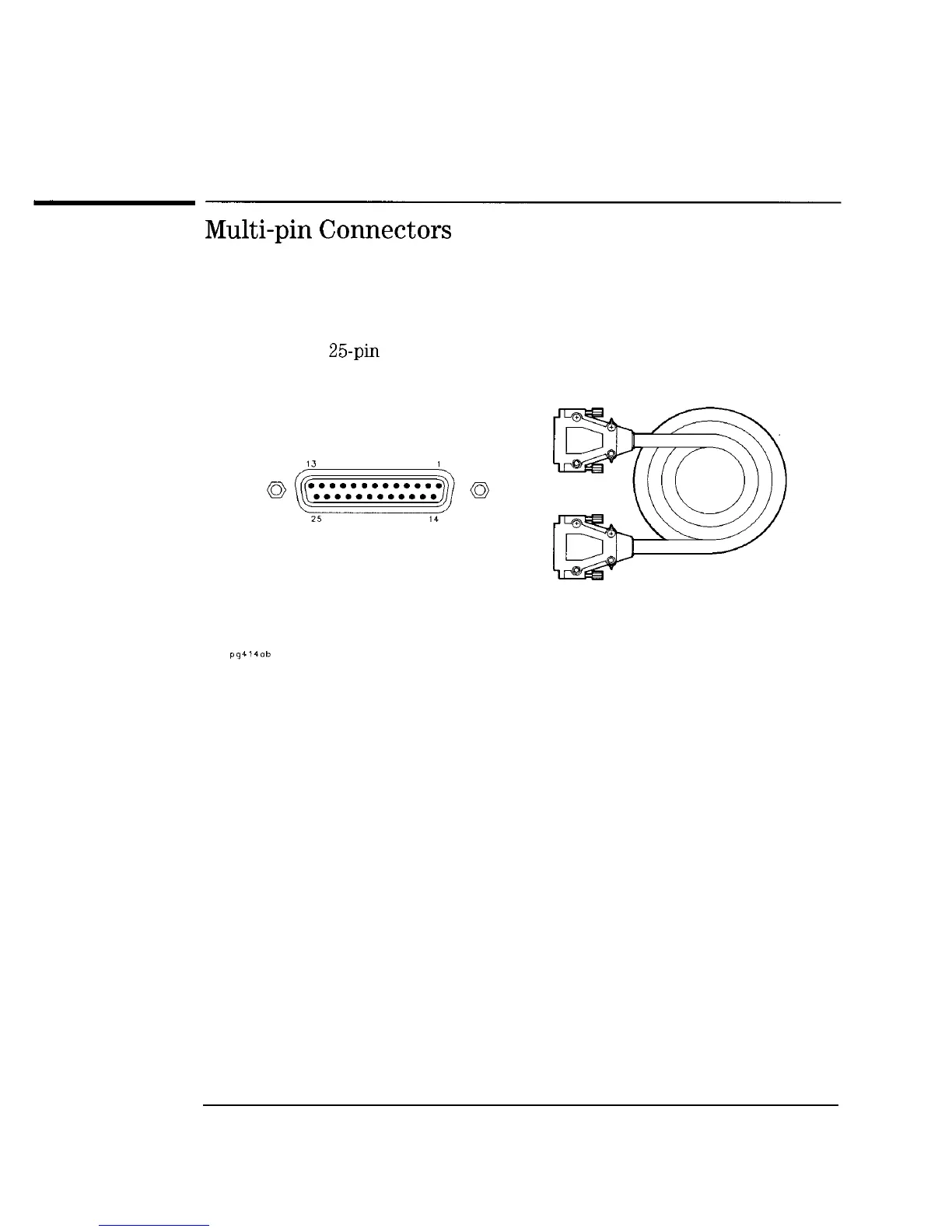

Figure 7-3. Auxiliary Interface Connector
